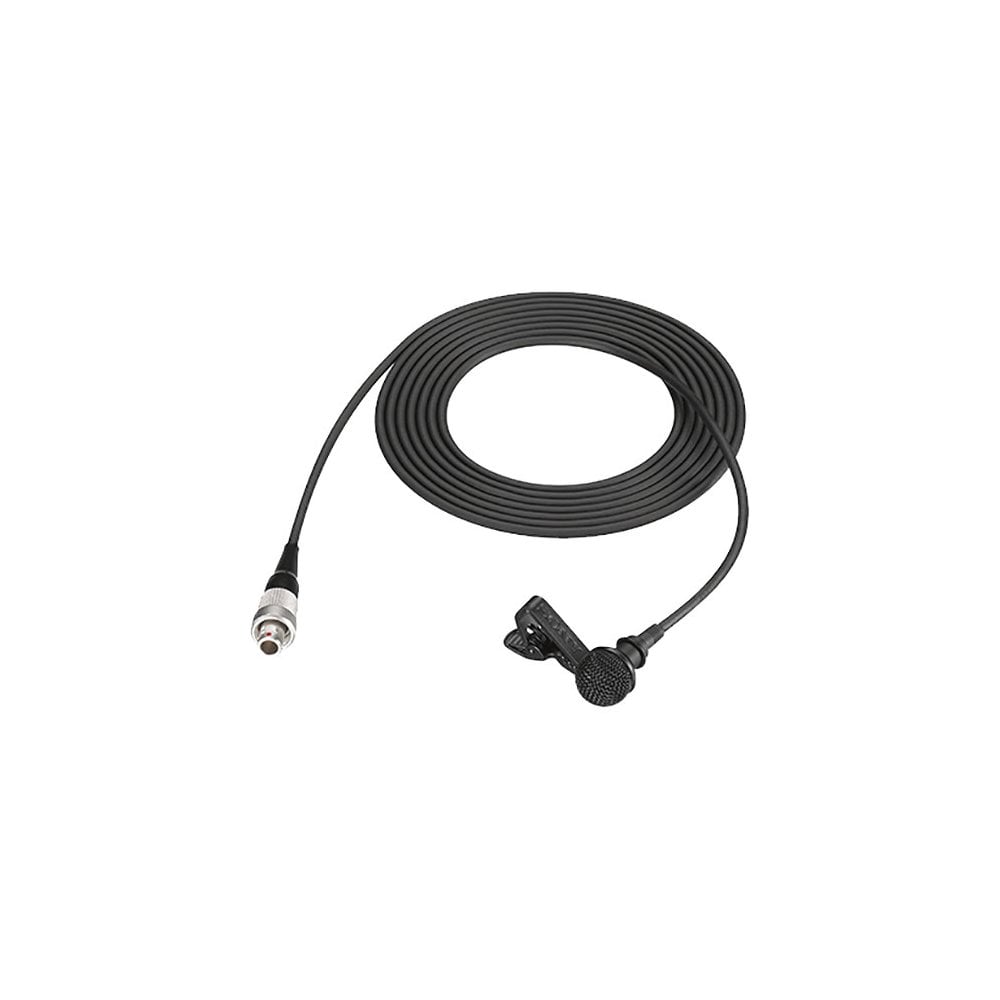

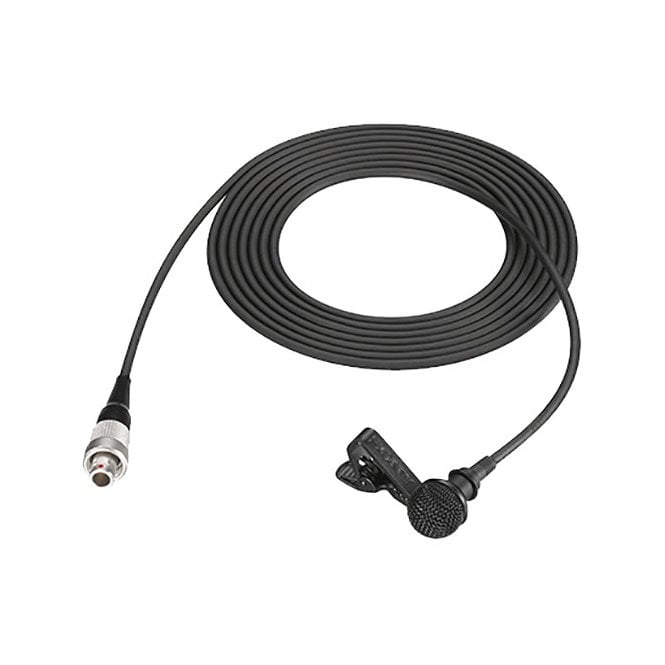

Sony ECM-77LM Miniature Omni-Directional Electret Condenser Microphone

Sony ECM-77LM (ECM/77LM, ECM_77LM, ECM 77LM, ECM77LM, ecm-77lm) Miniature Omni-Directional Electret Condenser Microphone

Lavalier mic with excellent sound quality, ideal for use with DWT-B03R wireless transmitter

The Sony ECM-77 miniature lavalier microphone is seen in daily use on TV shows around the world, and is an equally familiar sight in both studio-based productions and on location.

A discreet 'hands-free' alternative to handheld microphones, its popularity is due to a combination of excellent sound quality, robust construction and an attractive cosmetic design. The miniature design of the ECM-77 makes it easy to conceal in a stage performer's costume.

The electret condenser microphone's omni-directional capsule is optimised for clear speech pick-up, with an extended frequency response, impressive sensitivity and low handling noise.

Featuring a 3-pin Lemo connector, this ECM-77LM version is an ideal partner for use with the DWT-B03R DWX Series digital wireless microphone bodypack transmitter.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 40 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity *[1] [7]: -39.0 dB
• Output Impedance *[2] [7]: 6.3k Ω ± 30%, Unbalanced
• Dynamic Range: 95 dB or more
• Signal-to-Noise Ratio *[3]: 64dB (typ.)
• Inherent Noise *[4]: 32 dB SPL or less
• Induction Noise From External Magnetic Field *[5]: 5 dB SPL or less
• Wind Noise *[6]: 40 dB SPL or less (with windscreen)
• Maximum Input Sound Pressure Level *[7]: 127 dB SPL

General Section

• Connector: Small 3-pin connector

Mic Cable:

• 5.25 feet
• 1.6 m

• Power Requirements: DC 3.0 V to 10.0V
• Power Consumption: 0.4 mA or less

Dimensions *[8]:

• φ5.6 X 12.5 mm (Mic head)
• φ1/4 X 1/2 inches (Mic head)

Mass:

• Approx. 1.5 g (without cable)
• Approx. 0.053 oz (without cabl

In the box

• Sony ECM-77LM Miniature Omnidirectional Electret Condenser Microphone
• Horizontal Tie Clip
• Metal-Mesh Windscreen
