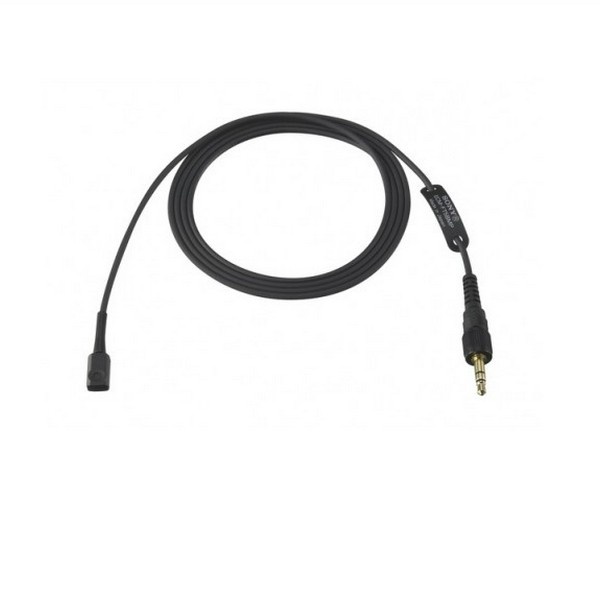

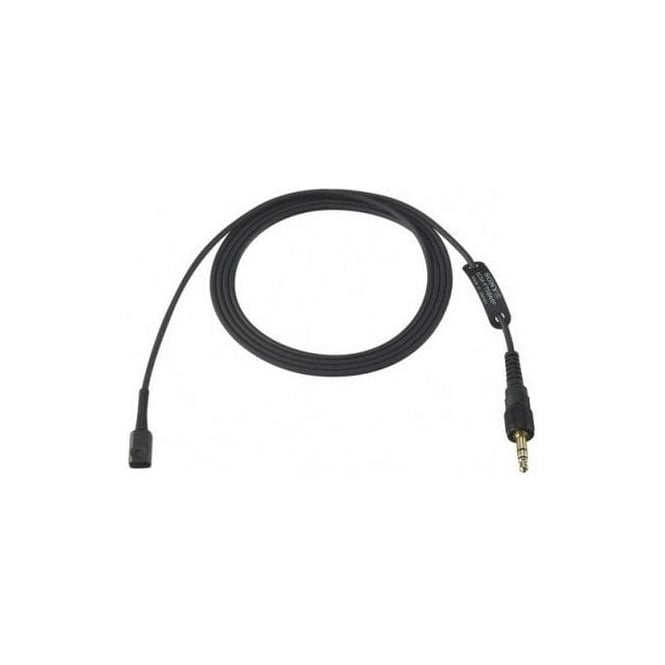

Sony ECM-FT5BC Flat-Shape Electret Condenser Lavalier Microphone with 4-Pin Connector

Sony ECM-FT5BC (ECM/FT5BC, ECM_FT5BC, ECMFT5BC, ECM FT5BC, ecm-ft5bc) Flat-Shape Electret Condenser Lavalier Microphone with 4-Pin Connector

Omni-directional flat shape lavalier microphone for use with DWX and WL-800 Series wireless systems

The ECM-FT5BC is an easy-to-hide flat-shape Electret condenser lavalier microphone delivering excellent sound reproduction in a stylist, ultra-miniature unit. The ECM-FT5BC is supplied with a Sony 4-pin connector (SMC9-4P), for use with DWX and WL-800 Series wireless systems. The water-resistant microphone is supplied with useful accessories, such as a tie clip, taping mount and windscreen, making it ideal for a variety of applications where a discreet microphone system is required.

Flat shape makes it easy to hide

The slim 4.9-mm profile of the ultra-miniature ECM-FT5BC is designed to be easily concealed under clothing, and its sleek contours help prevent noise pick-up from garments.

Durable metal body blocks interference

Unique to Sony, the metal body of Sony’s ECM-FT5BC offers increased durability and improved audio quality by blocking vibration and resonance. Another advantage of the metal construction is it shields the microphone, blocking RF noise interference.

Professional quality sound reproduction

The ECM-FT5BC has a frequency response of 40 Hz to 20 kHz, sensitivity of -43 dB and an inherent noise level of less than 26 dB SPL.

Water-resistant design

A moisture repellent screen covers the microphone aperture to help prevent sweat and dampness from entering the case.

4-pin connector

The ECM-FT5BC is supplied with a Sony 4-pin connector (SMC9-4P), for use with DWX and WL-800 Series wireless systems.

Tie clip and taping mount for attaching to clothing

A tie clip attaches the microphone to clothing by clipping on a pocket, button-hole or other suitable parts of a garment. A taping mount can attaches the microphone directly to the fabric’s surface.

Windscreen

A small windscreen is used to suppress strong wind noise.

Carrying case

The supplied case can be used for the ECM-FT5BC and its accessories.

• Type: Back electret condenser microphone
• Frequency Response: 40 Hz to 20 kHz
• Dynamic Range: 108 dB (typ)
• Directivity: Omni-directional
• Sensitivity: -43 dB (0 dB=1 V/Pa, 1kHz)
• Signal-to-noise Ratio: 68 dB (typ) (IEC 179 A-weighted, 1 kHz, 1 Pa)
• Inherent Noise: 26 dB SPL (typ) (0 dB SPL=2x10 -5 Pa)
• Wind Noise: 45 dB SPL or less (with wind screen), 65 dB SPL or less (without wind screen)
• Maximum Input Sound Pressure Level: 134 dB SPL (typ)
• Output connector: Sony SMC9-4P type, Voltage 1.1-10 V
• Power Consumption: 0.2 mA or less
• Operating Temperature: 0 C to 50 C degrees
• Storage Temperature: -20 C to 60 C degrees
• Dimensions (WxDxH): 0.4 cm x 0.7 cm 1.4 cm
• Weight: 0.001 kg

In the box

• Sony ECM-FT5BC Back Electret Condenser Lavalier Microphone
• Carrying Case
• Windscreen
• Tie Clip
• Taping Mount
