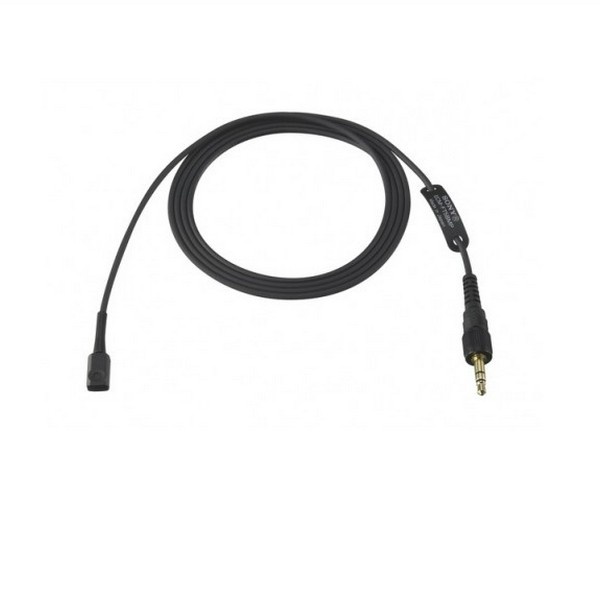

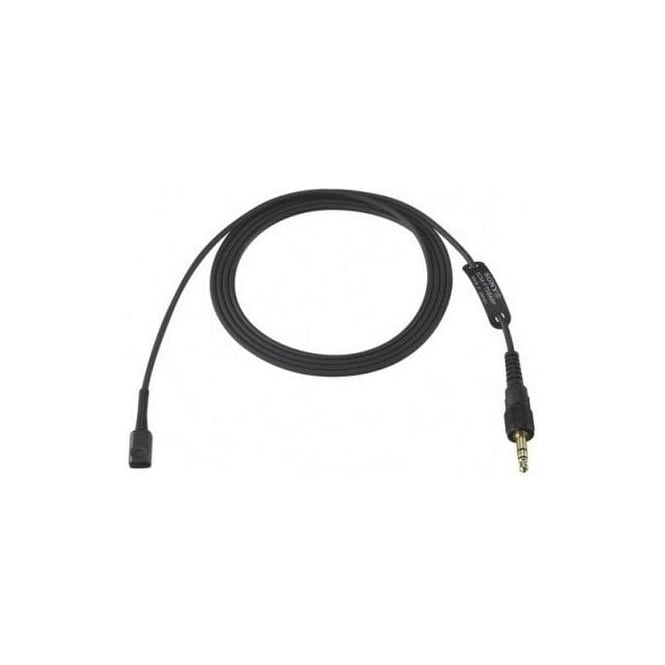

Sony ECM-FT5BMP Back Electret Condenser Lavalier Microphone

Sony ECM-FT5BMP (ECM/FT5BMP, ECM_FT5BMP, ECM FT5BMP, ECM-FT5-BMP, ECMFT5BMP, ecm-ft5bmp) Back Electret Condenser Lavalier Microphone

The Sony ECM-FT5BMP Back Electret Condenser Lavalier Microphone features an omnidirectional polar pattern, wide frequency response and BMP type connection for use with compatible wireless lavalier bodypack transmitters. The capsule's unobtrusive yet rugged metal construction features a flat shape for easy concealment underneath clothing. The microphone is shipped with a windscreen, tie clip and taping mount.

General

• Type: Back electret condenser microphone
• Voltage: 1.1-10 V
• Power consumption: 0.2 mA or less
• Output connector: ECM-FT5BC: Sony SMC9-4P type
• ECM-FT5BMP: TRS connector
• (3.5 dia.) with lock
• ECM-FT5B: with XLR connector
• Dimensions: 4.9 x 7.6 x 14 mm (7/32 x 5/16 x 9/16 in.) (microphone unit)
• Mass: 1.7 g (0.06 oz.) (excluding cable and connector)
• Supplied accessories: Wind screen (1), Tie clip (1), Taping mount (1), Carrying case (1), Operating instructions (1)

Performance

• Frequency response: 40 Hz to 20 Hz
• Directivity: Omni-directional
• Output impedance: 1.2 kΩ ±20%, unbalanced
• Sensitivity: -43 dB (0 dB=1 V/Pa, 1 kHz)
• Signal-to-noise ratio: 68 dB (typ) (IEC 179 A-weighted, 1 kHz, 1 Pa)
• Inherent noise: 26 dB SPL (typ) (0 dB=2x10-5 Pa)
• Wind noise*: 45 dB SPL or less (with wind screen)
• 65 dB SPL or less (without wind screen)
• Maximum input sound pressure level: 134 dB SPL (typ)
• (input level for 3% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2x10-5 Pa)
• Dynamic range: 108 dB (typ)
• Operating temperature: 0 °C to +50 °C (32 °F to 122 °F)
• Storage temperature: -20 °C to +60 °C (-4 °F to +140 °F)

In the box

• Sony ECM-FT5BMP Back Electret Condenser Lavalier Microphone
• Carrying Case
• Windscreen
• Tie Clip
• Taping Mount
