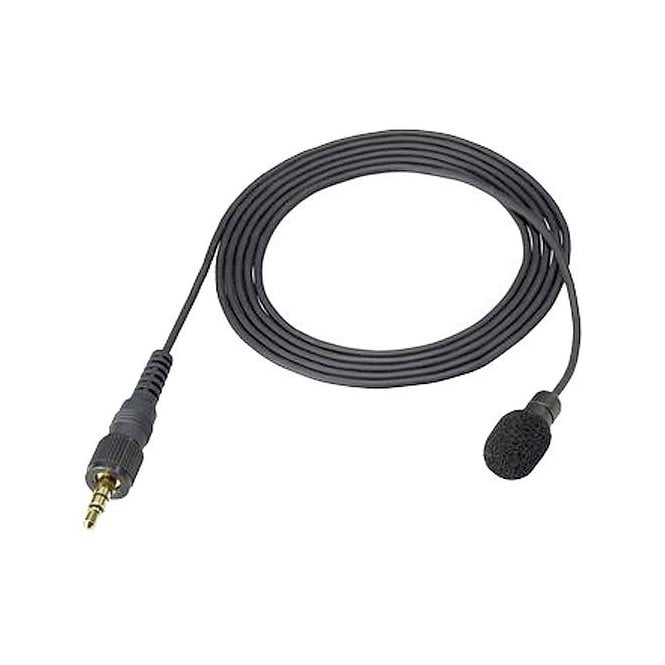

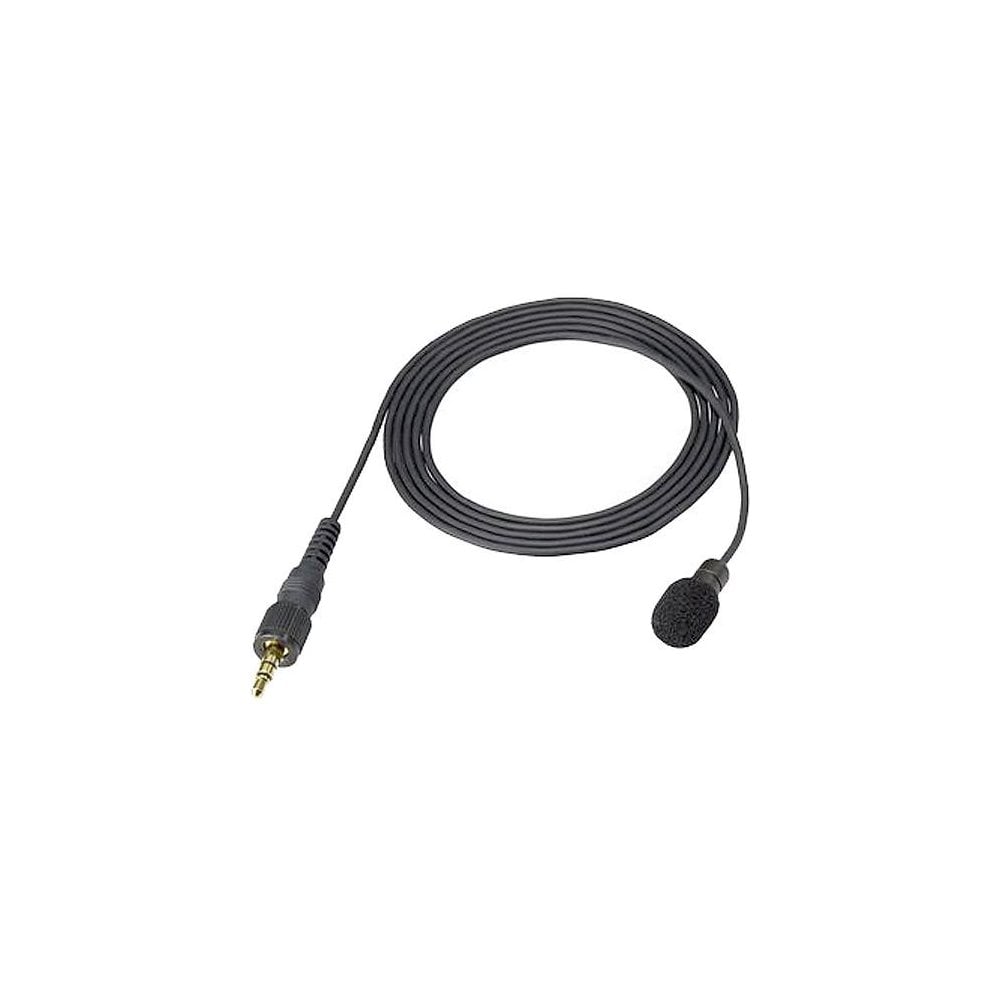

Sony ECM-V1BMP Lavalier Electret Condenser Microphone

Sony ECM-V1BMP (ECM/V1BMP, ECM_V1BMP, ECM V1BMP, ECMV1BMP, ecm-v1bmp) Lavalier Electret Condenser Microphone

The Sony ECM-V1BMP Electret Condenser Lavalier Microphone is intended for use with the UWP series bodypack transmitters. The microphone features a 1/8" (3.5mm) mini connection and omnidirectional polar pattern.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 40 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity *[1]: -43.0 ±3 dB
• Output Impedance *[2]: 1.2kΩ±30%, Unbalanced
• Dynamic Range: 86 dB or more
• Signal-to-Noise Ratio *[3]; 60 dB or more
• Inherent Noise *[4]: 34 dB SPL or less
• Maximum Input Sound Pressure Level *[5]: 120 dB SPL

General Section

• Connector: BMP type. Supplied with o3.5 mm, 3-pole mini plug.
• Mic Cable: 3.9 feet, 1.2 m
• Power Requirements: DC 5 V
• Power Consumption: 0.2 mA or less
• Dimensions *[6]: φ9/32 x 25/32 inches, φ6.8 x 19.5 mm
• Mass: Approx. 16.2 g, Approx. 0.57 oz

In the box

• Sony Electret Condenser Lavalier Microphone
• Urethane type windscreen (3)
• Single/horizontal type tie clip (1)
