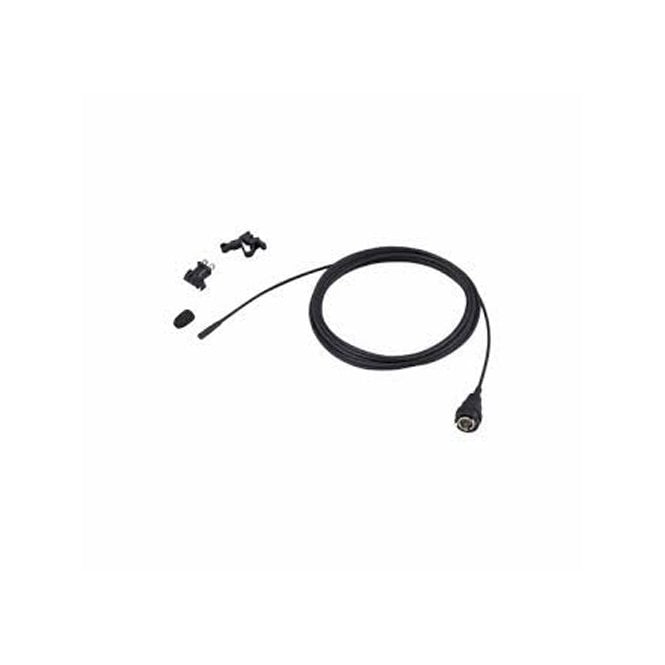

Sony Miniature Omni-Directional Miniature Lavalier (tie-clip) Microphone

Sony ECM-88BC (ECM_88BC, ECM/88BC, ECM 88BC) Miniature Omni-Directional Miniature Lavalier (tie-clip) Microphone

The Sony ECM 88BC is a miniature condenser, lavalier microphone with a 4-pin Hirose connection. The 4-pin connector enables use with Sony WRT-822B and WRT-8B bodypack transmitters. The capsule is 3.5 x 3.5 x 16.8mm, allowing natural-looking concealment on stage or camera. The electret condenser element uses a dual-diaphragm mechanism, resulting in high sensitivity.

The microphone provides a flat, wide frequency response (20Hz to 20kHz) resulting in a natural sound reproduction, capturing in great detail. The water resistant design assures durability from the elements as well as moisture caused by sweat in stage applications.

Miniature Design

• The microphones ultra-miniature design provides the level of concealment needed for the stage and on camera.

4-pin Hirose Connection

• The 4-pin connector enables use with Sony WRT-822B and WRT-8B bodypack transmitters.

High Sonic Character

• The condenser element provides a wide, flat frequency response and high dynamic range resulting in clean, quiet recordings.

Water Resistant

• The microphone is designed to resist moisture caused by the elements or sweat.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 20 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity: -39.0 dB (11.2 mV)
• Output Impedance: 2.5kΩ±30%, Unbalanced
• Dynamic Range: 99 dB or more
• Signal-to-Noise Ratio: 68 dB or more
• Inherent Noise: 26 dB SPL or less
• Induction Noise From External Magnetic Field: 5 dB SPL or less
• Wind Noise: 45 dB SPL or less (with supplied windscreen)
• Maximum Input Sound Pressure Level: 125 dB SPL

General Section

• Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector
• Mic Cable Length: 3.9 feet, 1.2 m
• Power Requirements: DC 1.1 V to 10.0 V
• Power Consumption: 0.4 mA or less
• Dimensions: φ5/32 x 11/16 inches (Mic head), φ3.5 x 16.8 mm (Mic head)
• Mass: Approx. 0.7 oz, Approx. 0.5 g
• Supplied Accessories: Urethane type windscreen (1), Single/vertical type tie clip (1), Single/horisontal type tie clip (1), Operating instructions (1), Ferrite clamp (1)

In the box

• 1 x Sony ECM-88BC
• 1 x Horizontal Clip
• 1 x Vertical Clip
• 1 x Urethane windscreen
• 1 x Carrying Case
