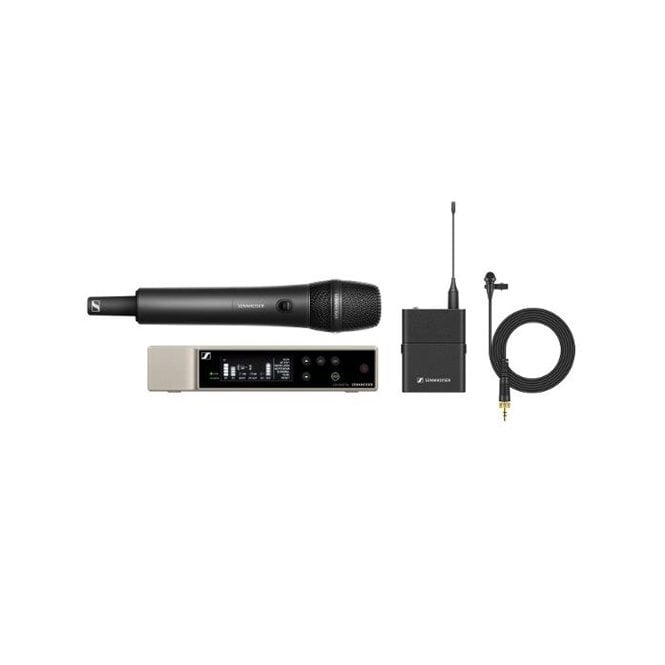

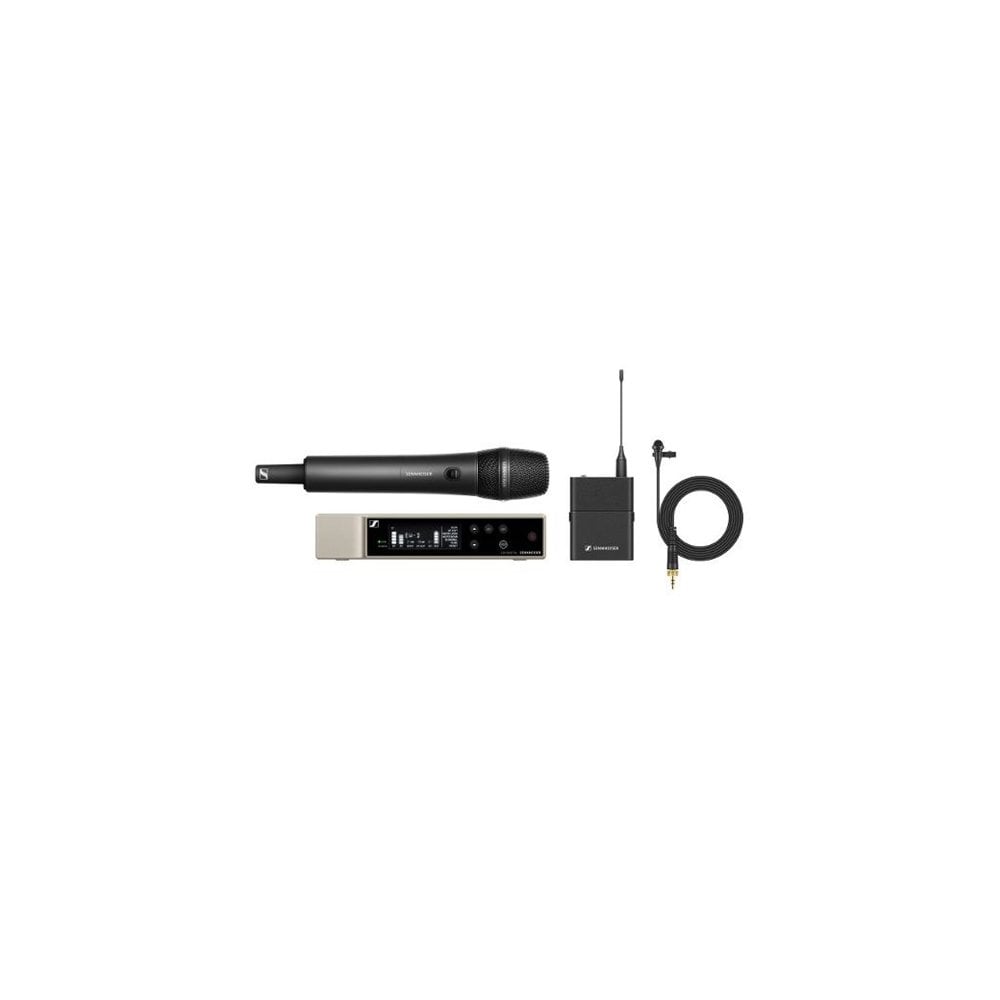

Sennheiser EW-D ME2/835-S SET (S1-7) 606.2 - 662 MHz
Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Dimensions 212 x 44 x 189 mm
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
405 x 350 x 73 mm
Sound pressure level (SPL) 154 dB
Transducer principle dynamic
pre-polarized condensor microphone
Weight approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)
3.1 kg
approx. 1000 g (without antennas and power supply)
Pick-up pattern cardioid
omni-directional
Power supply 2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
7.5 V
Current consumption < 300 mA
≤ 300 mA
Input voltage range 2.0 - 4.35 V
11 - 13 V ⎓
Sensitivity 2.1 mV/Pa
Transmission power Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
Connector 3.5 mm jack
Frequency response 50 to 18,000 Hz
Max. sound pressure level 130 dB
THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level
Cable length approx. 1.60 m
Sensitivity in free field, no load (1kHz) 17 mV/Pa
Equivalent noise level 32 dB
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity 5 - 95 % (non-condensing)
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio output level 18 dBu max.
In the box;
1 x Sennheiser EW-D ME2/835-S SET (S1-7)
