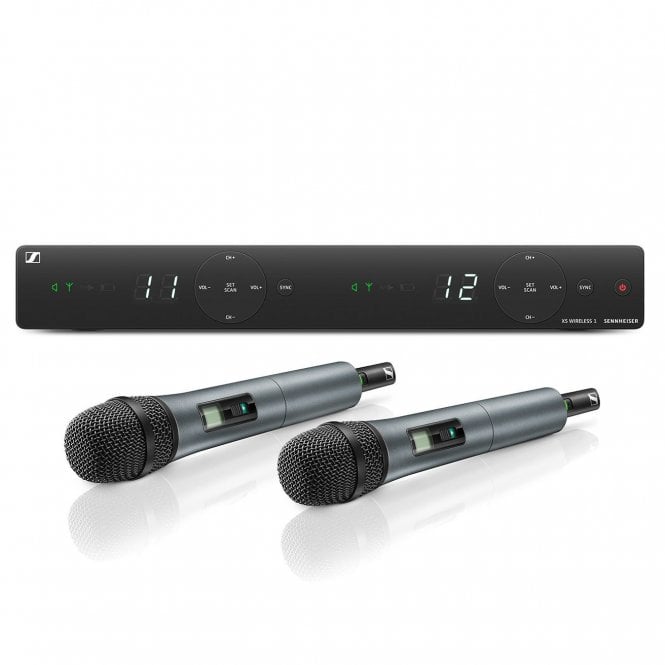

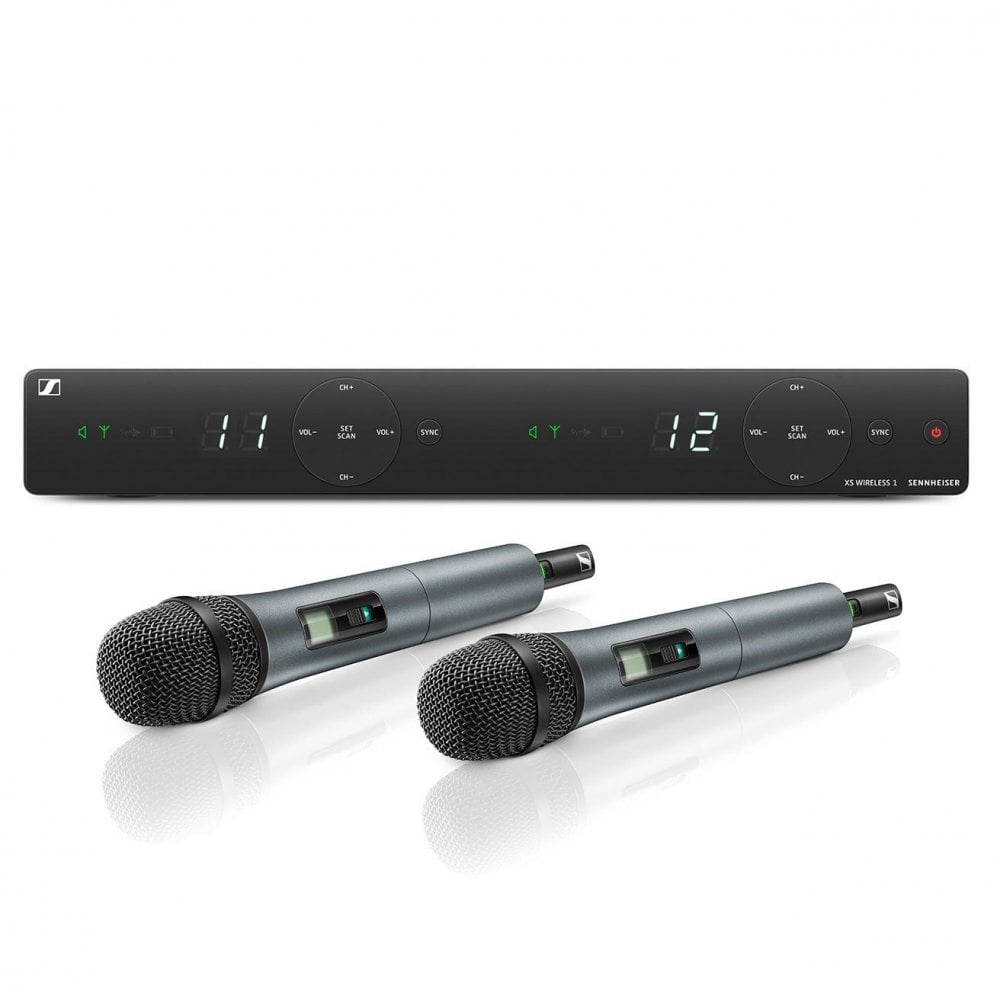

Sennheiser XSW 1-825 DUAL-B Band Vocal

code: 508264
  • £386.10
  • RRP: £365.83
Status | Usually dispatched within 24 hours
Loading...

Features

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


Sennheiser 508264 (508 264, 508/264, 508-264, 50-82-64) (XSW-1-825 DUAL-B, XSW/1-825 DUAL-B, XSW1-825 DUAL-B) XSW 1-825 DUAL-B Band Vocal

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

  • Frequency range: 548-572 MHz

                                    614–638 MHz

                                    766-790 MHz

                                    794-804 MHz

                                    821-832 / 863-865 MHz

                                    606-630 MHz

                                    925-937.5 MHz

  • Dimensions: Ø 48 x L 180 mm
  • Connector: XLR-3
  • Frequency response: 55 - 16,000 Hz
  • THD, total harmonic distortion: ≤ 0.9%
  • Transducer principle: dynamic
  • Weight: 330 g (0.73 lbs)
  • Pick-up pattern: cardioid
  • Nominal impedance: 300 Ω (at 1 kHz)
  • Min. terminating impedance: 1 kΩ
  • Storage temperature: –20°C to +70°C
  • Operating temperature: 0°C to +40°C
  • Signal-to-noise ratio: ≥ 103 dBA
  • Switching bandwidth: Up to 24 MHz
  • Modulation: Wideband FM
  • Frequency: 80 factory presets (8 banks of 10 channels each)
  • Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
  • Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
  • Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)
EM-XSW 1 DUAL
  • Dimensions: approx. 320 x 126.5 x 42 mm
  • Weight: approx. 620 g
  • Power supply: 12 V DC nom. / 300 mA
  • Output voltage: (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
  • Housing: Rugged ABS housing
  • Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)
  • Squelch: Adjustable from 3 dBμV to 28 dBμV
  • AF frequency response: 50 to 16,000 Hz (–3 dB)
  • Audio adjustment range: 45 dB, adjustable in 5 dB steps
  • Line / Mic level: 20 dB, switchable
  • Receiver Principle: Double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas
SKM 825-XSW
  • Dimensions: Approx. 260 x 50 mm
  • Microphone: Dynamic
  • Weight: Approx. 245 g
  • Pick-up pattern: Cardioid
  • RF output power: 10 mW
  • Operating time: Approx. 10 hrs
  • Power supply: 2 AA size batteries, 1.5 V
  • Housing: Rugged ABS housing
  • Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
  • Input sensitivity: 1.5 mV / Pa
  • AF frequency response: 80-16,000 Hz

In The Box

  • EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (B: 614–638 MHz )
  • NT 12-5 CW Power Supply
  • 2 x SKM 825-XSW-B Handheld Transmitter with e825 Capsule (B: 614–638 MHz)
  • 2 x MZQ1 Microphone Clamp
Be the first to review Sennheiser XSW 1-825 DUAL-B Band Vocal. Write a review ›
