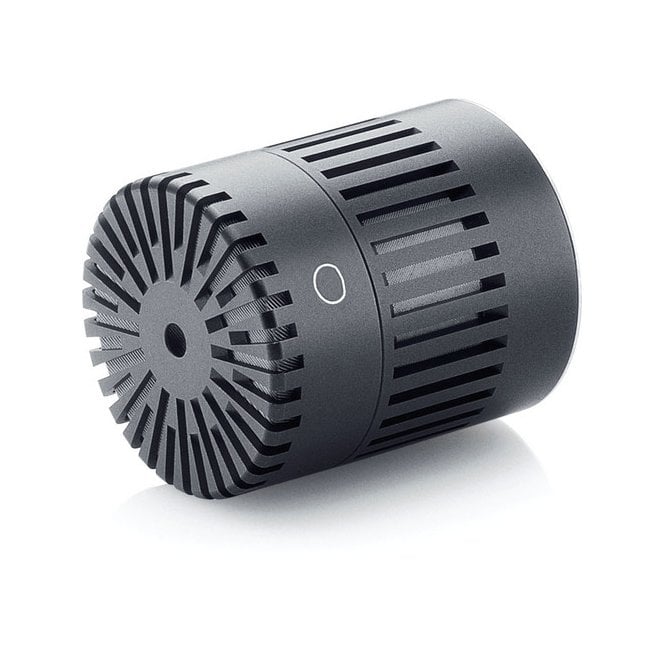

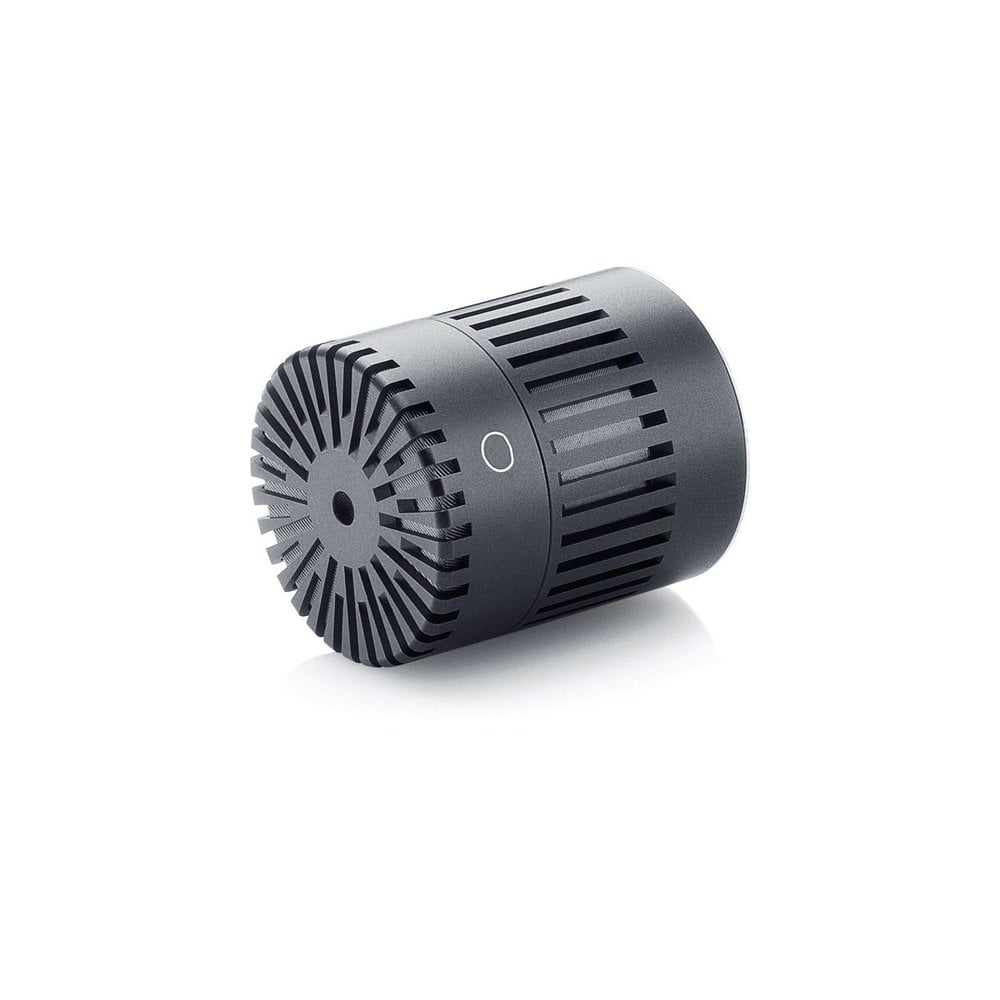

DPA MMC4015 (MMC 4015 MMC-4015 MMC/4015) Wide Cardioid Microphone Capsule
The MMC4015 capsule is part of the flexible DPA d:dicate Recording Microphones series. The 4015A with the MMP-A preamplifier suits acoustic instruments and voices with rich and open sound, where the 4015C with the MMP-C compact preamplifier is an excellent spot mic as a fill-in between an omni and a cardioid â€“ and easier to position.
If you are already a DPA 4011 devotee, you will discover an exciting alternative in our wide cardioid microphones. The MMC4015 wide cardioid capsule differs in its polar pattern and is the perfect fill-in between an omni and a more directional microphone.
Sometimes a conventional cardioid pattern just isnâ€™t quite open enough, such as when recording instruments with complex radiation patterns. In those instances, the generous polar pattern of our wide cardioids allows you to pick up a broader sound field and more accurately capture the full breadth of a stirring performance.
Specifications for d:dicate™ MMC4015 Wide Cardioid Microphone Capsule
|Directional pattern:||Wide cardioid|
|Principle of operation:||Pressure gradient|
|Cartridge type:||Pre-polarized condenser|
|Frequency range:||20 Hz to 20 kHz|
|Frequency range, ± 2 dB:||40 Hz to 20 kHz|
|Sensitivity, nominal, ± 2 dB at 1 kHz:||10 mV/Pa; -40 dB re. 1 V/Pa|
|Equivalent noise level, A-weighted:||Typ. 18 dB(A) re. 20 µPa (max. 20 dB)|
|Equivalent noise level, ITU-R BS.468-4:||Typ. 25 dB|
|S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):||Typ. 76 dB(A)|
|Weight:||18 g (0.6 oz)|
|Diameter:||19 mm (0.75 in)|
|Capsule size:||19 mm (0.75 in)|
|Length:||23 mm (0.9 in)|
|Temperature range:||-40 °C to 45 °C (-40 °F to 113 °F)|
|Relative Humidity (RH):||Up to 90 %|
|Matching tolerance:||± 1 dB|
|Phase deviation for kit:||< 10°|
