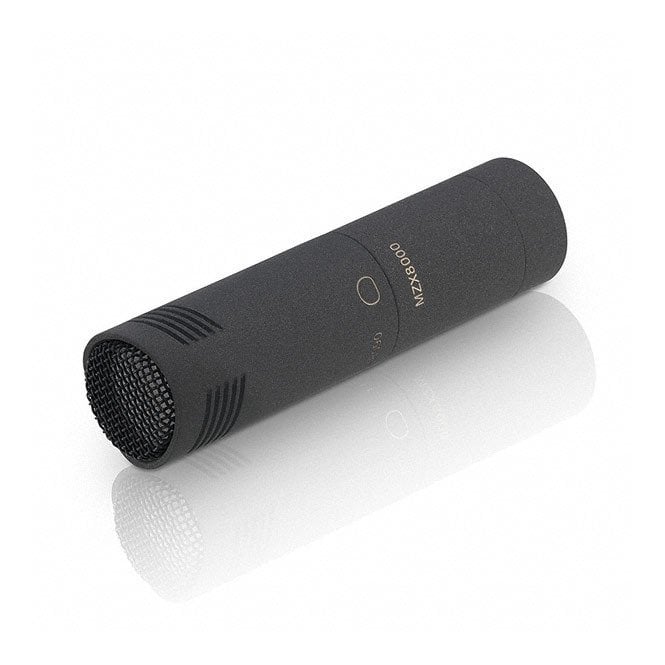

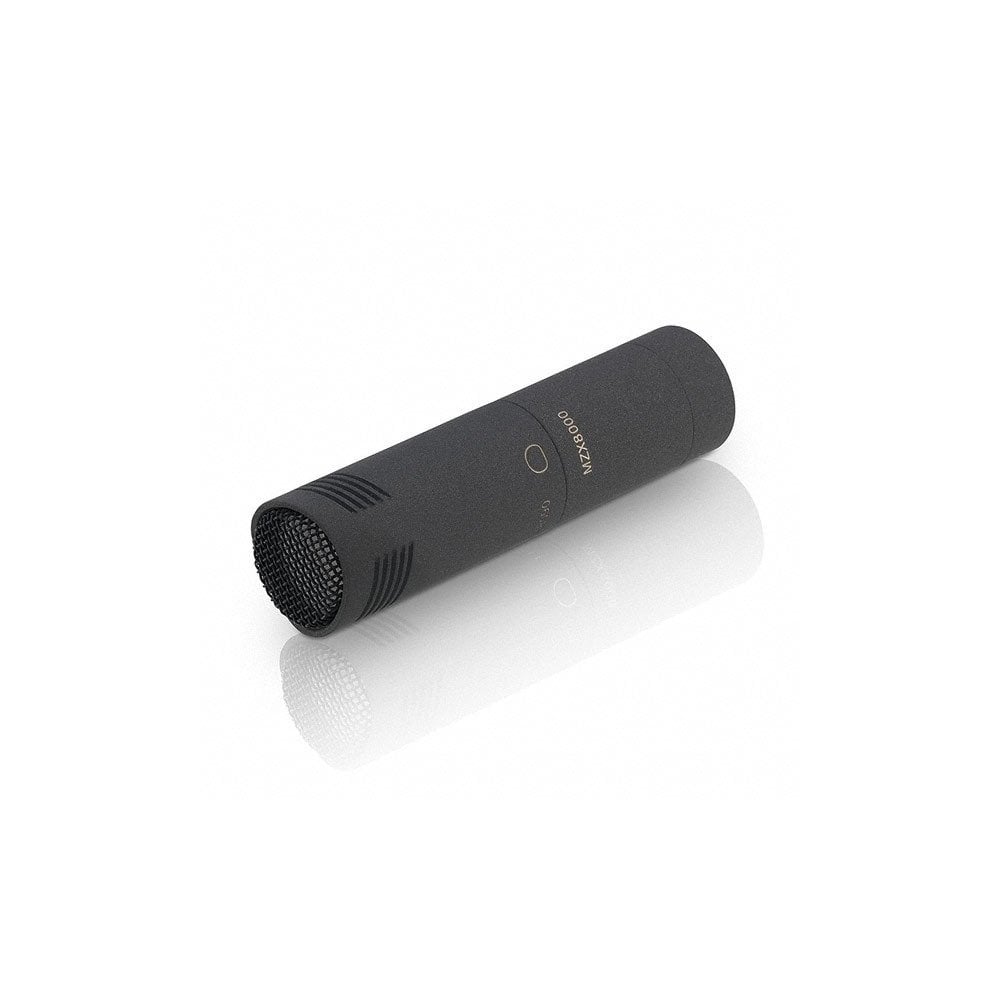

Sennheiser MKH-8090 Compact Wide Cardioid Condenser Microphone

Sennheiser 506294 (506-294, 506/294, 50-62-94, 506 294) (MKH/8090, MKH 8090, MKH 8090) MKH-8090 Compact Wide Cardioid Condenser Microphone

The MKH 8090 is a high-end RF condenser microphone with a wide cardioid pick-up pattern. It is the ideal main microphone when less acoustic impression of space is demanded. As a support microphone it excels in capturing larger groups of instruments. The microphone operates on the RF principle that has been used by Sennheiser for more than 50 years, now brought to the highest level of perfection. Among the many advantages of this principle are an extremely low inherent self-noise, the capability to handle high sound pressure levels without distortion, and a high resistance to adverse climatic conditions.

• Dimensions: diameter 19 mm, length 41 mm (incl. XLR- module MZX 8000: 75 mm)
• Audio-XLR connector: XLR-3M balanced, transformerless, floating
• Frequency response: 30 Hz to 50 kHz
• Transducer principle: RF condenser microphone
• Weight: (incl. XLR-module MZX 8000: 55 g)
• Pick-up pattern: wide cardioid
• Sensitivity in free field, no load (1kHz): 20 mV/Pa (34 dBV/Pa) with filter module MZF 8000: 6,3 mV/Pa ( 44 dBV/Pa)
• Nominal impedance: 25 Ω
• Min. terminating impedance: 2000 Ω
• Phantom powering: 48 V +/- 4 V
• Equivalent noise level: 13 dB(A)
• Equivalent noise level weighted as per CCIR 468-3: 23 dB
• Maximum sound pressure level (passiv): 142 dB SPL with and without filter module MZF 8000
• Current consumption: 3,3 mA

In The Box

• Sennheiser MKH-8090 Compact Wide Cardioid Condenser Microphone
• 2 x MKH 8090 Microphone Head
• 2 x MZX 8000 XLR Module for MKH-8000 Capsules
• 2 x MZQ-8000 Standard Microphone Clip for MKH-8000 Microphones
• 2 x MZW-8000 Windscreen for MKH8000 Series Microphones
