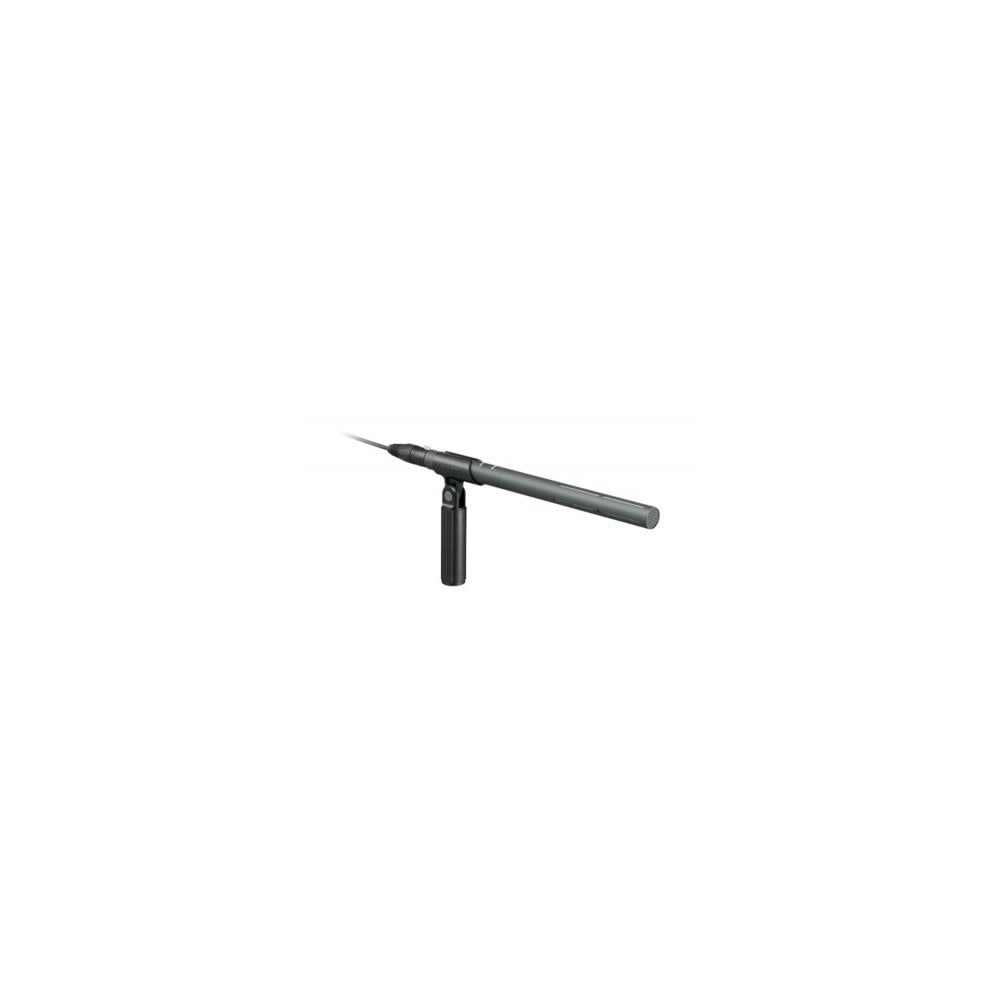

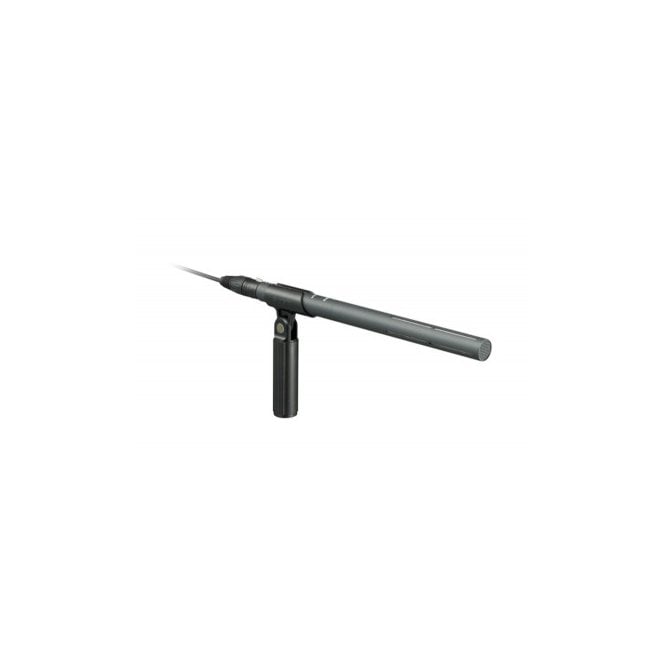

Sony ECM-674 Shotgun Electret Condenser Microphone

Sony ECM-674 (ECM/674, ECM_674, ECM674, ECM 674, ecm-674) Shotgun Electret Condenser Microphone

The Sony ECM-674 Mic is an affordable shotgun-type electret condenser microphone which delivers excellent sound performance in field and studio productions.

Flat-and-wide Frequency Response

• The ECM-674 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and provides sound reproduction that is extremely smooth and natural

Compact and Lightweight Design

• The ECM-674 has been designed as a highly directional compact and lightweight shotgun microphone. It measures only 268 mm (10 5/8 inches) in length and weighs just 185 g (6.5 oz), maintaining good balance even when mounted on compact camcorders.

Built-in Low Cut Filter

• The built-in two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise.

Superb Sound Quality

• The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up even in noisy environments

Two-way Powering

• A two-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation

Built-in Battery Liquid Leakage Protection Circuit

• In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold.

• Capsule Type: Electret condenser
• Directivity: Uni-directional (super-cardioid)
• Frequency Response : 40 Hz to 20 kHz
• Sensitivity (at 1 kHz) : -36 dB(*1) ?3 dB
• Output impedance (at 1 kHz): 220 Ω ?20%
• Dynamic range : Phantom: 107 dB or more, Battery: 98 dB or more
• Signal-to-noise ratio: 77 dB or more (IEC179 A-weighted, 1 kHz, 1Pa.)
• Inherent noise: 17 dB SPL(*2) or less
• Wind noise : 50 dB SPL(*2) or less (with windscreen)
• Induction noise from external magnetic field : 0 dB SPL(*2) or less
• Maximum input sound pressure level: Phantom: 124 dB SPL (*2), Battery: 115 dB SPL (*2)
• Power requirements: External: DC 40 to 52 V, Battery: 1.5 V
• Dimensions: 20 dia. x 268 mm (13/16 dia. x 10 5/8 inches)
• Mass: Approx. 185 g (6.5 oz) without battery , Approx. 208 g (7.3 oz) with battery

In the box

• ECM-674
• Windscreen
• Microphone holder
• Microphone spacer
• Microphone cable
• Operating instructions
