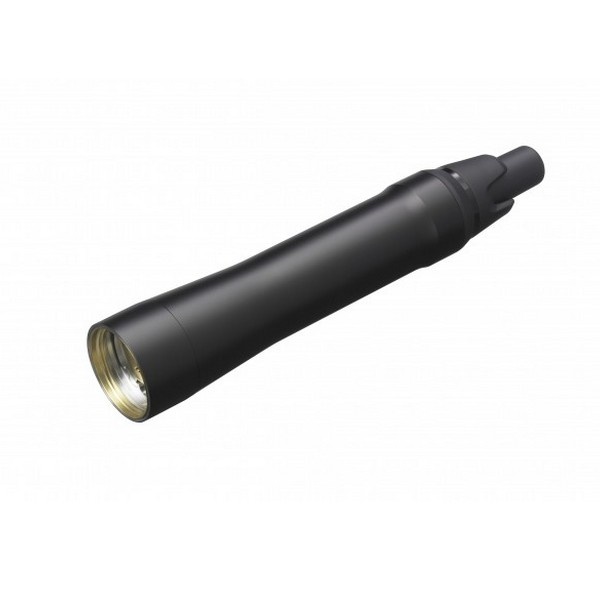

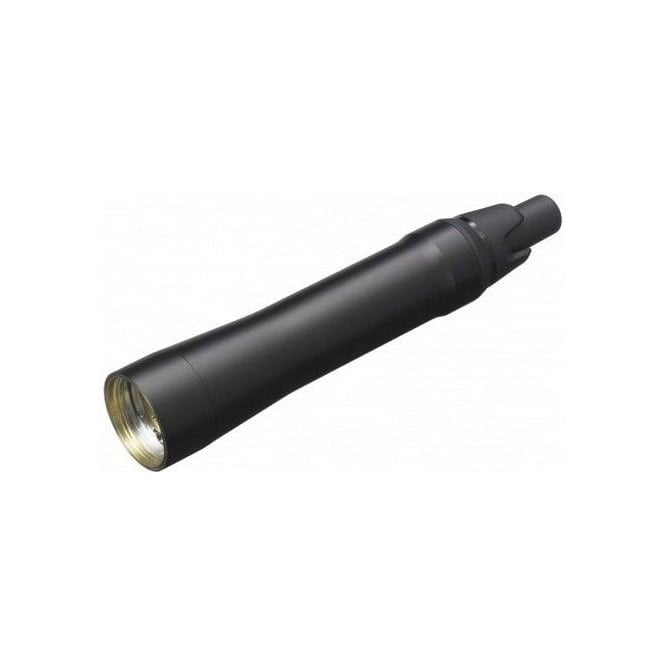

Sony Digital Wireless Microphone with Interchangeable Heads

Sony DWM-02/33 (DWM0233, DWM 0233, DWM/0233) Digital Wireless Microphone with Interchangeable Heads

Part of the DWX Series digital wireless microphone system, the DWM-02 is a handheld digital wireless microphone that works seamlessly with Sonys digital wireless transmitters and receivers with the same frequency range.

Interchangeable head mechanism supports Sony and third party capsules.

The DVM-02 features an interchangeable head/capsule mechanism. Sony supplies three microphone heads – the CU-C31, CU-F31 and CU-F32 – that allow operators to capture sound depending on their requirements. It also supports third party microphone capsules maximising the flexibility for users.

The DVM-02 microphone is suitable for live stage performances and other events, broadcast studios, halls, and theatre applications

Transmitting Section

• Carrier Frequencies: CE33: UHF-TV chs 33-40 566 MHz to 630 MHz
• Oscillator type: Crystal-controlled PLL synthesizer
• RF power output: 1 mW/10 mW/50 mW (e.r.p) selectable
• Antenna type: Helical antenna
• Occupied RF bandwidth: 192 kHz or less
• Audio delay: 1.5 ms
• Allowable deviation of transmission frequency: ±6.5 ppm
• Type of emission: G1E or G1D
• Modulation method: π/4 Shift QPSK

Audio Section

• Maximum input level: –16 dBu (with 0 dB attenuator)
• Audio attenuator adjustment range (pad): 0 to 21 dB (3 dB steps)
• Input impedance: 10 kΩ or more
• Frequency response: 20 Hz to 22 kHz

General

• Operating voltage: 3 V DC, with two LR6 (AA) alkaline batteries
• Battery life: Continuous operating time 5 hours (at 25 °C (77 °F), 10-mW output using Sony LR6 (AA)-size alkaline batteries, with the wireless remote control function off and DIMMER MODE set to AUTO OFF, and with the CU-C31 Sony capsule unit
• mounted)
• Operating temperature: 0 °C to 50 °C, (32 °F to 122 °F)
• Storage temperature: –20 °C to +60 °C, (–4 °F to +140 °F)
• Wireless remote control: 2.4-GHz IEEE802.15.4 compliant
• Dimensions (unit: mm (inches))*2: 37.1 x 194, (1 1/2 x 7 3/4)
• Mass: Approx. 235 g (8 oz) including batteries

In the box

• Transmitter x 1
• ID Ring x 1
• Mic Holder and Stand Adapter x 1
• USB Adapter Cable x 1
• USB Cable x 1
• Carrying Case x 1
• Operating Instructions x 1
