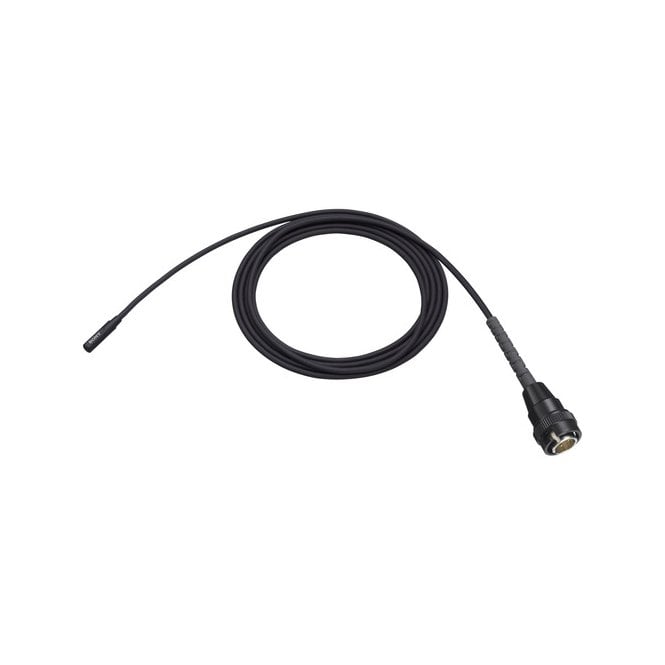

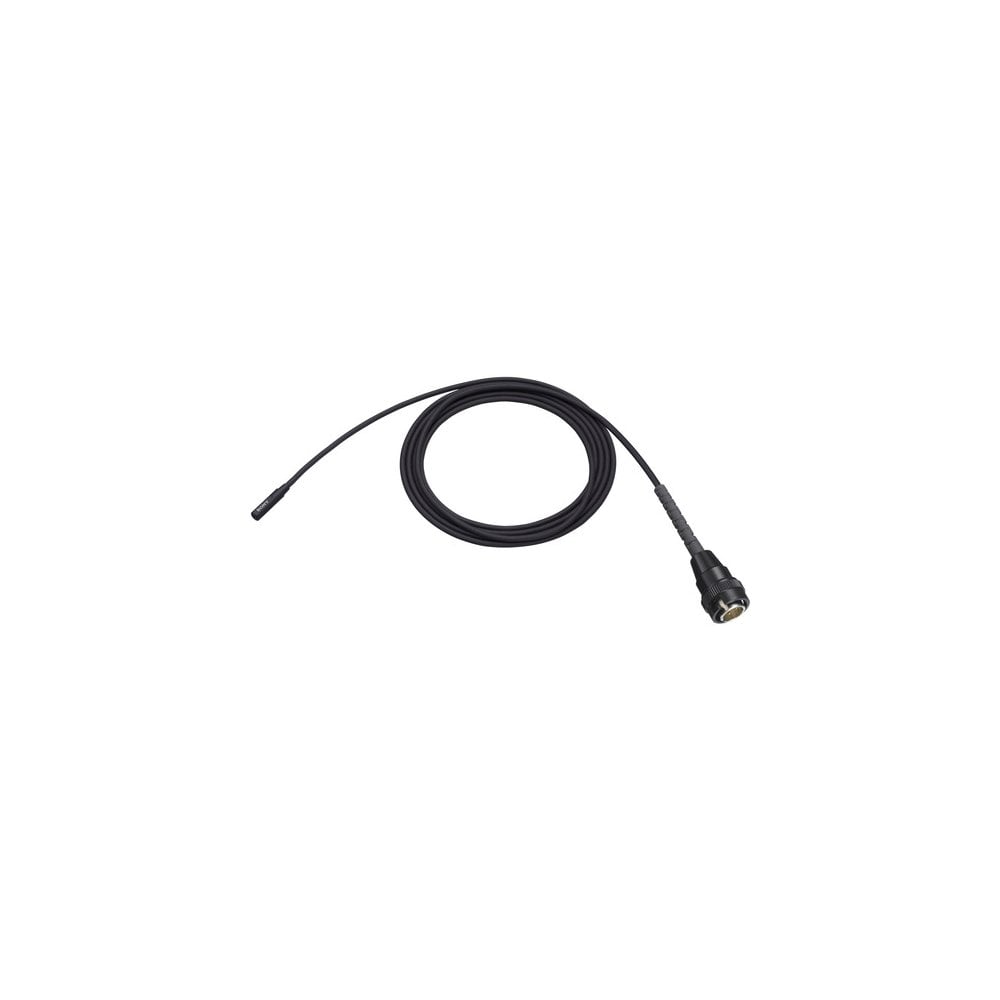

Sony ECM-90BC Electret Condenser Microphone

Sony ECM-90BC (ECM/90BC, ECM_90BC, ECM 90BC, ECM90BC, ecm-90bc) Electret Condenser Microphone

Ultra-miniature, omni-directional electret condenser lavalier microphone designed for quality-critical applications in ENG, Studio, EFP, and Location Sound applications. Dual diaphragm design contributes to high sensitivity, wide dynamic range, and low noise. Generous diaphragm mounting architecture radically reduces common cable noise associated with lavalier microphone designs. Flat and wide frequency response (20Hz – 20kHz) provides natural sound reproduction. Water resistant design maintains sound clarity in almost any application or environment. Shielded for use with digital wireless transmitters.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 20 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity *[1]: －38 dB (12.6mV)
• Output Impedance *[2]: 2.5 kΩ (unbalanced)
• Dynamic Range (typ.): 99 dB
• Signal-to-Noise Ratio (typ.) *[3]: 68 dB
• Inherent Noise (typ.) *[4]: 26 dB SPL
• Wind Noise *[5]: 45 dB SPL or less (with supplied windscreen)
• Maximum Input Sound Pressure Level (typ.) *[6]: 125 dB SPL

General Section

• Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector

Mic Cable:

• 3.9 feet
• 1.2 m

• Power Requirements: DC 1.1 V to 10.0 V

Dimensions *[7]:

• 5/32 x 5/32 x 21/26 inches (Mic head)
• 3.5 x 3.5 x 20.5 mm (Mic head)

Mass (microphone body, excluding cable):

• Approx. 0.035oz
• Approx. 1g

In the box

• Sony Electret Condenser Microphone
• Urethane type windscreen
• Single/vertical type tie clip
• Single/horisontal type tie clip
• Operating instructions
