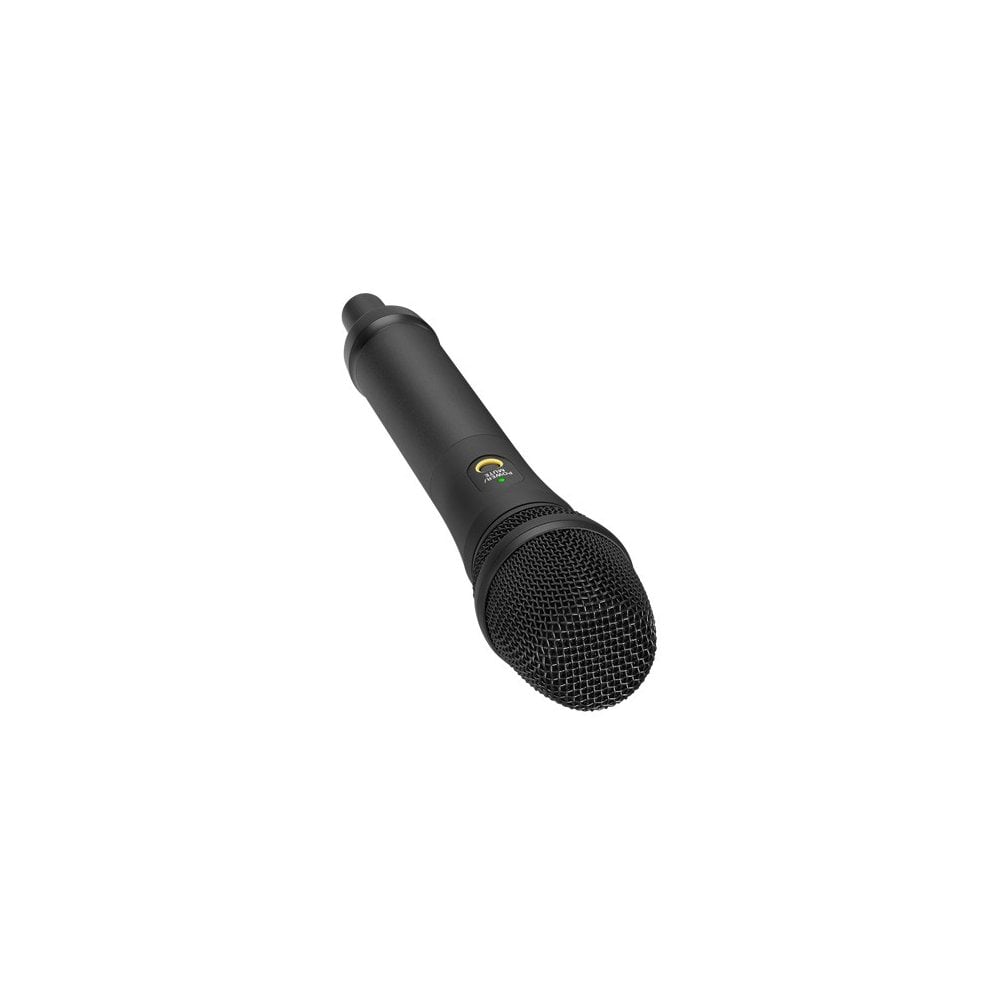

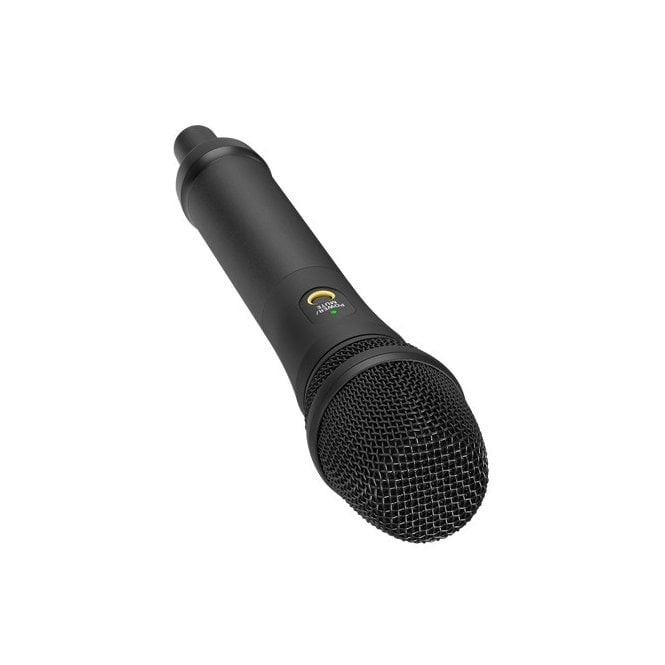

Sony UTX-M40/K33 UWP-D Handheld Microphone With Unidirectional Capsule

Sony UTX-M40/K33 (UTX-M40-K33, UTX-M40_K33,UTXM40-K33, UTX-M40 K33, utx-m40/k33) UWP-D Handheld Microphone With Unidirectional Capsule

The Sony UTX-M40 / K33 is a wireless handheld microphone of the UWP-D series and works in the frequency range of 566 - 630 MHz (channels 33 - 40). The UWP-D series offers excellent sound quality with digital processing, reliable RF transmission, true dual tuner diversity reception and user-friendly functions. The UTX-M40 is compatible with the WL-800, UWP and UWP-D series from Sony.

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

• Oscillator type: Crystal controlled PLL synthesizer
• Antenna type: Wire antenna with 1/4 lambda wavelength
• Carrier frequencies: 33CE: 566.025 MHz to 630.000 MHz (UHF TV channels 33 to 40)
• RF output power: 30 mW / 5 mW selectable
• Capsule type: Dynamic
• Characteristic: Unidirectional
• Reference audio input level: -55 dBV (gain mode set to NORMAL, 0 dB attenuation)
• Maximum audio input level: 151 dB SPL (21 dB attenuation, when using the supplied microphone unit)
• Audio attenuation adjustment range: 0 dB to 21 dB (in steps of 3 dB)
• Frequency response: 70 Hz to 18 kHz (typical)

Signal-to-noise ratio:

• 60 dB (-60 dBV, 1 kHz sine wave input)
• 102 dB (gain mode set to AUTO GAIN,

max.deviation , A-weighted) 96 dB (gain mode set to NORMAL, max.deviation, A-weighted)

• distortion: 0.9% or less (-60 dBV, input 1 kHz)
• Sound delay: approx. 0.35 ms

Beep frequency:

• in UWP-D compander mode: 32.382 kHz
• in UWP compander
• mode : 32 kHz in WL800 compander mode: 32.768 kHz
• display: OLED

Operating voltage:

• DC 3.0 V (two LR6 / AA alkaline batteries)
• 5.0 V DC (supply via USB type-C port)
• Battery life *: approx. 8 hours with an output power of 30 mW

* The battery life was measured with two LR6 / AA alkaline batteries from Sony at 25 ° C.

• operating temperatur: 0 to 50 ° C
• Temperature (storage / transport): -20 ° C to +55 ° C
• Dimensions: 48mm diameter x 258mm length
• Weight: approx. 255 g (without batteries)

In The Box:

• 1 x Sony UTX-M40 / K33 (566 - 630 MHz)
