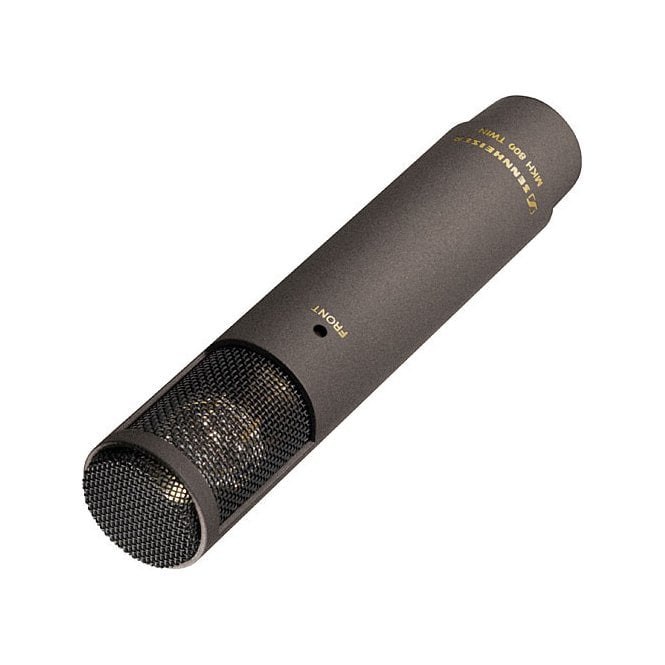

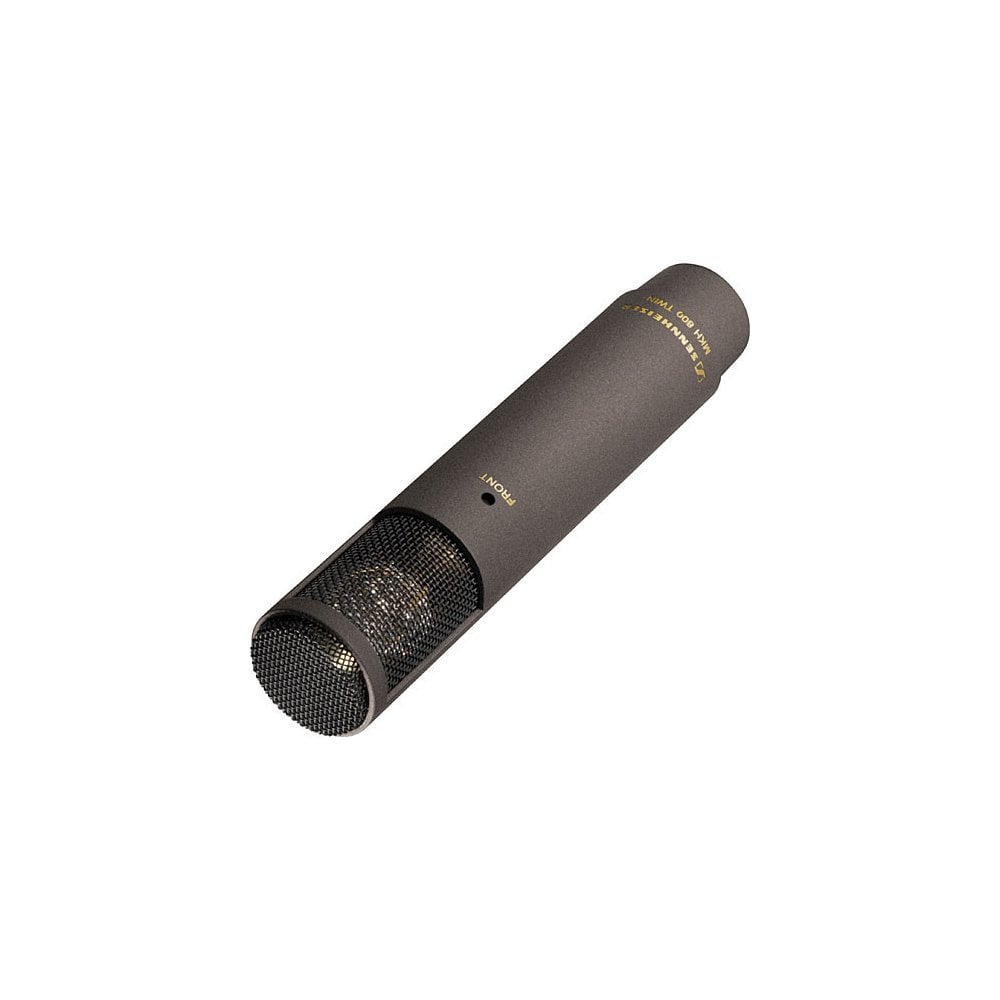

Sennheiser MKH 800 TWIN Nx Dual Capsule Microphone

code: 502083
  • £2,248.00
  • RRP: £2,290.00
Status   |   Usually dispatched within 24 hours


  • Color: Nickel
  • The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone.
  • The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording.
  • A wide range of mixes for stereo and surround are possible (including in parallel).
  • Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
  • The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance.
  • Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
  • High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
  • The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
  • Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
  • Negative acoustic effects caused by the housing and the sound inlet basket are minimised.

Sennheiser 502083 (502 083, 502/083, 502 083, 50-20-83) (MKH800TWINNx, MKH-800-TWIN-Nx, MKH/800/TWIN/Nx) MKH 800 TWIN Nx Dual Capsule Microphone

The MKH 800 TWIN is a universal studio condenser microphone of exceptional quality. It includes a dual capsule consisting of two symmetrical push-pull transducers with high linearity. This is a "side fire" microphone with the two cardioid pick-up patterns of the transducer aligned back-to-back across the axis of the microphone. The signals of both transducers are not combined in the microphone in order to generate differing pick-up patterns but are available separately as two channels at the microphone output. This allows the pick-up patterns of the MKH 800 TWIN to be remotely adjusted. The signals can be combined in any desired way in the mixing console in order to create all pick-up patterns from omni-directional to figure-8 with an infinite number of intermediate stages. Based on the legendary MKH 800, this microphone opens up to a new dimension of studio recordings.

  • Colour : Black
  • Frequency response (Microphone): 30 - 50000 Hz
  • Weight: 172 g
  • Sensitivity in free field, no load (1kHz): 40 mV/Pa (-28 dBV)
  • Nominal impedance: 100 Ohm
  • Min. terminating impedance: 2000 Ohm
  • Phantom powering: 48V +/- 4V
  • Equivalent noise level: 12 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3: 20 dB
  • Maximum sound pressure level (passiv): 134 dB SPL
  • Current consumption: 2 x 3.1 mA
  • Dynamic range: 122 dB(A), 114 dB (CCIR)

In The Box

  • MKH 800 TWIN studio condenser microphone
  • MZQ 80 microphone clamp
  • MZS80 shock mount
  • AC 20 adaptor cable (1 x XLR-5 socket to 2 x XLR-3 connector)
  • User manual
  • Aluminium transport case
