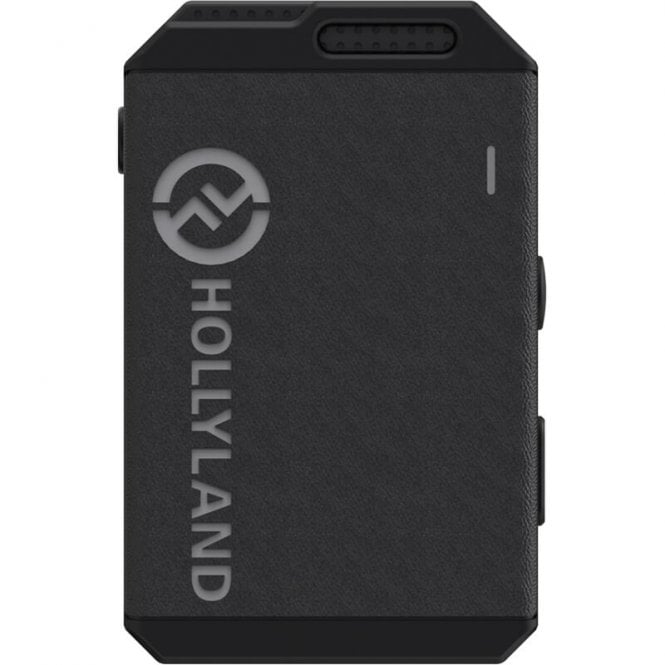

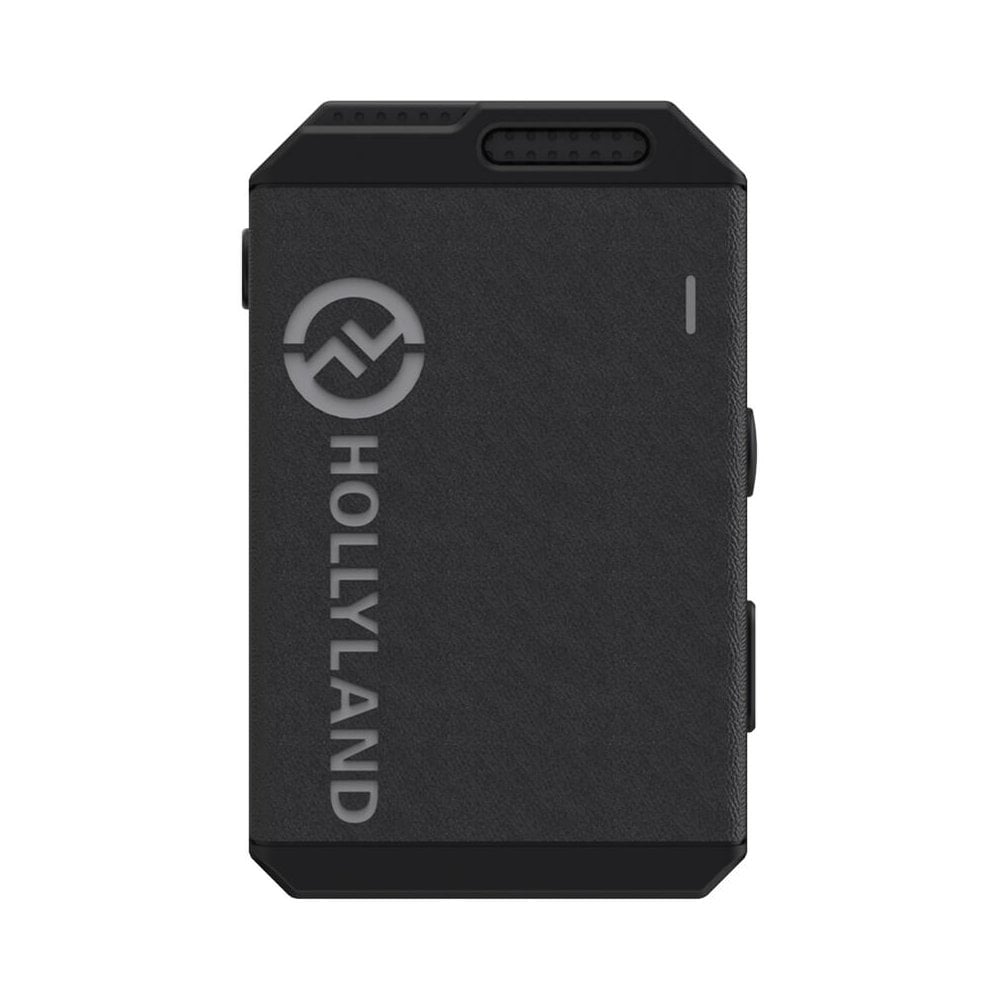

Hollyland All-in-One Wireless Lavalier Microphone System TX (Black)

Hollyland All-in-One Wireless Lavalier Microphone System TX (Black)(HL-LARK-MAX-TX-B)

The LARK MAX is an all-in-one wireless lavalier microphone system with industry-first MaxTimbre Mic technology and advanced Environmental Noise Cancellation (ENC) technology providing an unparalleled crystal-clear sound. The transmitter has 8GB of built-in memory and supports up to 14 hours of backup recording. It is perfect for interviewing, vlogging, podcasting, electronic fi eld production, online teaching, and any audio recording applications requiring high-quality audio pickup and a peace-of-mind audio backup solution.

STUDIO-QUALITY AUDIO WITH MAXTIMBRE MIC TECHNOLOGY

With its MaxTimbre Mic technology, the LARK MAX sets a new standard for capturing every detail and nuance with stunning clarity.

Boasting a list of impressive technical specifi cations: 48kHz sampling rate, 24-bit bit depth, 70 dB SNR, and 128 dB max SPL.

INDUSTRY-FIRST MIC TECHNOLOGY

MaxTimbre

MaxTimbre Mic technology is a multilayer membrane microphone design that optimizes voice recording for crisp, clear results. The multilayer acoustic structure eff ectively eliminates unwanted resonances. It enhances performance with a durable mesh of superior wind-proof and vibration-isolation features.

HIGH-SENSITIVITY OMNIDIRECTIONAL MICROPHONE

48kHz/24-bit

The LARK MAX high-sensitivity omnidirectional 48kHz/24-bit microphone records full-range audio with incredible precision, clarity, and rich detail.

HIGH SIGNAL-TO-NOISE RATIO

70 dB

The LARK MAX SNR is 70 dB, which is crucial for recording in quiet environments.

MAX SOUND PRESSURE LEVELS (SPL)

128 dB

The LARK MAX stands up to 128 dB of SPL, and its 98-106 dB dynamic range signifi cantly reduces audio distortion when recording in complex environments.

Note: The maximum SPL is based on laboratory testing results, with the transmitter input gain set to the lowest level. For optimal recording results, it is recommended to place the transmitter at a proper distance from the audio source.

ADVANCED TECHNOLOGY

DSP

The LARK MAX utilizes Digital Signal Processing (DSP) technology to signifi cantly enhance audio signal quality and reduce unwanted noise and interference.

PROFESSIONAL ENC

Environmental Noise Cancellation

The LARK MAX utilizes advanced ENC technology to detect and minimize surrounding noise, ensuring the audio quality remains crystal clear and distortion-free, even in loud recording environments. It is user-friendly, allowing you to easily turn the ENC mode on or off from the transmitter or receiver.

ON-BOARD STORAGE FOR 14-HOUR BACKUP RECORDING

8GB

The LARK MAX transmitter also serves as a standalone recorder with built-in 8GB of storage. Record up to 14 hours of uncompressed and lossless WAV fi les. The internal recording fi les are stored in the transmitter. You can turn on the Auto Record mode on the receiver to activate the transmitter's internal recording feature for extra audio safety, ensuring that you won't miss any important moments.

ULTRA-LONG 22-HOUR BATTERY LIFE

The LARK MAX is designed with a compact charging case, so you can enjoy virtually unlimited recording adventures without worrying about battery life. The transmitter's operation time is about 7.5 hours and can reach up to 22 hours with a fully charged charging case. The receiver can operate for up to 9 hours, and it can be charged and used at the same time.

Note: The data provided above is based on laboratory testing results.

WIDE DEVICE COMPATIBILITY

Enjoy teaming the LARK MAX with mobile devices, cameras, or computers.

Camera Connection

The 3.5mm output interface makes it compatible with many camera types — DSLR cameras, mirrorless cameras, action cameras, camcorders, and others. To connect the receiver to a camera, just use the 3.5mm TRS to 3.5mm TRS cable.

MOBILE DEVICE CONNECTION

Simply connect the receiver to a mobile phone with the included MFi-certifi ed USB-C to Lightning cable or USB-C to USB-C cable or the optional 3.5mm TRS to 3.5mm TRRS cable. Achieve real-time audio playback on your phone speaker without the need to unplug the receiver from your device for an immediate audio quality check.

COMPUTER CONNECTION

The LARK MAX also supports USB Audio Class (UAC) standards and can work as a sound card sending high-quality audio sources to your computer via a single USB cable.

STABLE TRANSMISSION WITH AFH TECHNOLOGY

820ft (250m)

The LARK MAX provides an ultra-long wireless line-of-sight (LOS) range of up to 820ft (250m) with dual high-gain antennas. It also adapts advanced adaptive frequency hopping (AFH) technology to eff ectively prevent signal drops and ensure a seamless audio recording experience.

Note: The LOS range of 820ft (250m) is measured in an unobstructed outdoor environment free of interference.

CONVENIENT

Magnetic Design

Each transmitter comes with a convenient back clip and a magnet clip. The transmitter weighs approximately 33g (1.16oz) and easily attaches to any garment and other objects via the integrated back or magnet clip.

USER-FRIENDLY DESIGN

The LARK MAX works perfectly with various recording devices and is paired and ready for use out of its charging case. Addressing diff erent audio recording preferences with its fl exible gain control allows you to precisely tailor the audio volume for an outstanding user experience.

COLOUR AMOLED TOUCHSCREEN

1.1"

The colourful and vivid AMOLED touchscreen on the receiver allows you to adjust transmitter settings and provides a real-time visual check.

QUICK CONTROL

Knob

You can customize diff erent settings quickly with the control knob.

On-Screen

Home Button: A single tap easily accesses the quick settings interface or returns to the previous interface.

Skin-like

Comfortable Touch: The LARK MAX has a sleek and stylish appearance, giving it a warm, comfortable, and natural feeling when touched.

Professional Functions

Recording Modes: Select the most suitable audio recording mode: mono, stereo, or safety track for recording security and more fl exibility in post-production.

EQ SETTINGS

Hi-Fi/Low Cut/Vocal Boost

The Hi-Fi function provides high-quality audio recording with utmost precision and accuracy.

The Low Cut function removes low frequencies of the audio signal, eliminating low-end rumble.

The Vocal Boost function reduces environmental noise and improves voice intelligibility, making a more pleasant and crystal-clear recording experience.

LOS Range Up to 820ft (250m)

Modulation Mode GFSK

EIRP <20dBm

Operating Frequency 2400MHz–2483.5MHz

Battery Type RoHS-compliant LiPo

Mic Polar Patter Omnidirectional

Mic Sensitivity –36dBFS±1dB@1 kHz, 94dB SPL

Frequency Response 20 Hz–20 kHz (Low Cut disabled)

Input Dynamic Range 98dB (Default)/106dB (Max)

Signal to Noise Ratio 70dB

Sound Pressure Level 120dB SPL (Default)/128dB SPL (Max)

Equivalent noise 24dBA

Recorded Audio Format 48 kHz/24-bit WAV

Recorded time (approx) 14 hours

Charging time (approx)

Operating Time (approx) TX- 7.5 hours

RX- 9 hours

Charging case- Two times of charging for 2 TX and 1 RX

Weight TX- 33g (1.16oz)

RX- 60g (2.1oz)

Charging case- 193.5g (6.8oz)

Dimensions (approx) TX- 48.5mm x 30.3mm x 19.37mm (1.9" x 1.2" x 0.76")

RX- 58mm x 40.83mm x 23.17mm (2.3" x 1.6" x 0.9")

Charging case- 115mm x 46mm x 63mm (4.5" x 1.8" x 2.5")

In the Box

Hollyland  Lavalier Microphone System TX
