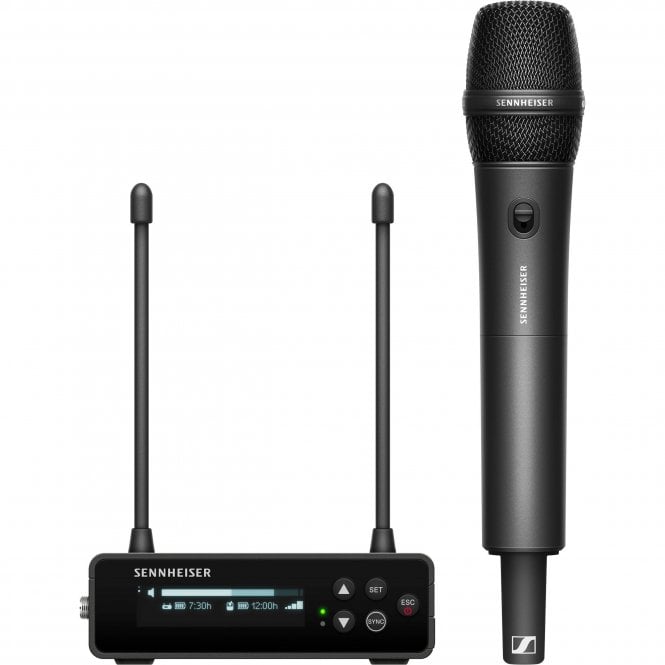

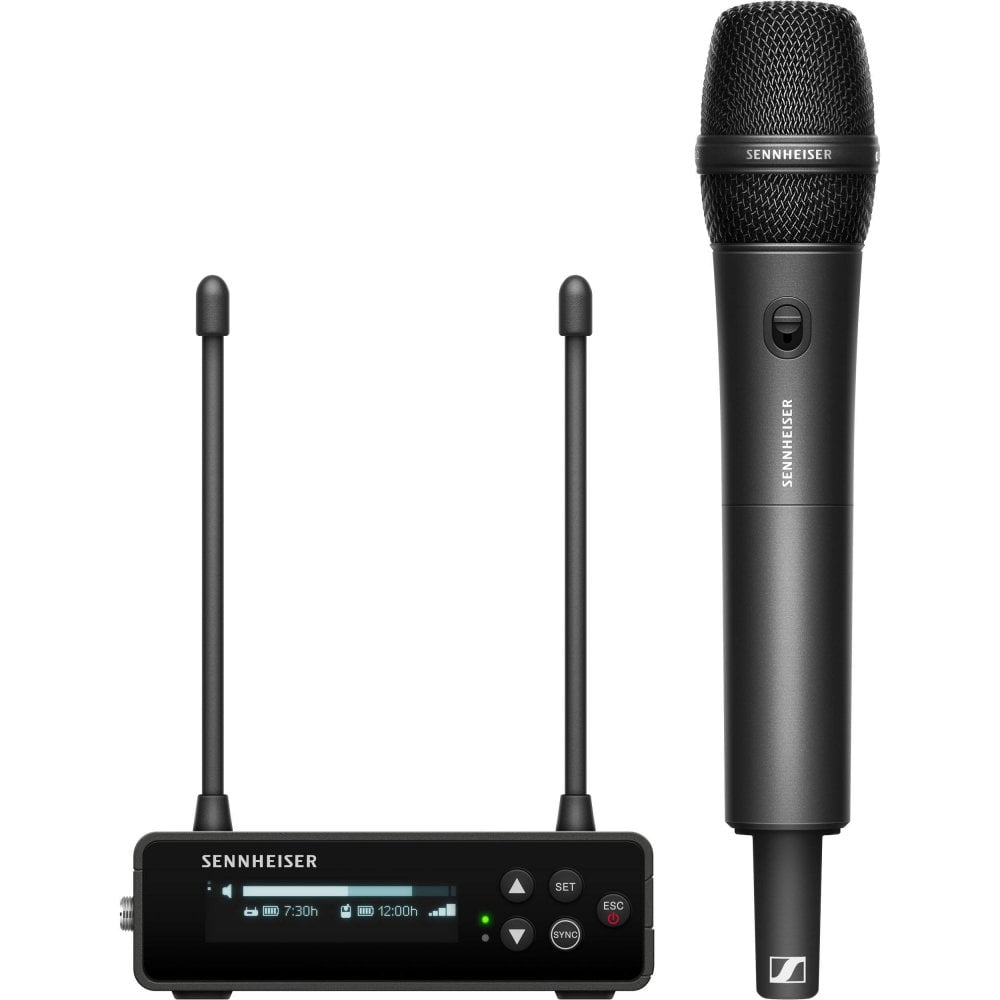

Sennheiser EW-DP 835 SET Camera-Mount Digital Wireless Handheld Microphone System

code: 700031
  • £495.00
  • RRP: £495.00
Status   |   Usually dispatched within 24 hours
Loading...

Fully digital UHF wireless microphone system for video applications

Integrated Bluetooth for synchronization and control

Smart Notifications for troubleshooting and system guidance

Intelligent battery management provides operating time (hours:minutes)

Extended battery life: up to 12h on transmitter, 7h on receiver

Magnetically stackable components for versatile mounting

Industry leading 134 dB input dynamic range for distortion free transmission

Up to 56 MHz bandwidth for flexibility in any RF environment

Exceptionally low latency (1.9 ms)

External charging and powering via USB-C (receiver only)

Smart Assist app for monitor & control

Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

Sennheiser EW-DP 835 SET Camera-Mount Digital Wireless Handheld Microphone System(700031)

EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments.

Capture every detail, every time



When it comes to wireless transmission, UHF is the standard by which all other wireless audio systems are measured by. Used by professionals the world over, Evolution Wireless operates in the UHF spectrum and is known for its reliability, flexibility, and comprehensive feature set. Combine that with the spectral efficiency and audio clarity that only digital technology can offer, and you get EW-DP – our most advanced wireless audio system for video applications.

It's the little things…



Ergonomics were extremely important when developing EW-DP. Starting with the mechanical design, every button, connection, and component was thoughtfully considered for the best user experience possible. Furthermore, EW-DP is the first portable wireless system that has magnetically stackable receivers with a front-facing OLED display. These features allow for ease and flexibility when mounting your receiver, offering optimal visibility regardless of placement, angle, or light. A variety of powering options include primary-cells, lithium-ion rechargeable battery packs and direct power via USB-C, ensuring peace of mind during long hours on set.

Guidance when you need it most



EW-DP is a wireless system that troubleshoots for you. As the old saying goes, to err is human. Smart Notifications provide suggestions to errors that occur when setting up or operating EW-DP. If your audio clips, the system will suggest lowering the gain. When your battery is running low, the system will alert you. If you try to operate on a blocked frequency, you will be promoted to select another. If your transmitter and receiver are not linked, you’ll be prompted to press sync. And if the talent accidentally mutes their transmitter, you’ll be notified and will have the option to disable the mute remotely. These guides make all the difference when audio isn’t your only responsibility.

Control in the palm of your hand



Sennheiser Smart Assist app provides automated setup, operation, and monitoring using any iOS or Android device via Bluetooth. Auto frequency coordination creates reliable wireless connections for up to 16 systems, no wireless expertise required. Remote access to system settings whether at camera or across the room allow for quick and discreet adjustments on the fly. You’ll also find a support hub with video tutorials and detailed manuals to help get you started.


Audio link frequency ranges

Q1-6: 470.2 - 526 MHz

R1-6: 520 - 576 MHz

R4-9: 552 - 607.8 MHz

S1-7: 606.2 - 662 MHz

S4-7: 630 - 662 MHz

S7-10: 662 - 693.8 MHz

U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz

V3-4: 925.2 - 937.3 MHz

Y1-3: 1785.2 - 1799.8 MHz

Bluetooth® Low Energy (BLE) frequency range

2402 - 2480 MHz

Audio frequency response

20 Hz - 20 @ 3 dBfs

Audio THD

≤ -60 dB for 1 kHz @ -3 dBfs input level

Dynamic range

134 dB

System Latency

1.9 ms

Operating temperature

-10 °C - +55 °C (14 °F - 131 °F)

Relative air humidity

5 - 95 % (non-condensing)

EW-DP EK

Input voltage

~ 1.8 - 4.35 V

Input Current

Typ. < 250 mA / Max. < 400 mA (BA 70)

Typ. < 400 mA / Max. < 750 mA (2x AA batteries)

< 300 mA@5 V (USB-C standalone)

Power supply

2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):

5V / 1500mA

9V / 900mA

12V / 700mA

Transmission power

BLE: max. 10 mW EIRP

Audio output power

< 2 dBV max. (high level) / < 4dBU max (high level)

Headphone Output

< 50 mW into 16 Ohms

Dimensions

86 x 67 x 28 mm (3.39" x 2.64" x 1.1")

Weight (without antennas and power supply)

approx. 140g (0.31 lbs)

EW-D SKM-S (Handheld Transmitter)

Input voltage

2.0 - 4.35 V

Input Current

< 300 mA

Power supply

2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack

Occupied bandwidth

200 kHz

Transmit power (radiated)

Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)

BLE: max. 10 mW EIRP

MMD 835 (Microphone Module)

Transducer principle

dynamic

Sensitivity

2.1 mV/Pa

Sound pressure level (SPL)

154 dB SPL

Pick-up pattern

cardioid



In the Box

Sennheiser EW-DP 835 SET Camera-Mount Digital Wireless Handheld Microphone System (R1-6: 520 to 576 MHz)

Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (R1-6: 520 to 576 MHz)

Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (R1-6: 520 to 576 MHz)

Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)

Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable

Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable

USB-C Charging Cable

Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters

2 x AA Battery

Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
