Sennheiser SL PASC 4

Sennheiser SL PASC 4(390041)

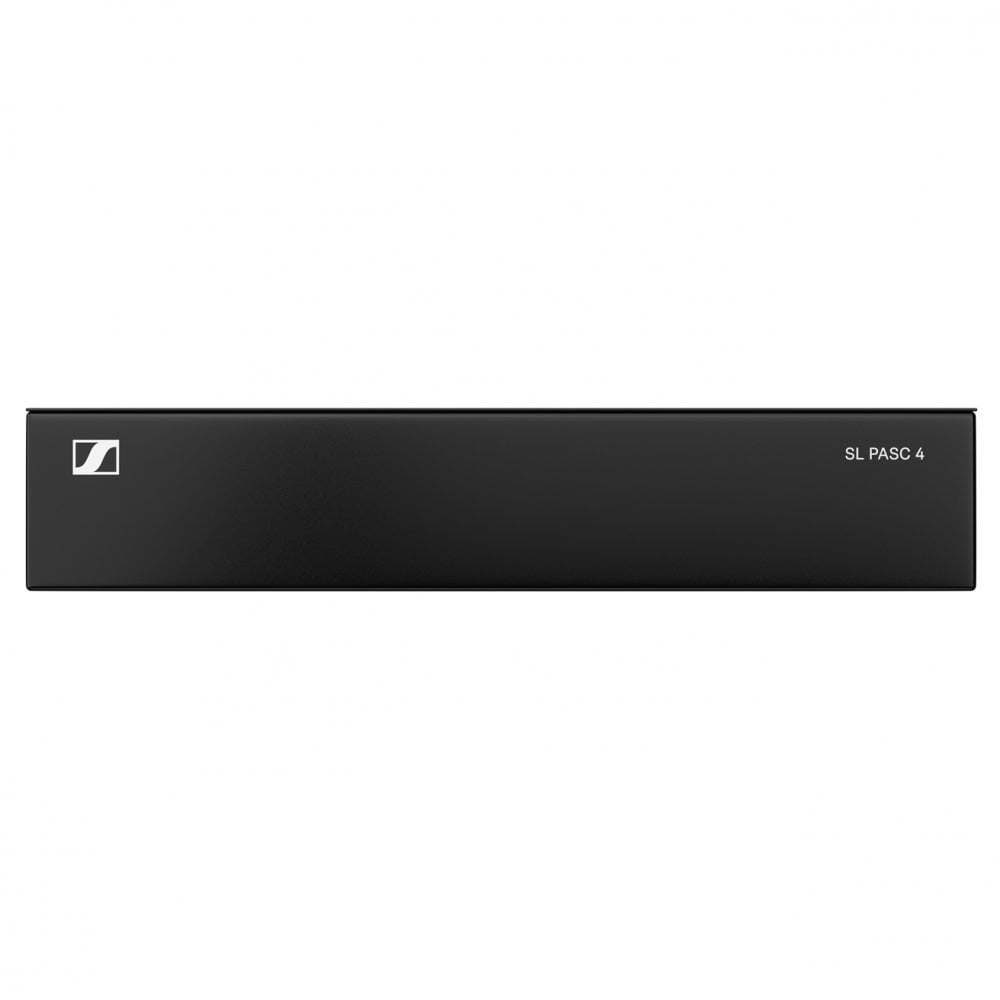

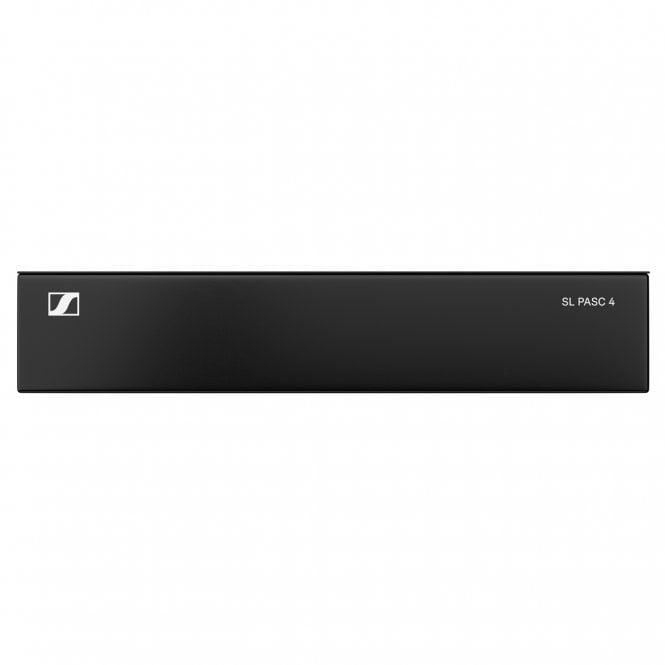

The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.

1880 - 1930 MHz (DECT range)

8 RF outputs for connecting up to 4 SL Rack Receiver DW units

2 RF inputs to connect AWM 2 or AWM 4

SMA-RP connectors

Passive antenna combiner / splitter

Components & A

Type 4-Channel, Connects to a maximum of Four Receivers

Frequency Band DECT: 1880 to 1930 MHz

Connectors 10 x RP-SMA (AC-Coupled)

Attenuation 8 dB Typ.

Input Power 1.5 W, Max

Color Black

Operating Temperature -40 to 185°F / -40 to 85°C

Dimensions 8.3 x 6.3 x 1.6" / 210.0 x 160.0 x 41.0 mm

Weight 23.4 oz / 663.0 g

SL PASC 4

8x SMA-RP cable (length 50 cm)

Quickguide

Safety guide
