Sennheiser TCC M-S-B

code: 700295

Status | Usually dispatched within 24 hours

Patented automatic dynamic beamforming

TruVoicelift

15 SMD Electret condenser capsules made in Germany

Perfect speech intelligibility

Dante or Analog Output

PoE

Certified for: MS Teams, Zoom, DingTalk and Tencent

Exclusion Zones

Priority Zone

Camera Control via talker position data

IEEE 802.1x

TLS 1.2

Sennheiser TCC M-S-B(700295)

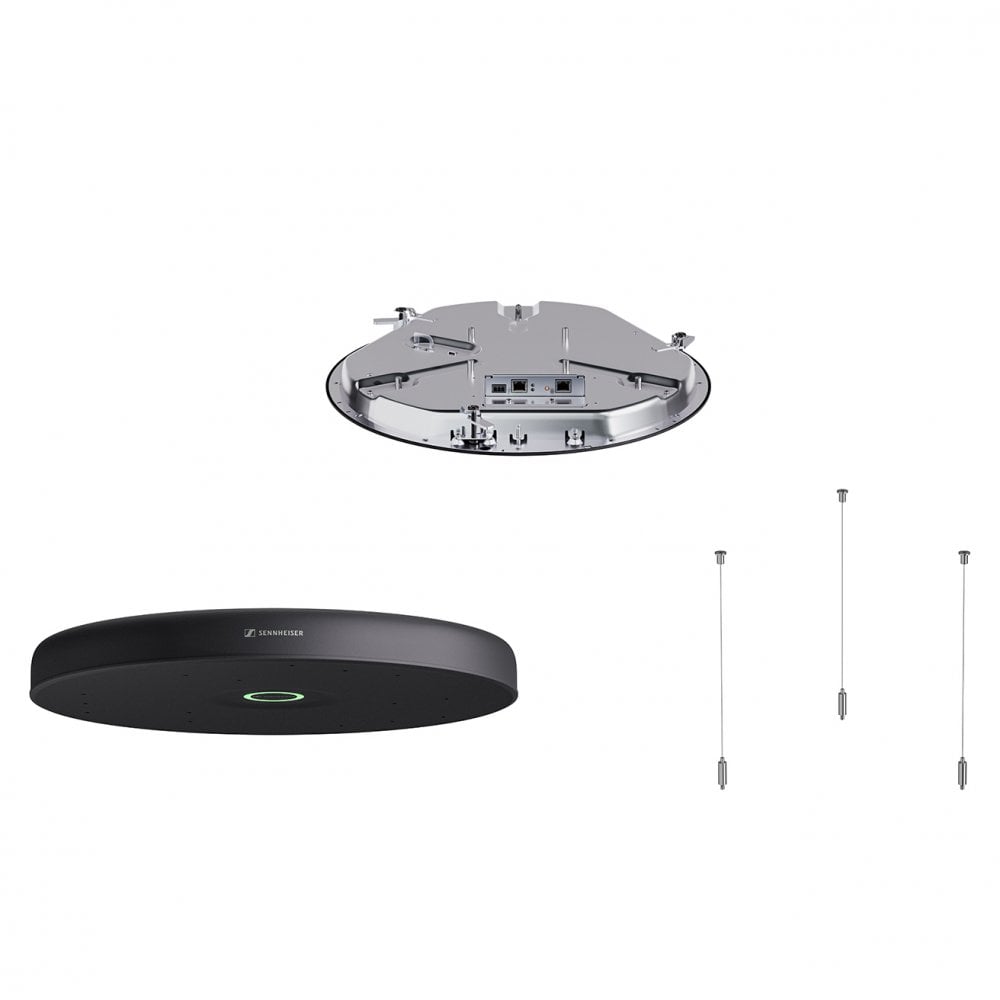

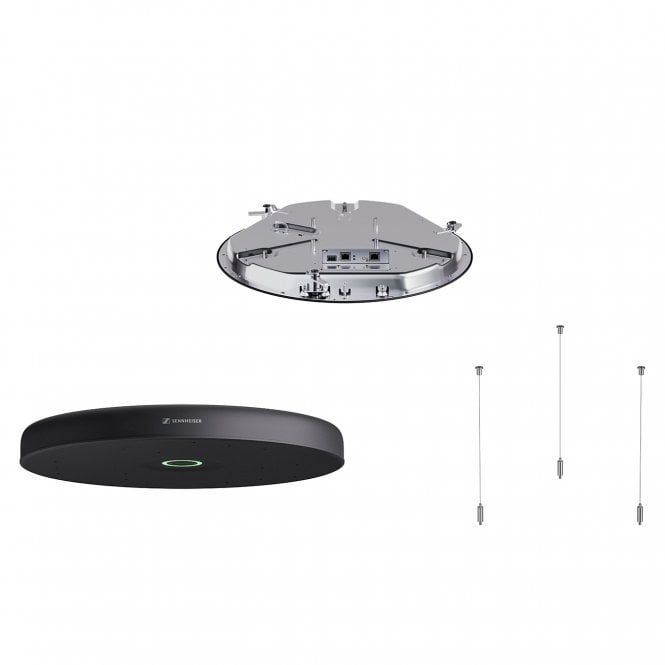

TCC M-S-B is used to surface mount or suspend the black TeamConnect Ceiling Medium. It comes with a TeamConnect Ceiling Medium and black housing

Safety certification

IEC/EN 62368-1 (including UL 2043 testing and compliance)

Dimensions (Ø x H)

477 x 46 mm (16 x 1.8 ")

Weight

max. 4,9 kg (10.8lbs)

Audio output

1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

1x Digital Dante Network Audio (RJ-45)

Network/Control

1 x RJ-45 Ethernet Port for PoE power supply and data/control communication

Supply voltage

PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded)

Power consumption

Approx. 8 W

Temperature Range

Operation: 0 to 40°C

Storage: -10 to 60°C

Relative air humidity

20 to 95%, non-condensing

TCC M microphone

Front plate black

Design housing black

Chicago plenum connection box cover plate

Drilling templates

Phoenix connector

Safety rope

Suspension kit
