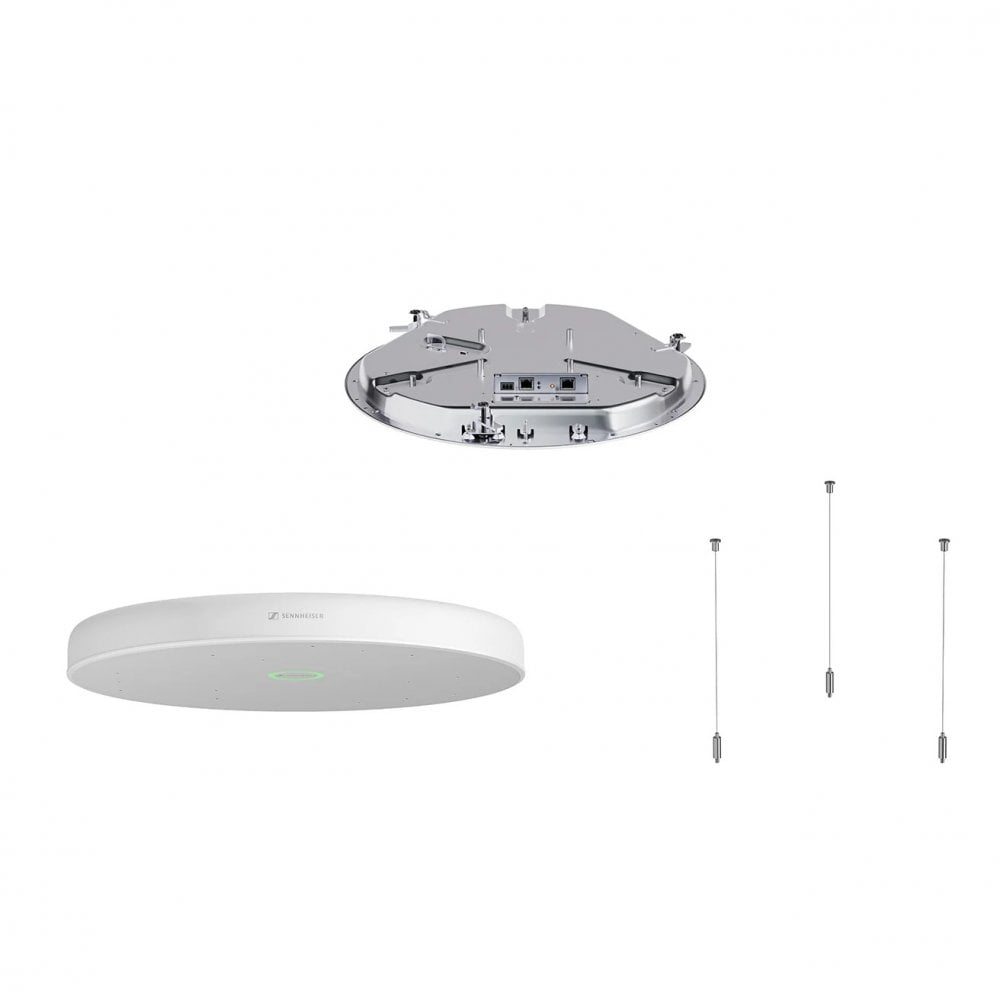

Sennheiser TCC M-S-W(700294)
TCC M-S-W is used to surface mount or suspend the white TeamConnect Ceiling Medium. It comes with a TeamConnect Ceiling Medium and white housing
Safety certification
IEC/EN 62368-1 (including UL 2043 testing and compliance)
Dimensions (Ø x H)
477 x 46 mm (16 x 1.8 ")
Weight
max. 4,9 kg (10.8lbs)
Audio output
1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
1x Digital Dante Network Audio (RJ-45)
Network/Control
1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
Supply voltage
PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded)
Power consumption
Approx. 8 W
Temperature Range
Operation: 0 to 40°C
Storage: -10 to 60°C
TCC M microphone
Front plate white
Design housing white
Chicago plenum connection box cover plate
Drilling templates
Phoenix connector
Safety rope
Suspension kit
