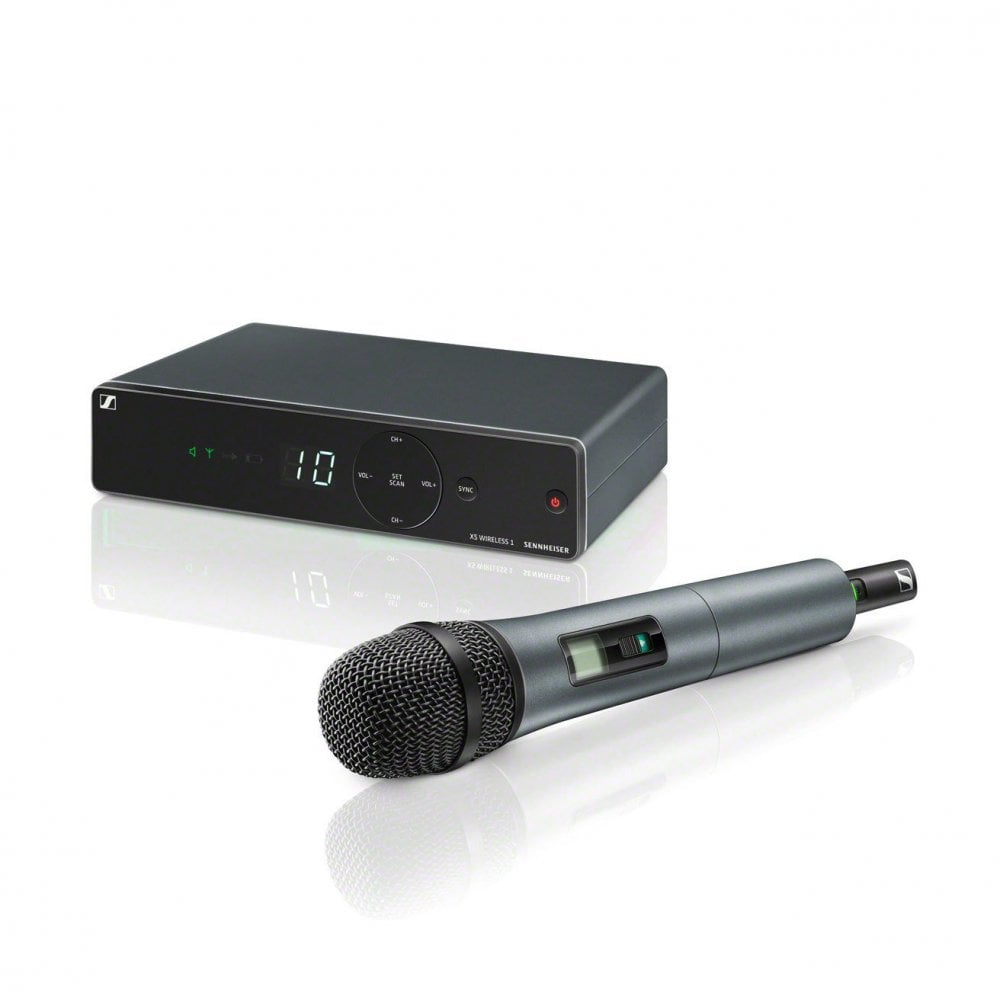

Sennheiser XSW 1-835-E Wireless Handheld Microphone System - E Range

code: 507119
  • £231.00
  • RRP: £215.83
Status | Usually dispatched within 24 hours
Loading...

Features

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Sennheiser 507119 (507 119, 507-119, 5071 19, 50-71-19) (XSW-1-835-E, XSW/1-835-E, XSW1-835-E) XSW 1-835-E Wireless Handheld Microphone System - E Range

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

  • Dimensions: approx. 200 x 42 x 127 mm
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: cardioid
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: wideband FM
  • Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing: rugged ABS housing
  • Dynamic range: dynamic
  • Frequency: 8 frequency banks, each with up to 10 factory-preset channels
  • Frequency range: E : 821-832 MHz, 863-865 MHz
  • Sensitivity: < 3 μV at 52 dB(A)rms S/N
  • Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity: 1.5 mV / Pa
  • Adjustment Range: Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 45 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver Principle: double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas

Receivers

  • Weight: approx. 340g
  • Power supply: Receiver: 12 V DC nom. / 300 mA
  • AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)

Microphone

  • Weight: approx. 245g
  • Power supply: Microphone: 2 AA size batteries, 1.5 V
  • AF frequency response: SKM 825: 80-14,000 Hz


In The Box

  • 1 receiver EM-XSW 1
  • 1 handheld transmitter SKM 835-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
