Sennheiser XSW 1-Cl1-B Instrument Wireless Microphone, B Range

code: 506995
  • £192.50
  • RRP: £182.50
Status | Usually dispatched within 24 hours
Loading...

Features

  • Compact bodypack transmitter, rugged instrument cable
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


Sennheiser 506995 (506-995, 506/995, 506 995, 50-69-95) (XSW-1-Cl1-B, XSW/1-Cl1/B, XSW1-Cl1/B) XSW 1-Cl1-B Instrument Wireless Microphone, B Range

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

  • Dimensions: Receiver: approx. 200 x 42 x 127 mm , Bodypack transmitter: approx. 71 x 96 x 28 mm
  • THD, total harmonic distortion: ≤ 0.9%
  • Weight: approx. 340g (receiver), approx. 95g (transmitter)
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: Wideband FM
  • Power supply: Receiver: 12 V DC nom. / 300 mA ,Transmitter: 2 AA size batteries, 1.5 V
  • Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing: Rugged ABS housing
  • Frequency: 8 frequency banks, each with up to 10 factory-preset channels
  • Frequency range: B: 614-638 MHz
  • Sensitivity: < 3 μV at 52 dB(A)rms S/N
  • SPL for peak deviation: 130 dB
  • Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity: 1.5 mV / Pa
  • AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 45 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver Principle: double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas

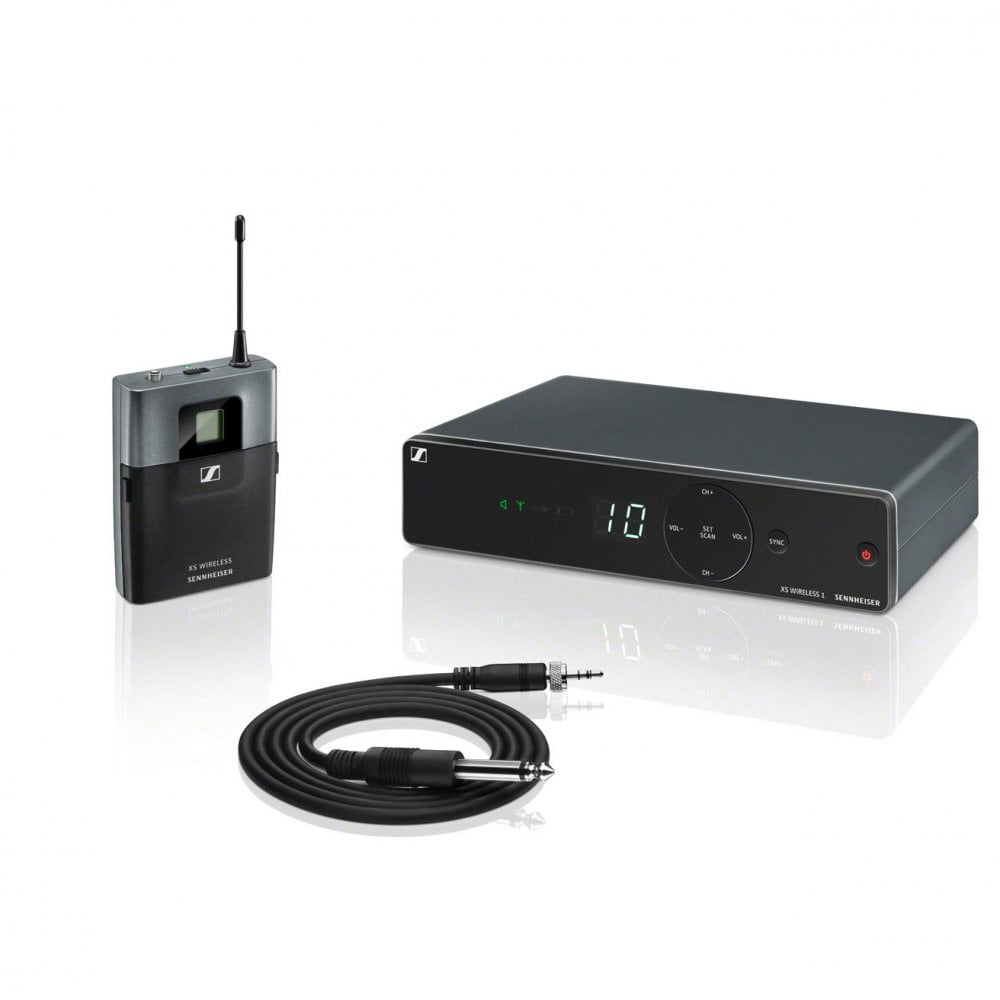

In The Box

  • 1 receiver EM-XSW 1
  • 1 bodypack transmitter SK-XSW
  • 1 instrument cable Cl1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
