Sennheiser XSW 1-ME3-E Wireless Headmic Set, E Range

Sennheiser 506991 (506-991, 506/991, 50-69-91, 506 991) (XSW/1-ME3-E, XSW-1-ME3-E, XSW1-ME3-E) XSW 1-ME3-E Wireless Headmic Set, E Range

Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: 12 V DC nom. / 300 mA
• AF frequency response: 50 to 16,000 Hz (–3 dB)

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: Approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

Microphone Condenser

• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: Cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: Wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range: B: 614-638 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 150 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: Operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

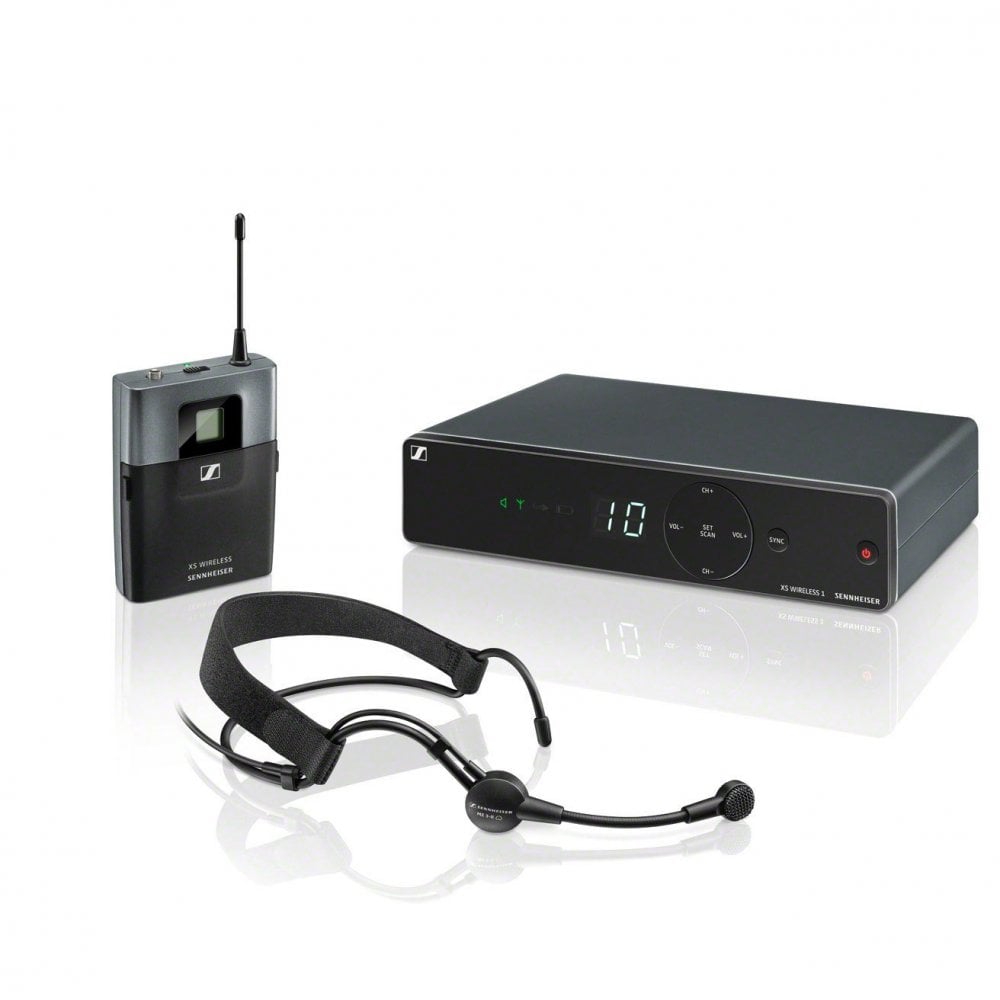

In The Box

• 1 receiver EM-XSW 1
• 1 headset microphone ME 3-II
• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries
