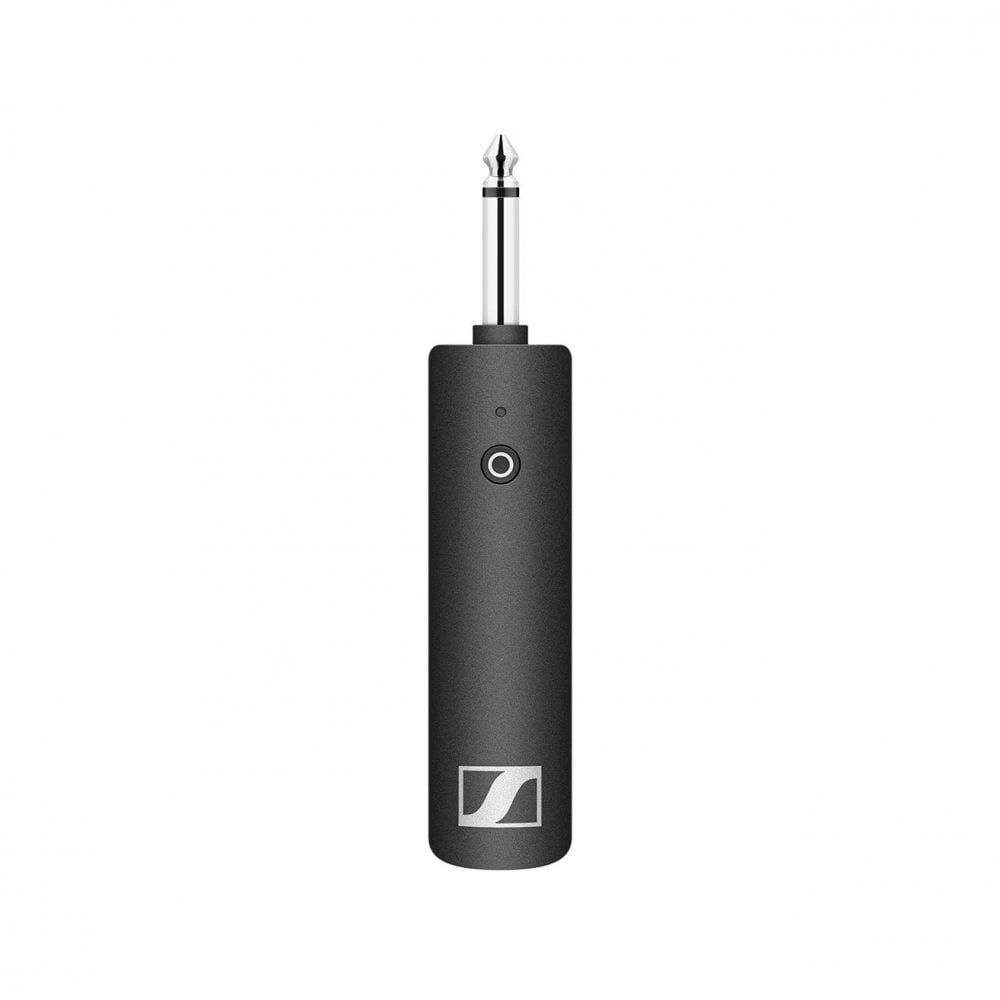

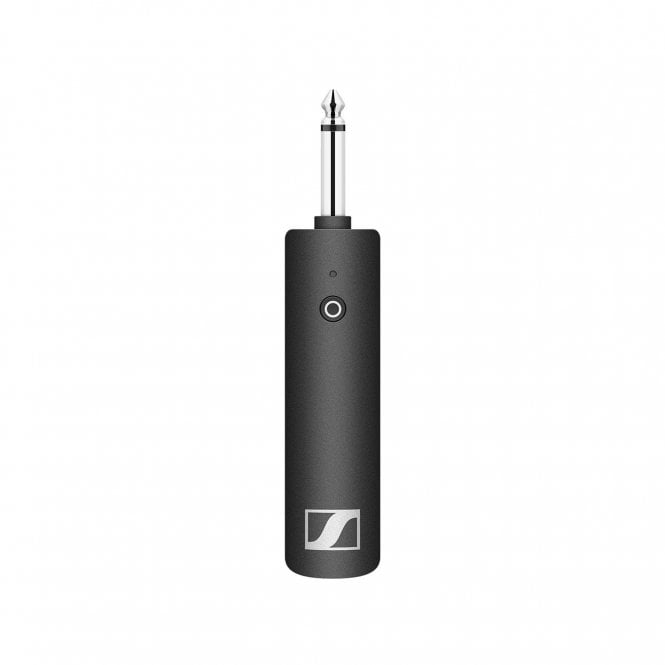

Sennheiser XSW-D INSTRUMENT RX 1/4" Plug-In Receiver

Sennheiser XSW-D INSTRUMENT RX 1/4" Plug-In Receiver(508498)

Part of the Sennheiser XSW-D digital wireless system, the XSW-D INSTRUMENT RX 1/4" plug-on receiver is available as an individual component to be used as a backup receiver or as a replacement unit. It features a 1/4" male connector ready to plug directly into the input of your amplifier or pedal.

The XSW-D puts world-renowned Sennheiser wireless sound quality in a miniaturized, low-latency, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and playing, simplifying your setup so you can concentrate on performing with confidence.

Sennheiser XSW-D Specs

Wireless Technology Digital UHF (2.4 GHz)

Diversity Non-Diversity

RF Frequency Band 2400 to 2483.5 MHz

RF Bandwidth 83.5 MHz

RF Channel Scanning Auto-Scan

Max Operating Range 250' / 76.2 m

Max Transmitters per Band 1

Timecode Support No

Mobile App Compatible No

*As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Latency < 4 ms

Modulation GFSK

SNR >106 dB

THD <0.1 %

Receiver

Receiver Type Plug-In

Mounting Options Plug-In (with Included Hardware)

Antenna 1 x Internal

Number of Audio Channels 1

Audio I/O 1 x 1/4" TRS Male Unbalanced Output

Audio Output Level 12 dBu (Max)

Phantom Power Protection None

Frequency Response 10 Hz to 18 kHz

Network I/O None

USB/Lightning Connectivity None

Standalone Audio Interface Capable No

Power Requirements Battery

Battery Type 1 x Built-In Rechargeable

Internal Battery Capacity 850 mAh

Battery Charging Time 3 Hours

Approx. Battery Life 5 Hour

Display & Indicators 1 x LED (Battery Status)

Operating Temperature 14 to 131°F / -10 to 55°C

Operating Humidity 95%

Dimensions 4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm

Weight 2.7 oz / 77 g

Packaging Info

Package Weight 0.49 lb

Box Dimensions (LxWxH) 9.5 x 4.6 x 2.8"

1x Charging cable USB-A to USB-C
