Sennheiser Xsw-d PedalBoard Set

Sennheiser Xsw-d PedalBoard Set(508486)

The Sennheiser XSW-D PEDALBOARD SET is a gig-ready, low-latency, wireless guitar system that's as easy to use as a guitar cable, while still providing the freedom of digital wireless. The XSW-D puts world-renowned Sennheiser sound quality into a plug-and-play, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and playing, simplifying your setup so you can concentrate on performing with confidence.

The XSW-D PEDALBOARD SET comes with a miniaturized 1/4" plug-on instrument transmitter. The pedalboard receiver includes a built-in tuner and direct box, which add versatility to your rig, while saving valuable space. The system connects to any guitar/bass amplifier, pedal, stage box, or mixing board, capturing the full range of your instrument without compromising your tone—on stage, at home, or in rehearsals.

Unboxing the System

The exceptionally lightweight and low-profile 1/4" plug-on transmitter plugs directly into the output on your guitar or instrument.

For a less obtrusive appearance, you can use the included belt clip and extension cable to attach the transmitter to your waist or strap. The extension cable can also be used when the transmitter doesn't fit in a specific instrument.

The compact pedalboard receiver features a 1/4" instrument output to connect to your amplifier or pedal, as well as a DI output on a balanced XLR connection. There is also an onboard tuner with an LED display for visual confirmation, and a footswitch to mute your instrument when tuning.

You're ready to turn it on and play—it's that easy.

Plug In, Turn On: It Works

The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.

The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.

(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)

Step Up to Sennheiser Sound Quality

Sennheiser wireless systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.

Analog wireless systems need to squash your signal to operate in the FM band, resulting in a thin sound with a high noise floor. The XSW-D uses digital technology to preserve the dynamic range of your signal and deliver a crisp, clean, guitar sound with all the nuances of your performance.

On stage, timing is critical, and the XSW-D uses the aptX Live codec to deliver an impressively low latency of 3.9ms, so you don't experience any lag when playing—keeping you on point and in the groove.

Easy 2.4 GHz Digital Wireless

Nothing ruins a take like hearing the weather report coming through your amp. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and dropouts caused by TV channels, radios, or other sources.

Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.

Expand Your System as Your Needs Grow

The functionality of this XSW-D PEDALBOARD SET can easily be expanded by adding XSW-D Series transmitters and receivers, as your needs evolve.

With this set, adding the XSW-D 1/4" plug-on receiver gives you a streamlined option without the tuner and DI, which plugs directly into your amp (or pedal).

If your band wants to go wireless, up to five musicians can each use an XSW-D system on the same stage.

License-Free Operation Worldwide

Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.

Simply let the system pick a channel for you and start recording, whether you're working at home or anywhere in the world.

System

Wireless Technology Digital UHF (2.4 GHz)

Included Transmitters 1 x Plug-On

Diversity Non-Diversity

RF Frequency Band 2400 to 2483.5 MHz

RF Bandwidth 83.5 MHz

RF Channel Scanning Auto-Scan

Max Operating Range 250' / 76.2 m

Max Transmitters per Band 1

Mobile App Compatible No

*As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Audio Codec aptX

Latency < 4 ms

Modulation GFSK

SNR ≥106 dB

THD <0.1 %

Receiver

Receiver Type Plug-In

Mounting Options Plug-In (with Included Hardware)

Antenna 1 x Internal

Number of Audio Channels 1

Audio I/O 1 x 1/4" TRS Unbalanced Output

Audio Output Level 12 dBu (Line Level, Max)

Frequency Response 10 Hz to 18 kHz

USB/Lightning Connectivity 1 x USB-C Female (Charging)

Squelch None

Power Requirements Battery

Battery Type 1 x Built-In Rechargeable

Internal Battery Capacity 850 mAh

Battery Charging Time 3 Hours

Approx. Battery Life 5 Hours

AC/DC Power Adapter 5 VDC (Included)

DC Input Power 5 VDC

Display & Indicators 1 x LED (Battery Status, Power)

Dimensions 4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm

Weight 2.7 oz / 77 g

Transmitter

Transmitter Type Plug-On

RF Output Power 10 mW

Audio I/O 1 x 1/4" TRS Male Input

Included Cable Connector None

Pad None

Muting Off/On Switch

Audio Input Level 1.2 dBu

Signal Processing None

Cable Tone Simulation None

Frequency Response 10 Hz to 18 kHz

Antenna 1 x Internal

Power Requirements Battery

Battery Type 1 x Built-In Rechargeable

Internal Battery Capacity 850 mAh

Battery Charging Time 3 Hours

Approx. Battery Life 5 Hours

USB/Lightning I/O 1 x USB-C (Charging)

Display & Indicators 1 x LED (Battery Status, Power)

Operating Temperature 50 to 131°F / 10 to 55°C

Operating Humidity 95%

Dimensions 4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm

Weight 2.7 oz / 77 g

Packaging Info

Package Weight 2.55 lb

Box Dimensions (LxWxH) 9.5 x 9 x 3"

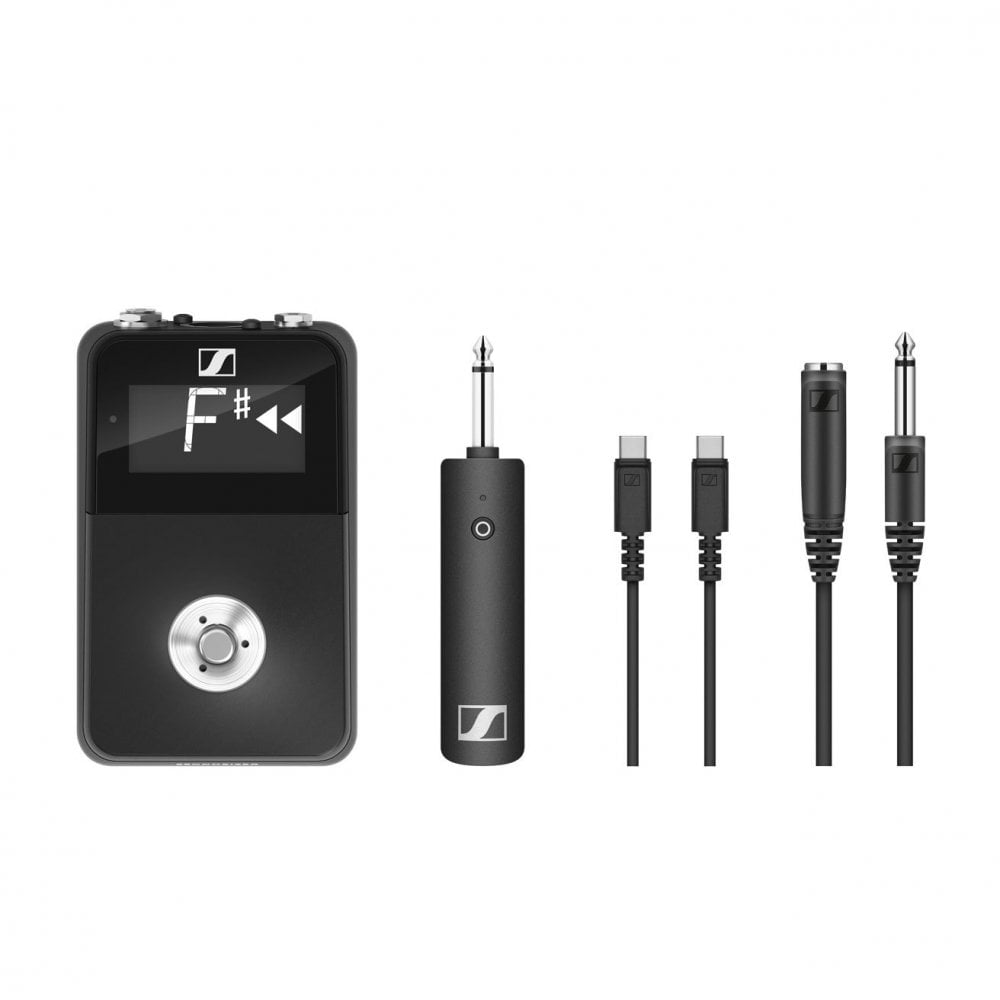

XSW-D 6.3mm (1/4”) transmitter

XSW-D Pedalboard receiver

Receiver power supply

Extension cable 6.3mm (1/4”)

Belt clip

USB-C to USB-C charging cable
