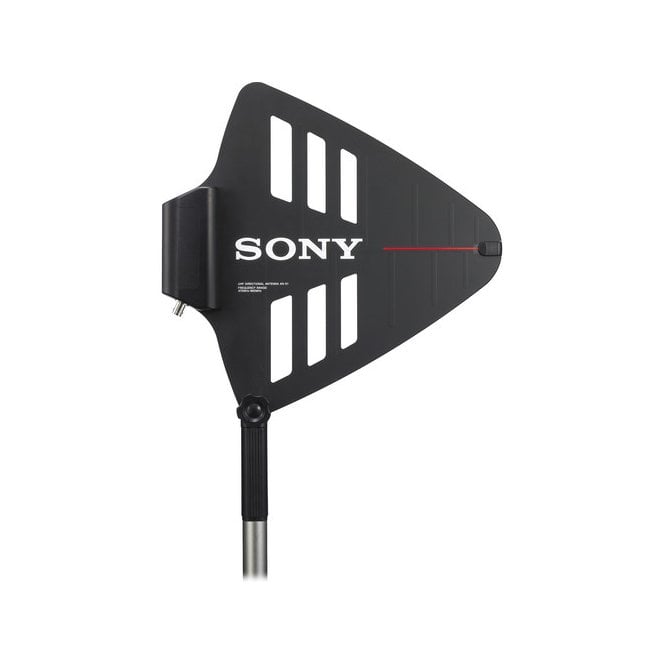

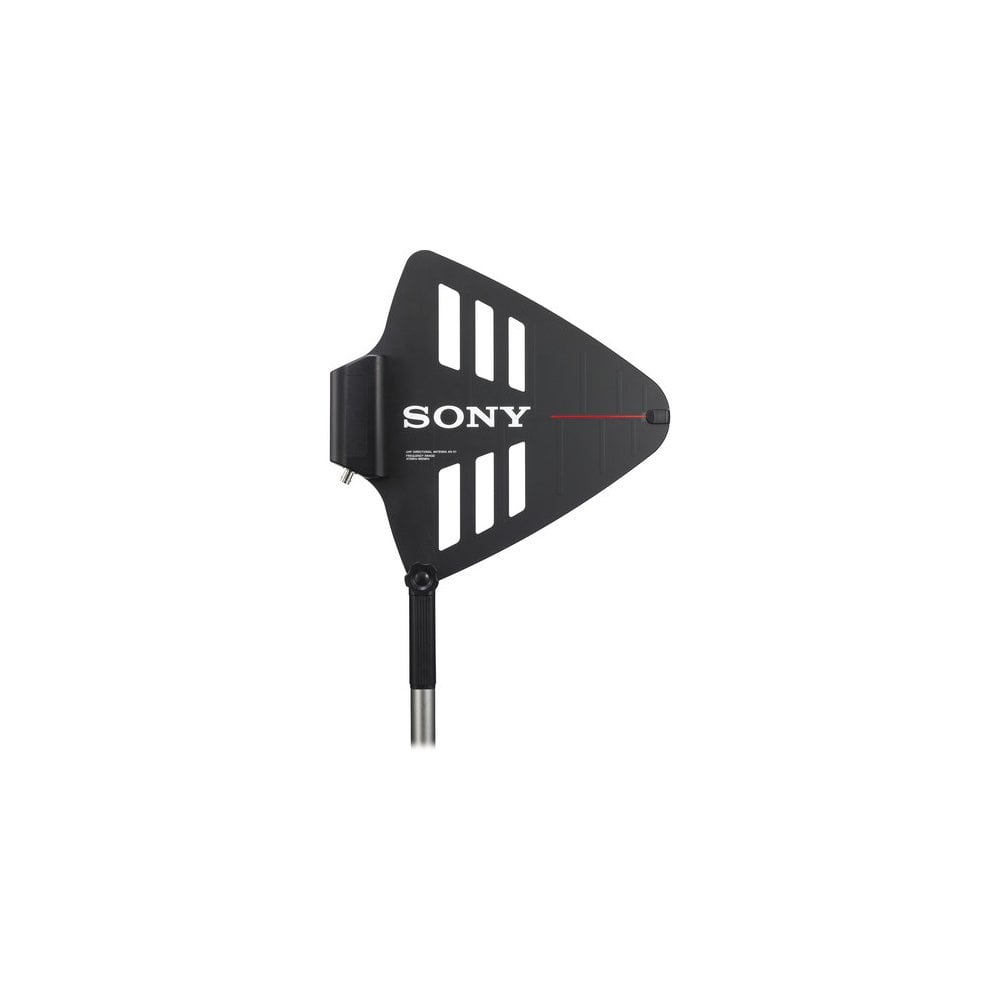

Sony AN-01//K Uni-Directional UHF Antenna

Sony AN-01//K (AN-01-K, AN/01/K, AN_01_K, AN01K, an-01//k) Uni-Directional UHF Antenna

The AN01 Active Directional Antenna from Sony provides 0, 10 or 18dB of gain. Two antennas are required for Diversity Tuner Operation. This unit is for use with UHF-TV channels 14 through 69.

The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.

Antenna Section

• Antenna Type: Log periodic dipole array
• Directivity: Unidirectional
• Frequency Range: 470 MHz to 862 MHz
• Antenna Gain: 5 dBi or more
• Voltage Standing Wave Ratio: 2.5 or less
• Half Power Angle: 150 degrees or less
• Front To Back Ratio: 12 dB or more

Booster Section

• Frequency Range: 470 to 862 MHz
• Booster Gain: 18 dB/10 dB/0 dB, switchable
• Voltage Standing Wave Ratio: 3.0 or less
• Noise Figure: 6 dB or less
• Third Order Intermodulation: 60 dB or more (95 dBμVEMF input)

Input/Output

• Output Connector: BNC-R, 50 Ω

General

• Power Requirements: 9 V/12 V DC
• Power Consumption: 100 mA or less

Operating Temperature:

• 32°F to 122°F
• 0°C to 50°C

Storage/Transport Temperature:

• -4°F to +140°F
• '-20°C to +60°C

Dimensions:

• 343 x 341 x 36 mm (excluding microphone stand attachment pole/grip) (W x H x D)
• 13 1/2 x 13 5/8 x 1 7/16 inches (excluding microphone stand attachment pole/grip) (W x H x D)

Mass:

• Approx. 530 g
• Approx. 19 oz

In the Box

• 1x AN-01// K (TV channel 21-69)
• 1x Stand Adapter PF1/2 to W5/8 type
• 1x Stand Adapter PF1/2 to W5/8 type
• 1x Stand Adapter PF1/2 to W3/8 type
• 1x Operating Instructions
• 1x Microphone stand attachment pole/grip
