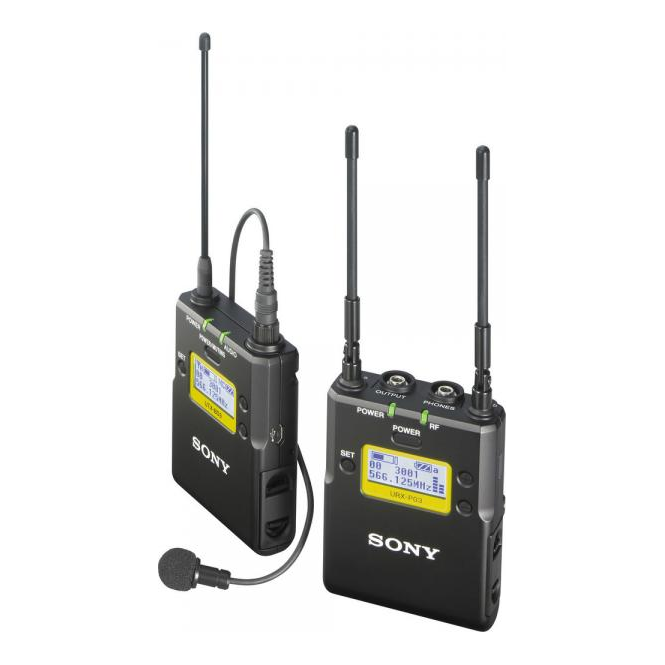

Sony Belt-pack Mic Package

Sony UWP-D11/K33PRO (UWP/D11/K33PRO, UWP_D11/K33PRO, UWP D11/K33PRO) Belt-pack Mic Package

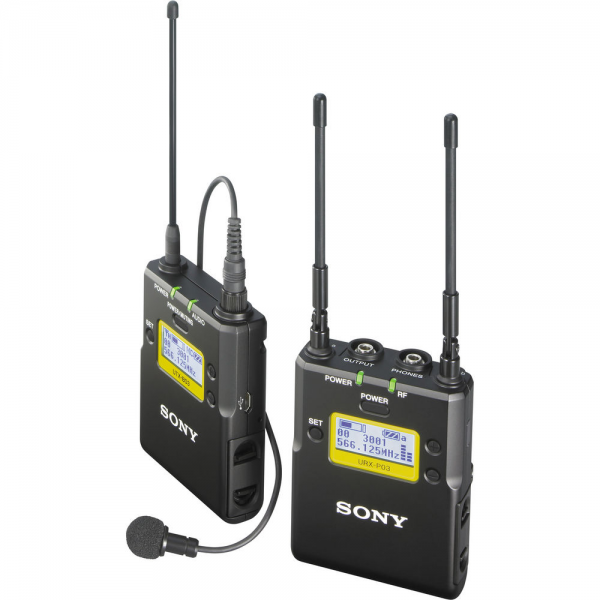

The UWP-D11 belt-pack wireless microphone package offers the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The package includes the UTX-B03 belt-pack transmitter and URX-P03 portable receiver. Also included is a high quality omni-directional lavalier microphone and a range of accessories including windscreen, microphone holder clip, belt-clip and shoe-mount adaptor.The UWP-D11 package offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size receiver to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

Digital Audio Processing for high quality sound

• Improves transient response performance between the UWP-D transmitter and receiver, which will provide impressive natural sound quality compared to conventional analogue wireless systems.

Complete package

• The UWP-D11 PRO kit comes as a complete package including the UTX-B03 belt-pack transmitter, URX-P03 portable receiver, omni-directional lavalier microphone, plus an extra ECM-77BMP lavalier microphone, and everything you need to operate the wireless audio system.

Wide frequency coverage with choice of channels available

• The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.

Large display and small size receiver

• The transmitter and receiver both feature a large display for ease of use, while the small size receiver fits neatly on any size camcorder or DSLR camera.

Easy to use features

• Automatic channel setting function, headphone output, USB connection for power supply and line input availability.

URX-P03 Portable Receiver

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: Space diversity
• Antenna Type: 1/4 wave length wire
• Carrier Frequencies: CE33: 566.025 MHz to 633.000 MHz
• Frequency Response: 23Hz to 18kHz (typical)
• Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
• Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
• Audio Delay: Approx. 0.35 msec
• Analog Output: 3-pole mini jack, unbalanced
• Analog Output Level: -60dBV (at ±5kHz deviation)
• Analog Output Adjust Range: -12dB - +12dB (3dB step)
• Headphone Output: φ3.5 mm ( 5/32 inch) stereo mini jack
• Headphone Output Level: Max. 10mW (at 16ohm load)
• Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
• Display: LCD
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries), DC 5.0V (via USB micro-B)
• Battery Operating Time: Approx. six hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F)
• Operating Temperature: 0°C to 50°C, 32°F to 122°F
• Storage/Transport Temperature: -20°C to +55°C, -4°F to +131°F
• Dimensions: 63 x 82 x 23.8mm (excluding the anntenas) (W x H x D)
• Mass: Approx. 176 g (including batteries)

UTX-B03 Bodypack transmitter

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: 1/4 wave length wire
• Type of Emission: F3E
• Operating Frequencies: CH42 638.025-694.000 [MHz]
• RF Power: 30mW / 5mW
• Capsule Type
• Directivity: Omni-directional
• Input Connector: 3-pole locking mini jack
• Reference Input Level: MIC: -60 dBV (at 0-dB attenuator level), LINE: +4 dBu
• Audio Attenuator Adjustment Range: 0 dB to 21 dB (in 3-dB steps): Mic input
• Frequency Response: Transmission: 23Hz to 18kHz (typical)
• Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
• Audio Delay: Approx. 0.35 msec
• Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
• Display: LCD
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries), DC 5.0V (via USB micro-B)
• Battery Operating Time: Approx. eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F) at 30-mW
• Operating Temperature: 0°C to 50°C, 32°F to 122°F
• Storage/Transport Temperature: -20°C to +55°C, -4°F to +131°F
• Dimensions: 63 x 82 x 20 mm (excluding the anntenas) (W x H x D)
• Mass: Approx. 149 g (including batteries)

ECM-77BMP Lavalier Microphone

• Capsule Type: Electret Condenser
• Frequency Response: 40 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity [1]: -39.0 dB (11.2 mV)
• Output Impedance [2]: 2.5kΩ±30%, Unbalanced
• Dynamic Range: 90 dB or more
• Signal-to-Noise Ratio [3]: 64 dB or more
• Inherent Noise [4]: 30 dB SPL or less
• Induction Noise From External Magnetic Field [5]: 5 dB SPL or less
• Wind Noise [6]: 40 dB SPL or less (with windscreen)
• Maximum Input Sound Pressure Level [7]: 120 dB SPL
• Connector: BMP type. Supplied with o3.5 mm, 3-pole mini plug.
• Mic Cable: 3.9 feet (1.2 m)
• Power Requirements: DC 1.1 V to 10.0V
• Power Consumption: 0.4 mA or less
• Dimensions [8]: φ5.6 X 12.5 mm (Mic head), φ1/4 X 1/2 inches (Mic head)
• Mass: Approx. 22.7 g (0.8 oz)
• Supplied Accessories: Single/horizontal type tie clip (1), Metal-mesh type windscreen (1)

In the box

• 1x UTX-B03 belt-pack transmitter
• 1x URX-P03 portable receiver
• 2x omni-directional lavalier microphones
• 2x windscreens
• 2x microphone holder clip
• 2x belt clip
• 1x shoe-mount adaptor
• 1x 3-pole locking mini plug/XLR-3-12C (male)
• 1x 3-pole locking mini plug/Stereo mini plug
• 1x CD-ROM (including operating instructions and wireless microphone frequency list)
