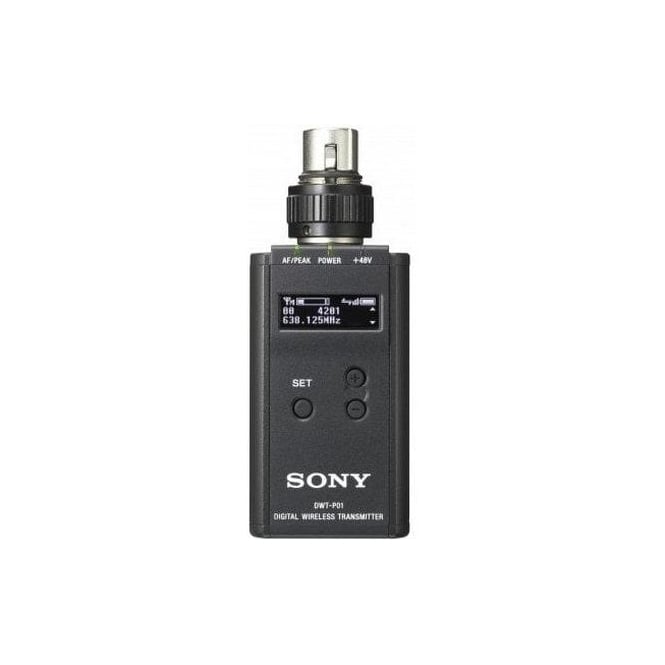

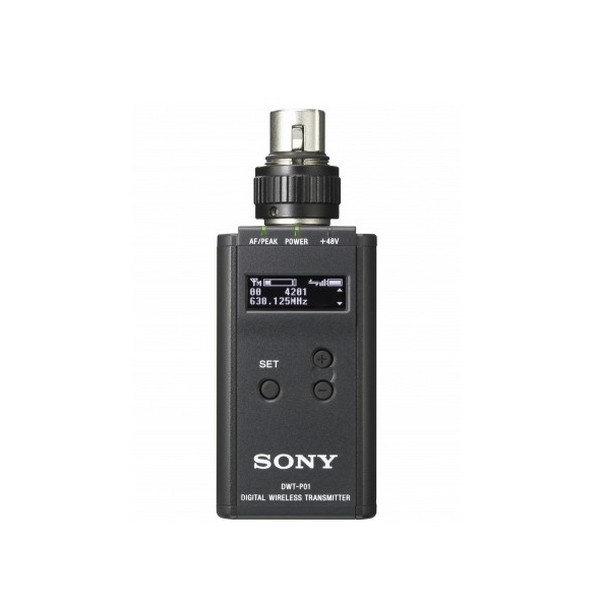

Sony Digital Plug-in Transmitter - Ch. 42

Sony DWT/P01/E42 (DWT_P01_E42, DWT-P01/E42, DWT/P01/E42) Digital Plug-in Transmitter - Ch. 42

The transmitter features 48V phantom power for condenser microphones, and digital audio processing for lower noise and longer, efficient range.

Up to three selectable output power settings are provided for maximum results and improved battery efficiency.

Two AA alkaline batteries power the DWT-P01 for up to 5 hours at the 10mW power setting. Additional features include an input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) that can be remotely controlled from the DWR-S01D digital wireless receiver.

• Supports mic or line input
• Audio and metadata transmission operates on UHF-TV channels 42 to 51 (638 to 698 MHz)
• Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
• Compact, lightweight and built with a sturdy die-cast magnesium body
• 5 hr battery life using two AA alkaline batteries @ 10 mW power setting
• Selectable output power 1 / 10 /50mW

• Type of Transmitter UHF digital plug-in
• # Of Channels: 188
• Carrier Frequency: 638 to 698 MHz (TV channels 42 to 51)
• Type of Input Connector: 3-pin XLR
• Frequency Response: 20Hz to 20kHz
• Battery Type/Approx. Life: Approximately 5 hr at 10 mW output using alkaline batteries
• Power requirements:: DC 3.0V, (two AA size batteries)
• RF Output: 1mW / 10mW / 50mW
• Level Control: Max. -22dBu (with 0dB attenuator) mic; +24dBu line
• Antenna Type: 1/4 wave
• Emission: G1E or G1D
• Audio Input Level: Max. -22 dBu (with 0 dB attenuator) mic; +24dBu line
• Connector: XLR-3, female
• Display: LED display
• Compatibility: For use with DWL series wireless products operating on the same frequencies
• Dimensions (WxHxD): 1 3/4 x 1 3/4 x 1 1/2" (63 x 73 x 17mm)
• Weight: 9 oz including batteries

In the box

• Sony DWT-P01 Digital Plug-in Transmitter - Ch. 42
• Spare Battery Case
• Softcase
• USB Adapter Cable
• USB Cable
• Frequency List
