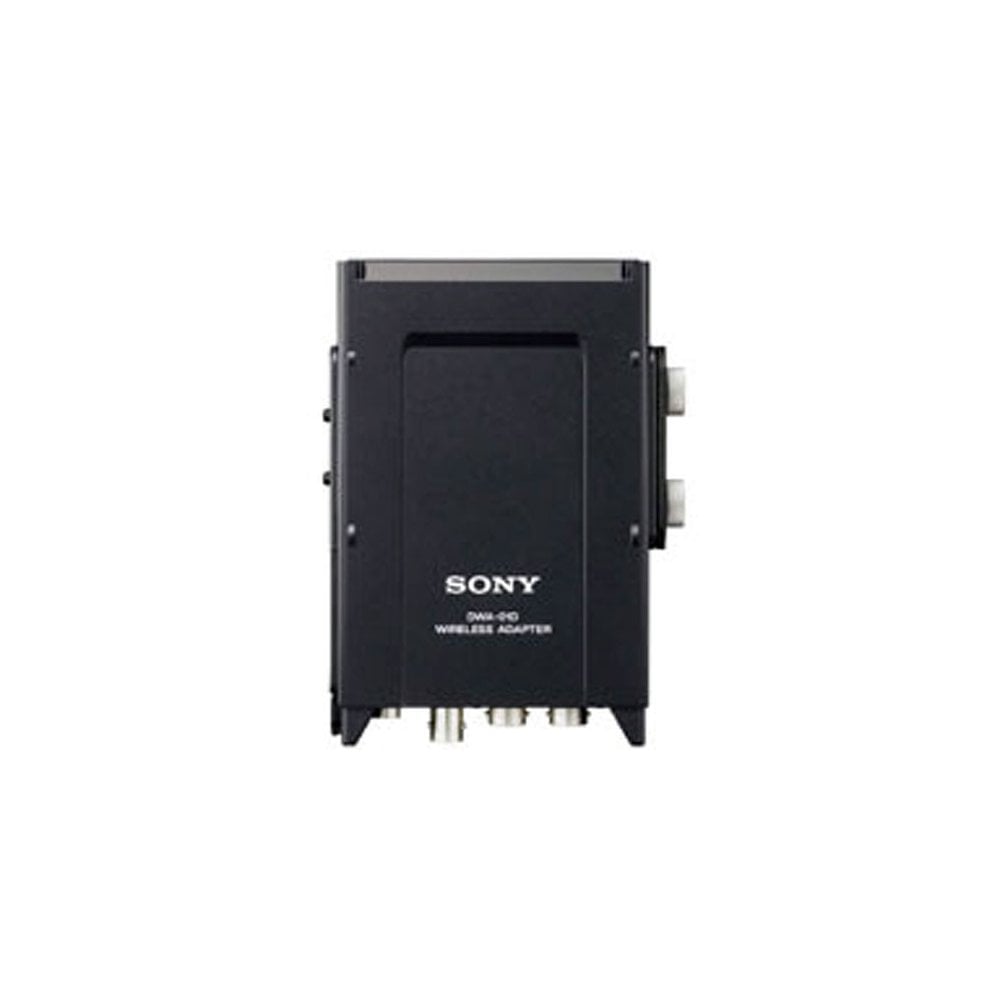

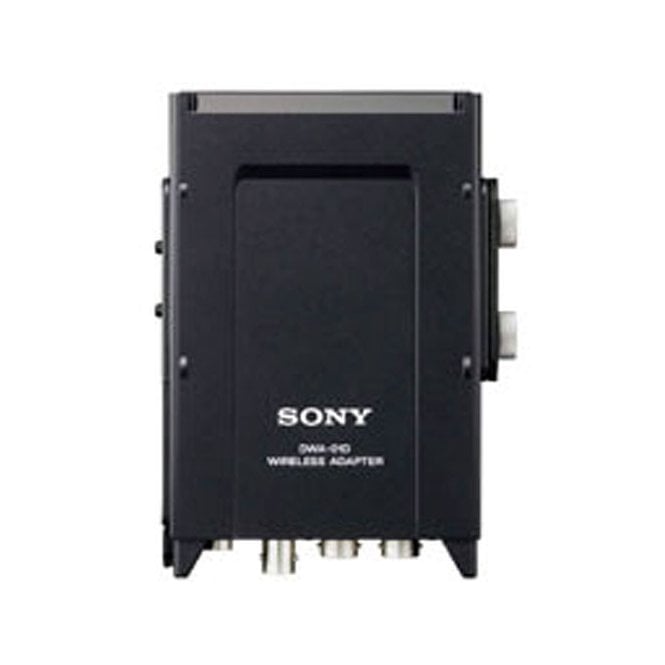

Sony DWA-01D Digital Wireless Receiver Adaptor

code: DWA-01D
  • 1027,03 â‚¬
  • RRP: 946,56 â‚¬
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

Multiple mounting options.

  • The DWA-01D can be used to mount DWR-S01D receiver on HDCAM/XDCAM/Digital Betacam/MPEG IMX camcorders.

Portable receiver solution.

  • The DWA-01D can also be used for housing the DWR-S01D when a portable solution is required. Particularly when used on location with digital audio mixers such as Sony DMX-P01.

Two-channel AES3 digital or analogue audio output

  • The DWA-01D is able to provide the user with ether a 2 Ch AES or analogue outputs.

Headphone output for monitoring

  • A headphone output is provided via a 3.5mm mini- jack. This provides for quick and easy audio monitoring.

External dc power.

  • External power can be easily connected via the power connector on the DWA-01D and the supplied 4-pin power cable.

Sony DWA-01D (DWA/01D, DWA_01D, DWA01D, DWA 01D, dwa-01d) Digital Wireless Receiver Adaptor

Sony is proud to introduce a digital wireless microphone system that offers high-quality full-digital operation and enhanced system performance - a perfect match for high-quality ENG/EFP applications.

Stable and Secure Transmission

Incorporating the newly developed digital modulator, the digital wireless microphone system allows highly stable wireless transmission that is extremely tolerant to unwanted interference.

Simultaneous Multi-channel Operation.

The digital wireless microphone system allows for large-scale multi-channel operations. Thanks to the newly developed digital modulator, the system realises an intermodulation-free, equally spaced channel allocation. The digital wireless transmission technology used in this system enables a significant increase in the number of simultaneous operations in comparison with current analogue wireless systems. For example, up to16 channels of simultaneous operation is possible in an 8-MHz operating band.

Audio Section
Analog Output:

  • SMC9-4S (female) (x2)
  • Output Impedance : 150 Ω or less

Digital Output:

  • SMC9-4S (female)
  • Reference output level : -36 dBFS/-20 dBFS (switchable)
  • Output Impedance : 110 Ω or less

Other Equipment
Headphone Output:

  • Output level : 50mW (16 Ω load, at T.H.D = 1 %)
  • o3.5 mm(5/32 inch) stereo mini jack

Word Sync:

  • Input Impedence : 75 Ω
  • Input connector : BNC-R
  • External Word Sync : 32 kHz to 96 kHz

General
Power Requirements:

  • 4-pin DC input
  • 10 V DC to 17 V DC (12 V DC nominal)

Operating Temperature:

  • 32°F to 122°F
  • 0°C to 50°C

Storage/Transport Temperature:

  • -4°F to +140°F
  • '-20°C to +60°C

Dimensions *[1]:

  • 88 x 144 x 31.5 mm
  • 3 1/2 x 5 3/4 x 1 1/4 inches
  • (W x H x D)

Mass:

  • Approx. 330 g (excluding receiver)
  • Approx. 11.6 oz (excluding receiver)

In the box

  • Sony DWA-01D Adapter
  • 1x Operating Instructions
  • 1x Mount plate
  • 1x DC power cable
  • 1x Audio cable
