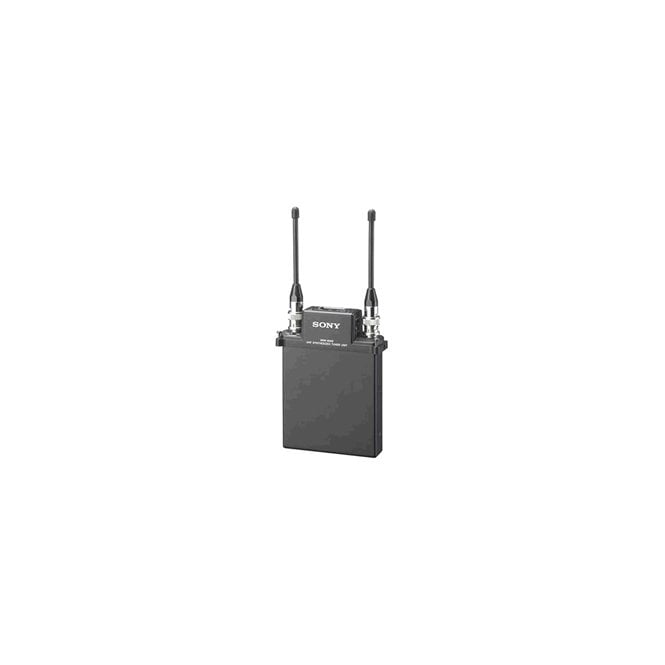

Sony UHF SX Diversity Receiver

code: WRR-855S//K38
  • $2,040.75
  • RRP: $2,040.75
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features

  • Designed for insertion into SX camcorders
  • Pilot Tone for seamless reception
  • Frequency scan of total switching bandwidth - RF spectrum scan for checking of RF disturbance at location.
  • Water resistant design
  • LED indications of received RF signal level and audio output
  • LED showing selected channel
  • Powered from camcorder - No battery operation option available.
  • Optional mounting adapter for use with other camcorders - Can be mounted on any other camcorder via optional mounting adapter (BTA-801 or BTA-802).
  • Large number of pre-programmed spot frequencies - Up to 64 spot frequencies available in one TV channel, with a maximum of 112 spot frequencies available depending on version.
  • Safe and reliable audio recording - The audio is recorder to any or both of track one and two on the SX camcorder, either with manual level control or AGC. In addition, the audio is recorded onto track three with AGC level control regardless of any other setting on the camera.

Sony WRR-855S//K38 (WRR/855S//K38, WRR_855S//K38, WRR 855S//K38) UHF SX Diversity Receiver

Cameramen invariably want to focus their attention to the picture. Since the sound in many a producers view is equally important, Sony has pioneered video cameras with provision for slot-in diversity receivers.

Employing the same advanced receiver module as the acclaimed WRR-850A, the user interface is still explicitly simple. A unique feature makes it virtually impossible to send a tape off with no audio or unusable audio levels on it.

With its latest implementation of the standard Sony technological advanced features and its ability to operate on a 24Mhz bandwidth covering TV bands 62 to 64 it is the perfect slot in camera receiver for any application where ease of use is as important as reliability, quality and safety.

This product comes with PrimeSupport – fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

Generic Specifications

  • Receiving channel number: 1 channel
  • Receiving frequency: WRR-855S/62: 798 MHz to 822 MHz (covering TV Channels 62-64), WRR-855S/K38: 606 MHz to 630 MHz (covering TV Channels 38-40)
  • Oscillator: 1st: PLL synthesizer, 2nd: PLL synthesizer
  • De-emphasis: 50 µs
  • Reference deviation: ± 5 kHz deviation at 1 kHz modulation, (Max. deviation: ±40 kHz modulation)
  • Selectivity: 60 dB or more at ±250 kHz
  • Spurious rejection: 80 dB or more
  • Frequency range: 40 to 18 kHz (typical)
  • Signal-to-noise ratio: 60 dB or more at 60 dBµ RF input at reference deviation, A-weighted
  • RF muting level: 10 dBµ or OFF selectable
  • Audio output level: -40 dBm at reference deviation
  • Audio output connector: D-sub 15-pin (1), balanced
  • Antenna connector: BNC-R type (2), 50 Ω (nominal) impedance
  • Operating voltage: DC 7 V
  • Current consumption: 200 mA or less at external DC 7 V
  • Dimensions (W x H x D): 88.0 x 119.0 x 31.3 mm, (3 1/2 x 4 3/4 x 1 1/4 inches)
  • Mass: 280 g (9.9 oz)
  • Supplied Accessories: Antenna2, Operation manual

In the box

  • UHF SX Diversity Receiver
