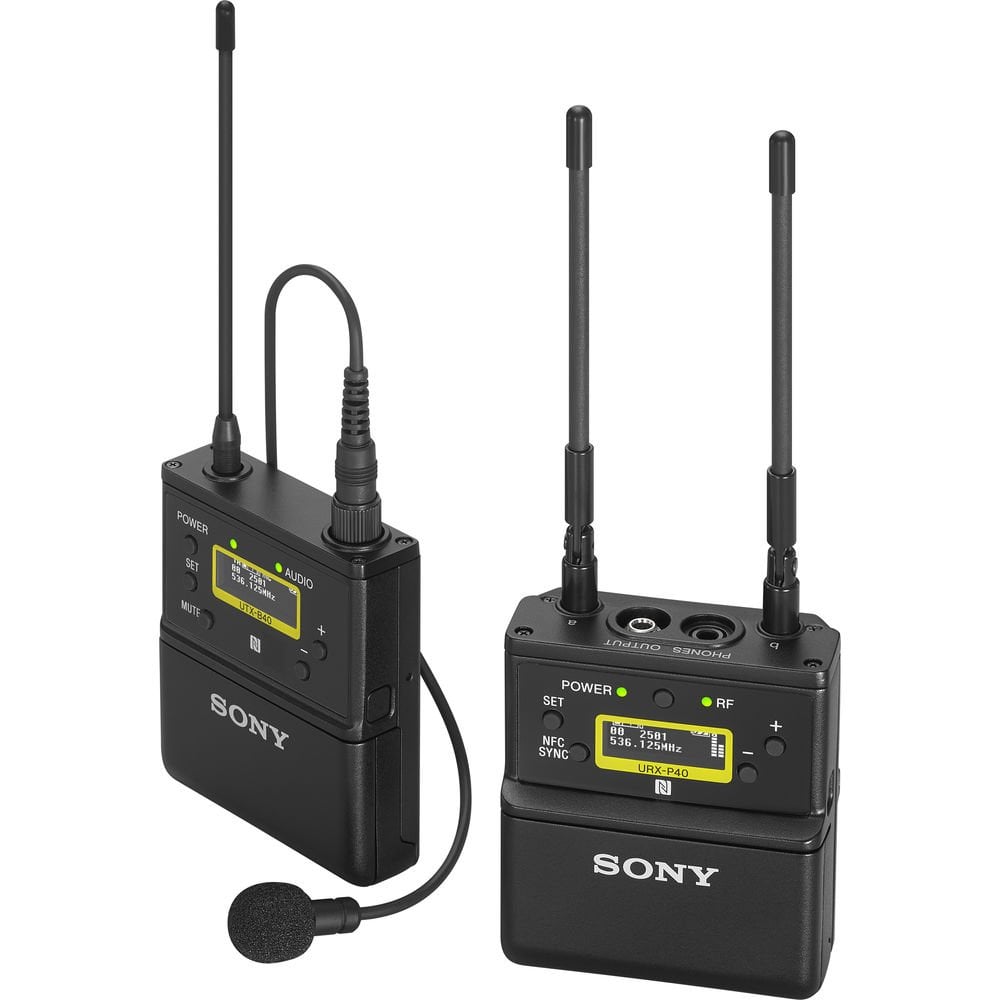

Sony UWP-D21-K21 UHF Wireless Lavalier Microphone Set

Sony UWP-D21-K21 (UWP-D21 K21, UWP-D21/K21, UWPD21K21, UWP_D21_K21, uwp-d21/k21) UHF Wireless Lavalier Microphone Set

The Sony UWP-D21 is a dependable camera-mount wireless lavalier microphone system that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The system is packed with professional features including NFC Sync and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds.

The UWP-D21 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes a bodypack transmitter with an ECM-V1BMP omnidirectional lavalier mic. It also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe. With the UWP-D21, you can focus on the other critical elements competing for your attention during a shoot and confidently record crisp, clear speech or dialog for projects ranging from documentaries to wedding videos, YouTube content, corporate spots, and hands-free interviews.

The UWP-D21 is backward-compatible with Sony WL-800 and UWP Series systems.

*** Please see that the item is a special order item.

System

• Wireless Transmission Analog UHF
• Number of RF Channels 2772
• Included Transmitters 1 x Bodypack
• Diversity True Diversity
• RF Frequency Band 470 to 542 MHz
• RF Bandwidth 72 MHz
• Frequency Step Size 25 kHz
• Max Operating Range 330' / 100.6 m (Typical)
• Max Systems per Setup 16
• Latency 0.35 ms
• Modulation FM
• Pilot Tone 32 / 32.382 / 32.768 kHz

Receiver

• Form Factor Camera-Mount
• Mounting Options Shoe-Mount (with Included Hardware)
• Antenna 2 x 1/4 Wave External, Fixed (Top-Mount)
• Number of Audio Channels 1
• Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
• 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
• Gain Range -12 to +12 dB (3 dB Steps)
• Audio Output Level -60 dBV
• Frequency Response 23 Hz to 18 kHz
• USB/Lightning Connectivity 1 x USB Type-C (Bus Power)
• Power Requirements Battery, Bus Power (USB)
• Battery Type 2 x AA (Not Included)
• Approx. Battery Life 6 Hours (Alkaline)
• Display & Indicators 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)

Housing Metal

• Operating Temperature 32 to 122°F / 0 to 50°C
• Storage Temperature -4 to 131°F / -20 to 55°C
• Dimensions 2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
• Weight 6.2 oz / 176.0 g (with Batteries)

Transmitter

• Form Factor Bodypack
• RF Output Power 5 / 30 mW
• Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
• Muting Mute Switch

Audio Input Level

• +60 dBV (Mic Level)
• +4 dBu (Line Level)
• Gain Range 0 to 21 dB (3 dB Steps)
• Frequency Response 23 Hz to 18 kHz

Sync Method NFC

• Antenna 1 x 1/4 Wave External, Fixed
• Power Requirements Battery, Bus Power (USB)
• Battery Type 2 x AA (Not Included)
• Approx. Battery Life 8 Hours (Alkaline)
• USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
• Display & Indicators 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)

Housing Metal

• Operating Temperature 32 to 122°F / 0 to 50°C
• Storage Temperature -4 to 131°F / -20 to 55°C
• Dimensions 2.5 x 3.2 x 0.8" / 63.0 x 82.0 x 20.0 mm (without Antennas)
• Weight 5.3 oz / 149.0 g (without Batteries)

Microphone

• Form Factor Lavalier
• Sound Field Mono
• Transducer Electret Condenser
• Polar Pattern Omnidirectional
• Frequency Range 40 Hz to 20 kHz
• Sensitivity -43 dB at 1 kHz
• Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
• Cable Length 3.9' / 1.19 m
• Operating Temperature 32 to 122°F / 0 to 50°C
• Storage Temperature -4 to 131°F / -20 to 55°C
• Length 0.77" / 19.5 mm
• Diameter 0.27" / 6.8 mm
• Weight 0.57 oz / 16.2 g

In The Box

• 1x Sony UTX-B40 bodypack
• 1x Sony URX-P40 receiver
• 1x Sony ECM-V1BMP lavalier microphone (omni-directional)
