Sony UWP-D26-K42 UHF Wireless Microphone Transmitter Package

Sony UWP-D26-K42 (UWP-D26/K42, UWP_D26_K42, UWPD26K42, UWP D26 K42, uwp-d26/k42) UHF Wireless Microphone Transmitter Package

The Sony UWP-D26 is a dependable camera-mount wireless combo microphone system that delivers uncompromising audio quality, while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The system is packed with professional features including NFC Sync and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds.

Rugged and lightweight, the UWP-D26 includes a bodypack transmitter with an ECM-V1BMP omnidirectional lavalier mic. Also included is a plug-on transmitter, which can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on provides 48V phantom power, giving you the option to use a condenser microphone.

The low-profile camera-mount receiver is designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras. It offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability-even under difficult shooting conditions.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe. With the UWP-D26 you can focus on the other critical elements competing for your attention during a shoot, and confidently record crisp, clear speech or dialog for projects ranging from documentaries to wedding videos, YouTube content, corporate spots, and hands-free interviews.

URX-P40 portable receiver

• Oscillator Type: Crystal-controlled PLL synthesizer
• Reception Type: True diversity method
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies:

• 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

Frequency Response:

• 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
• 40 Hz to 15 kHz (typical) (J model)

• Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
• Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay:

• Approx. 0.35 ms (analog output)
• Approx. 0.24 ms (digital output)
• Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, , external connection

Audio Output Level:

• –60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
• –20 dBFS (external connection, digital output, 0 dB audio output level)
• –50 dBFS (external connection, analog output, 0 dB audio output level)

• Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
• Headphone Output Connector: 3.5 mm diameter mini jack
• Headphone Output Level: Max. 10mW (16-ohm)

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)
• Battery Life*: Approx. six hours

*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 131 g (4.6 oz) (excluding batteries)

UTX-B40 bodypack transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wave length wire antenna
• Carrier Frequencies: 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF Output Power:

• 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
• 10 mW/2 mW selectable (J, E, KR models)

• Capsule Type: Elect retcondenser
• Directivity: Omni-directional
• Input Connector: 3.5 mm diameter 3-pole locking mini jack

Reference Audio Input Level:

• –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
• +4 dBu (LINE input )

• Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)

Frequency Response:

• 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
• 40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio:

• 60 dB (–60 dBV, 1 kHz input)
• 102 dB (GAIN MODE set to AUTO GAIN, max.)
• 96 dB (GAIN MODE set to NORMAL, max.)

• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)

Battery life*:

• Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
• Approx. 10 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: -20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 83 g (2.9 oz) (excluding batteries)

UTX-P40 XLR plug-on transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer

Carrier Frequencies:

• 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF Output Power:

• 40 mW/5 mW selectable (UC, U, LA models)
• 30 mW/5 mW selectable (CE, CN models)
• 10 mW/2 mW selectable (J, E, KR models)

• Input Connector: XLR-3-11C type (female)
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
• Audio Attenuator Adjustment Range: 0 dB to 48 dB (3 dB steps)

Frequency Response:

• 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
• 40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio:

• 60 dB (–60 dBV, 1 kHz input)
• 102 dB (GAIN MODE set to AUTO GAIN, max.)
• 96 dB (GAIN MODE set to NORMAL, max.)

• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)

Battery Life* During +48V OFF:

• Approx. 7 hours with output power of 40 mW (UC, U, LA models)
• Approx. 8 hours with output power of 30 mW (CE, CN models)
• Approx. 10 hours with output power of 10 mW (J, E, KR models)

During +48V ON and ECM-673 connection:

• Approx. 6 hours with output power of 40 mW (UC, U, LA models)
• Approx. 6 hours with output power of 30 mW (CE, CN models)
• Approx. 7 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony L R6/AA size alkaline batteries at 25 °C (77 °F).

• Operating Temperature: 0 °C t o 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 38 x 98 x 38 mm (1 1/2 x 3 7/8 x 1 1/2 in.) (W / H / D) (including the audio input connector)
• Mass: Approx. 139 g (4.9 oz) (excluding batteries)

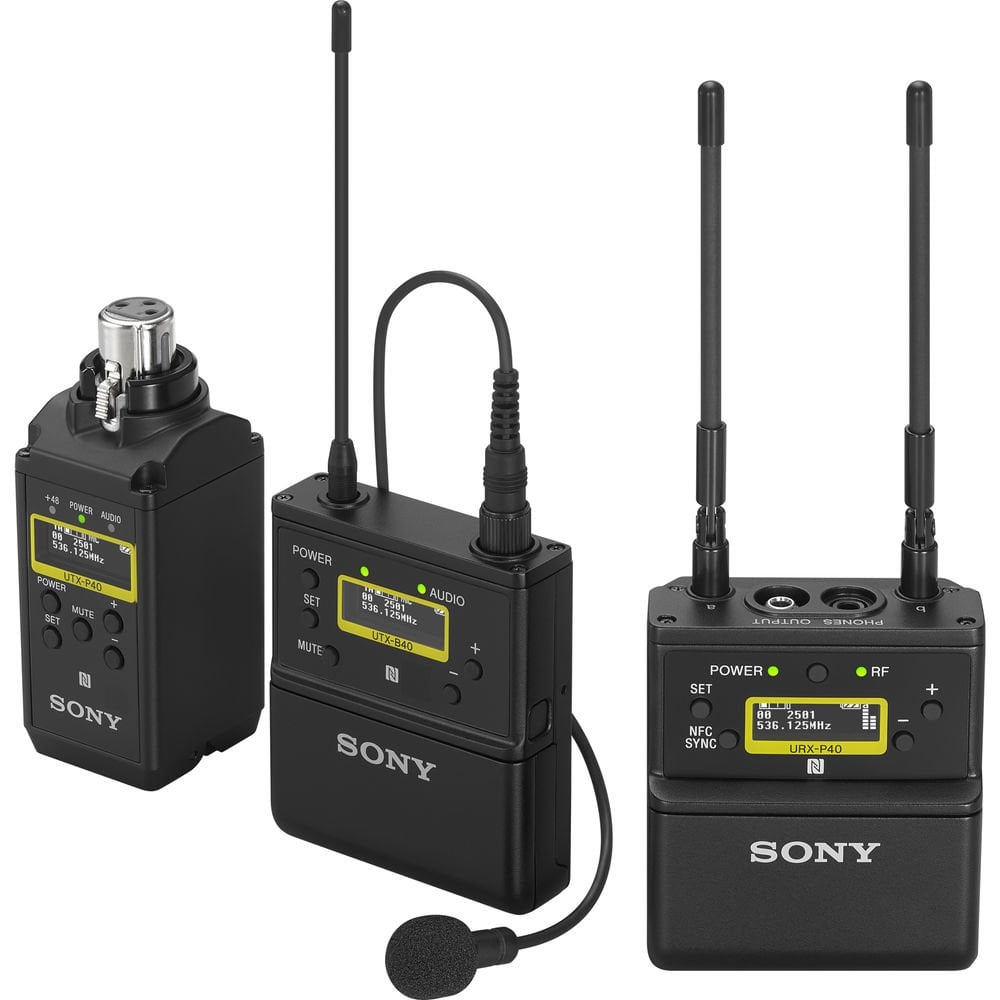

In The Box

• URX-P40 portable receiver
• UTX-B40 bodypack transmitter
• UTX-P40 XLR plug-on transmitter
