Sony UWP-D27/21KIT Wireless bodypack microphone Kit

Sony UWP-D27-21KIT (UWP/D27-21KIT, UWP/D27/21KIT, UWPD2721KIT, UWP D27 21KIT) Wireless bodypack microphone Kit

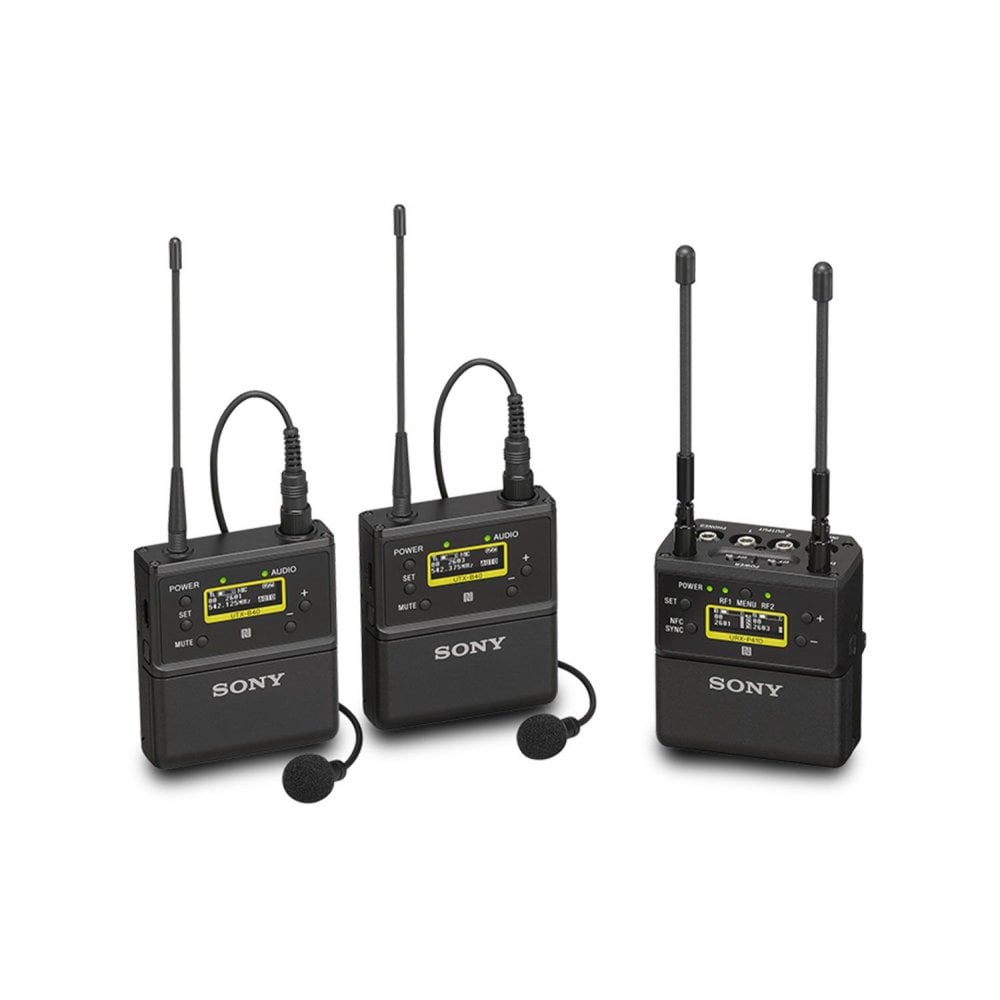

Wireless bodypack microphone package with the bodypack transmitter, 2-channel portable receiver, lavalier microphone, and accessories: easy to use with high-quality sound and seamless integration with Sony cameras.

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations, and other applications where you need to capture crisp, clear sound with minimum fuss.

The ECM-V1BMP Omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

*** Please see that this item is a special order item

UTX-B40 bodypack transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wave length wire antenna
• Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25), 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36), 42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51), 90UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz, 21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29), 33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40), 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48), 38CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35), E: 806.125 MHz to 809.750 MHz, KR: 925.125 MHz to 937.500 MHz
• RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)
• Capsule Type: Elect retcondenser
• Directivity: Omni-directional
• Input Connector: 3.5 mm diameter 3-pole locking mini jack
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0-dB attenuation) +4 dBu (LINE input)
• Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
• Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)
• Signal-to-Noise Ratio: 60 dB (–60 dBV, 1-kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)
• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms
• Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)
• Battery life: Approx. 8 hours with output power of 30 mW
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: -20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 83 g (2.9 oz) (excluding batteries)

URX-P41D Dual Channel Portable Receiver

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: Space diversity
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
• Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25), 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25–36), 42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42–51), 90U: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz, 21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29), 33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40), 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48), 29CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35), E: 806.125 MHz to 809.750 MHz, KR: 925.125 MHz to 937.375 MHz
• Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models), 40 Hz to 15 kHz (typical) (J model)
• Distortion (T.H.D): 0.9% or less (1-kHz sine wave, 5-kHz modulation)
• Signal-to-Noise Ratio: 60 dB (1-kHz sine wave, 5-kHz modulation), 96 dB (max deviation, A-weighted)
• Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)
• Analog Input: 3.5-mm diameter three-pole locking mini-jack (unbalanced)
• Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
• Audio Output level: –60 dBV (3.5-mm diameter three-pole locking mini-jack, analog output), –20 dBFS (external connection, digital output), –50 dBV (external connection, analog output)
• Audio Output Adjust Range: –12 dB to +12 dB (3-dB step)
• Audio Output connector: 3.5-mm diameter three-pole locking mini-jack (balanced), External connection
• Headphone Output Connector: 3.5 mm diameter mini jack
• Headphone Output Level: Max. 10 mW (16-ohm)
• Tone signal frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries), DC 5.0 V (supplied from USB Type-C connector)
• Battery Life: Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 × 70 × 35 mm (2.48 × 2.76 × 1.38 in) (W / H / D) (excluding antenna)
• Mass: Approx. 159 g (5.6 oz) (excluding batteries)

In The Box

• 1 x Sony URX-P41D Dual-Channel Camera-Mount Wireless Receiver
• 2 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
• 2 x Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
• 2 x Mic Clips
• 2 x Windscreens
• 3 x Belt Clips
• Shoemount Adapter for Receiver
• 2 x XLR to Locking 3.5mm Output Cables
• 3.5mm to Locking 3.5mm Cable
