Sony UWP-D27-K33PRO Pro Dual Channel Kit

Sony UWP-D27-K33PRO (UWP/D27-K33PRO, UWP/D27/K33PRO, UWPD27K33PRO, UWP D27 K33PRO) Pro Dual Channel Kit

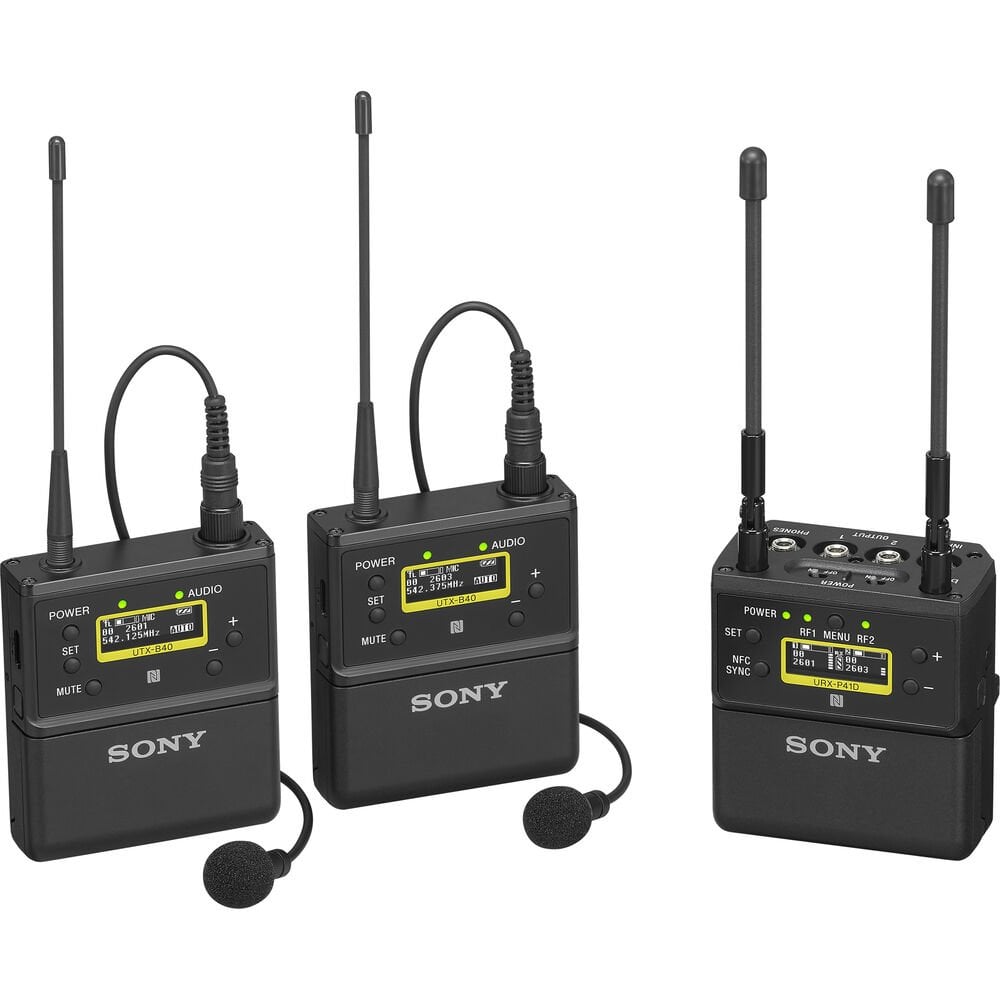

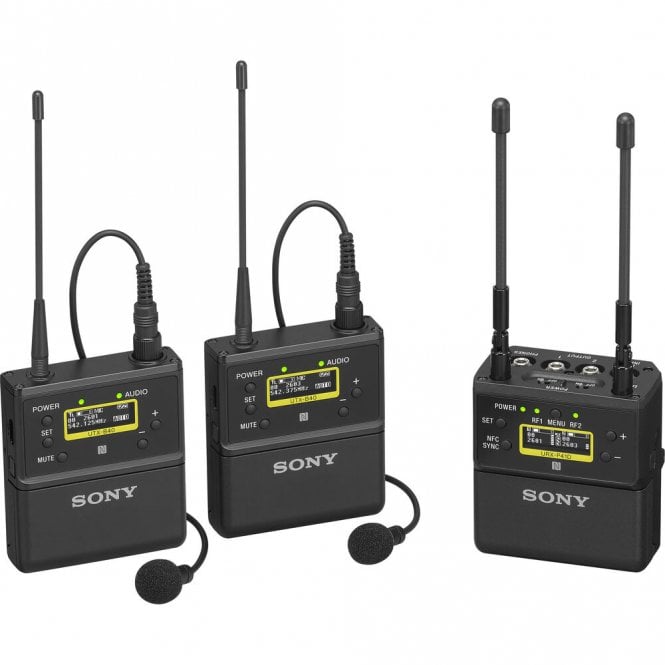

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations, and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

Made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew, the 4th-generation Sony UWP-D27 is a dependable 2-channel, camera-mount wireless lavalier microphone system that delivers uncompromising audio quality, while still being easy to use and fast to set up with no menu diving. This compact system is packed with professional features including one-button NFC Automatic Channel-Setting mode and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you?so you're ready to shoot two people talking simultaneously directly to your camera within seconds. It is ideal for documentaries, wedding videos, YouTube content, corporate spots, hands-free interviews, and more.

The UWP-D27 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes two bodypack transmitters, each with an ECM-V1BMP omnidirectional lavalier mic. It also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras. Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select Sony cameras equipped with a digital Multi Interface Shoe. The UWP-D27 is backward-compatible with Sony WL-800, UWP Series, and third-generation UWP-D transmitters.

UTX-B40 bodypack transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wave length wire antenna
• Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25), 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36), 42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51), 90UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz, 21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29), 33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40), 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48), 38CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35), E: 806.125 MHz to 809.750 MHz, KR: 925.125 MHz to 937.500 MHz
• RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)
• Capsule Type: Elect retcondenser
• Directivity: Omni-directional
• Input Connector: 3.5 mm diameter 3-pole locking mini jack
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0-dB attenuation), +4 dBu (LINE input)
• Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
• Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)
• Signal-to-Noise Ratio: 60 dB (–60 dBV, 1-kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)
• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms
• Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)
• Battery life: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models) Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: -20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 83 g (2.9 oz) (excluding batteries)

URX-P41D Dual Channel Portable Receiver

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: Space diversity
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
• Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25), 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25–36),42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42–51), 90U: 941.625 MHz to 951.875 MHz,, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz, 21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29), 33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40), 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48), 29CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35), E: 806.125 MHz to 809.750 MHz, KR: 925.125 MHz to 937.375 MHz
• Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models), 40 Hz to 15 kHz (typical) (J model)
• Distortion (T.H.D): 0.9% or less (1-kHz sine wave, 5-kHz modulation)
• Signal-to-Noise Ratio: 60 dB (1-kHz sine wave, 5-kHz modulation), 96 dB (max deviation, A-weighted)
• Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)
• Analog Input: 3.5-mm diameter three-pole locking mini-jack (unbalanced)
• Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
• Audio Output level: –60 dBV (3.5-mm diameter three-pole locking mini-jack, analog output), –20 dBFS (external connection, digital output), –50 dBV (external connection, analog output)
• Audio Output Adjust Range: –12 dB to +12 dB (3-dB step)
• Audio Output connector: 3.5-mm diameter three-pole locking mini-jack (balanced), External connection
• Headphone Output Connector: 3.5 mm diameter mini jack
• Headphone Output Level: Max. 10 mW (16-ohm)
• Tone signal frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries), DC 5.0 V (supplied from USB Type-C connector)
• Battery Life: Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 × 70 × 35 mm (2.48 × 2.76 × 1.38 in) (W / H / D) (excluding antenna)
• Mass: Approx. 159 g (5.6 oz) (excluding batteries)

In The Box

• 2x UTX-B40 Body-pack Transmitter
• 1x URX-P41D
• 1x SMAD-P5 MI Shoe
• 2x ECM-77BMP Pro Lav
• 1x Shoe mount adaptor
• 3x Belt clip
• 2x Holder Clip
• 2x Omni-Directional Lav Mic
• 2x Windscreen
• 2 x XLR to Locking 3.5mm Output Cables
• 1x Stereo mini plug-BMP conversion cable for the URX-P41D
