Sony UWP-D27 Wireless bodypack microphone Kit

Sony UWP-D27-K42 (UWP-D27/K42, UWP/D27/K42, UWPD27K42, UWP D27 K42) UWP-D27 Wireless bodypack microphone Kit

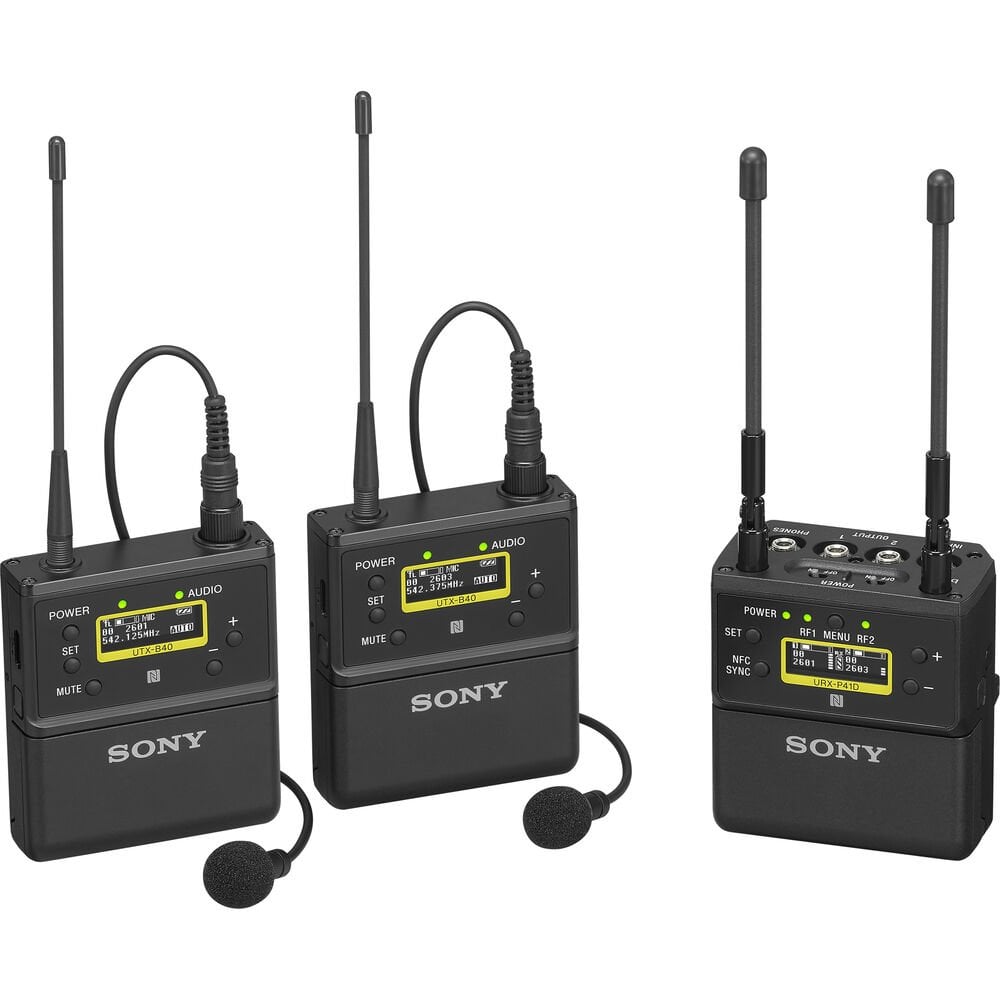

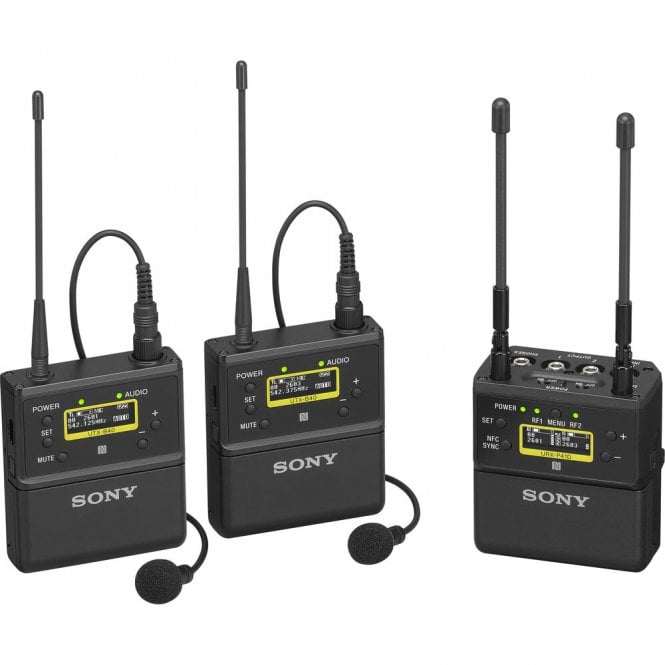

Wireless bodypack microphone package with bodypack transmitter, 2-channel portable receiver, lavalier microphone and accessories: easy to use with high-quality sound and seamless integration with Sony cameras.

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss.

The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee.

Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

UTX-B40 bodypack transmitter

• Carrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25), 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36), 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51), 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz, 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29), 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40), 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48), 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46), E : 794.125 MHz to 805.875 MHz, BJ : 806.125 MHz to 809.750 MHz, KR : 925.125 MHz to 937.500 MHz
• Capsule Type: Elect retcondenser
• Directivity: Omni-directional
• Input Connector: 3.5 mm diameter 3-pole locking mini jack
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation), +4 dBu (LINE input)
• Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
• Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)
• Signal-to-Noise Ratio: 60 dB (–60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)
• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz

URX-P41D Dual Channel Portable Receiver

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
• Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25), 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36), 42LA: 638.125 MHz to 697.875 MHz(UHF-TV channels 42-51), 90U: 941.625 MHz to 951.875 MHz, 953.000MHz to 956.125 MHz, and 956.625MHz to 959.625 MHz, 21CE: 470.025 MHz to 542.000 MHz(UHF-TV channels 21-29), 33CE: 566.025 MHz to 630.000 MHz(UHF-TV channels 33-40), 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48), 29CN: 638.025 MHz to 694.000 MHz(UHF-TV channels 29-35), E: 794.125 MHz to 805.875 MHz, BJ: 806.125 MHz to 809.750 MHz, KR: 925.125 MHz to 937.375 MHz
• Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models), 40 Hz to 15 kHz (typical) (J model)
• Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5kHz modulation)
• Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation), 96 dB (max deviation, A-weighted)
• Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)
• Analog Input: 3.5-mm diameter 3-pole locking mini jack (unbalanced)
• Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
• Audio Output level: –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output), –20 dBFS (external connection, digital output), –50 dBV (external connection, analog output)

In The Box

• 2x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
• 2x Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
• 2x Mic Clips
• 2x Windscreens
• 3x Belt Clips
• 1x Shoemount Adapter for Receiver
• 2x XLR to Locking 3.5mm Output Cables
• 1x 3.5mm to Locking 3.5mm Cable
