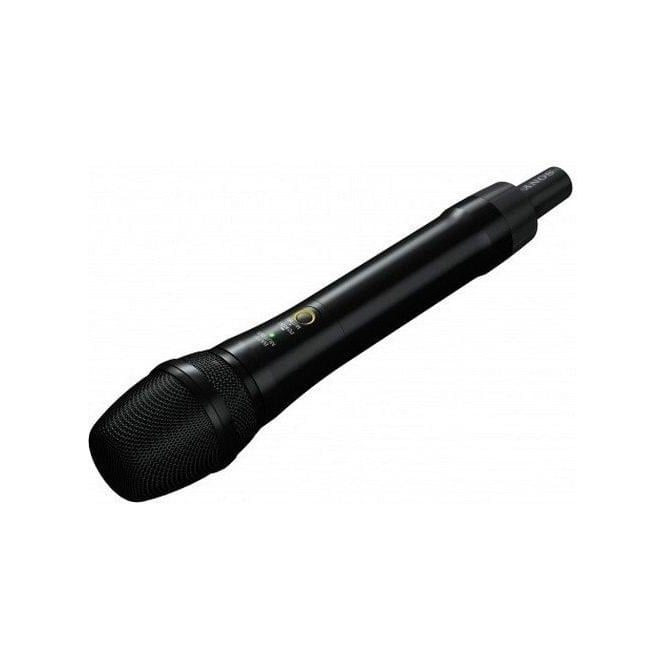

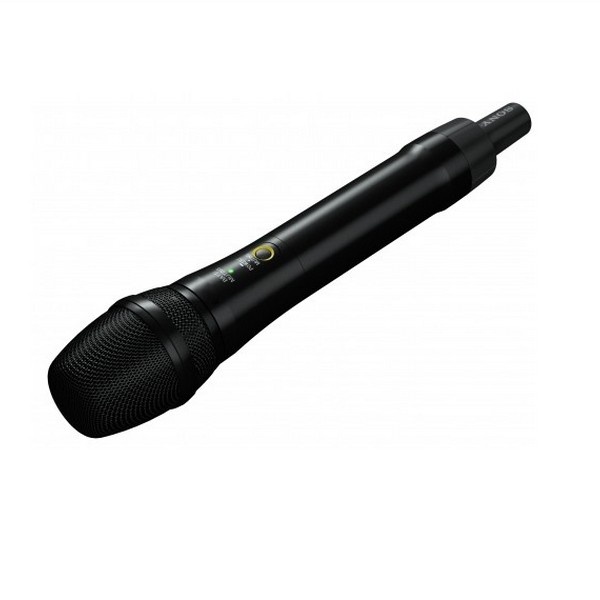

Sony ZTX-M02RC Digital Wireless Handheld Transmitter

Sony ZTX-M02RC (ZTX/M02RC, ZTX_M02RC, ZTX M02RC, ZTXM02RC, ztx-m02rc) Digital Wireless Handheld Transmitter

The ZTX-MO2RC Digital Wireless Handheld Transmitter from Sony features an interchangeable unidirectional microphone capsule and is designed for use with DMZ wireless systems.

The ZTX-MO2RC can transmit 24-bit linear PCM digital data in 128-bit encryption to provide secure and safe use. Its has two RF transmission modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in.

An integrated attenuator allows you to select from 0, 6, or 12dB of reduction directly from the microphone. The ZTX-MO2RC has a metal body designed for durability.

• Transmitter Type: Handheld
• Carrier Frequency: 2402.0 to 2478.5 MHz
• RF Power Output: 10 mW (e.i.r.p)
• Microphone Capsule: Dynamic
• Directivity: Unidirectional
• Maximum Input Level: 142 dB SPL (with 12 dB attenuator)
• Attenuation: 0, 6, 12 dB
• Frequency Response: Transmission: 10 Hz to 22 kHz, Microphone: 70 Hz to 16 kHz
• Dynamic Range: 102 dB, A-weighted
• Audio Delay: Narrow Band: 3 ms, approximate, Wide Band: 6 ms, approximate
• Distortion (THD): 0.03% or less (-38 dBu, 1kHz input)
• Encryption: AES 128-bit
• USB: 1x USB for firmware update
• Power Requirement: 2x AA alkaline dry cell batteries
• Battery Operating Time: 10 hours continuous use, approximate (77°F, 25°C ambient temperature, with 2x Sony LR6 AA Alkaline dry cell batteries)
• Operating Temperature: 32 to 122°F (0 to 50°C)
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Dimensions (Ø x L): 1.8 x 10" (48 x 258 mm)
• Weight: 11 oz (308 g), approximate, including batteries

In the box

• Sony ZTX-MO2RC Digital Wireless Handheld Transmitter
• Mic Holder
• SAD-34 Screw Stand Adapter
• Sad-35 Screw Stand Adapter
