Swit Dual Channel Wireless Microphone

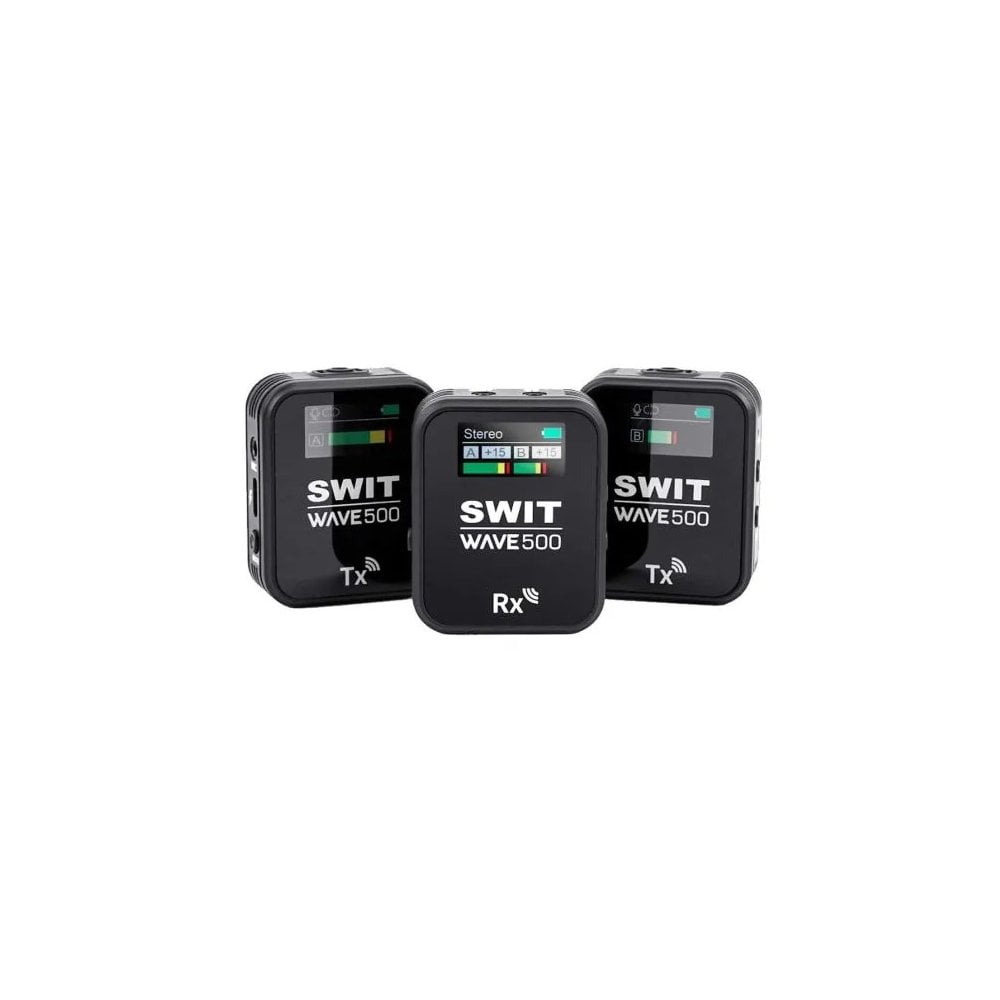

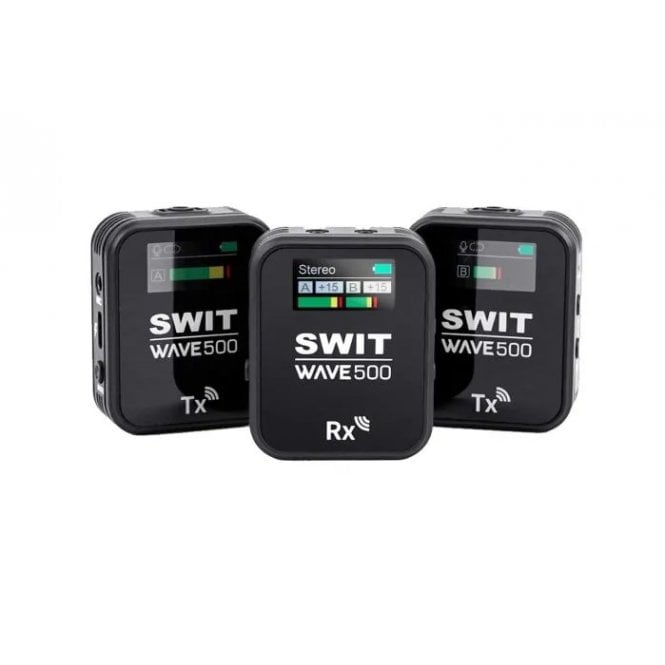

SWIT Dual Channel Wireless Microphone(WAVE500)

WAVE500 is a compact size 2.4G wireless microphone with dual channel Transmitters and 1 stereo Receiver, to simultaneously record two sound sources in livestreaming.

500ft Wireless Receiving

The Receiver could be mounted to cameras by code shoe, output 3.5mm stereo audio of crystal clear broadcast quality to the camera to record with video.

The wireless transmits up to 500ft range, zero latency and full synchronization.

Smart Phone Recording

You can also connect the Receiver 3.5mm audio output to smart phones to make livestreaming. Please use IMF certificated 3.5mm to lightning adaptor, and use 4-section 3.5mm jack to the adaptor, and 3-section 3.5mm jack to the Receiver.

The Transmitter

The Transmitter has a built-in Mic on the top side, and could connect external Mic input. Support one-key mute and one-key low cut function, to filter out ＜180Hz background noise, like air conditioner or computer fans

The Receiver

The Receiver has a 3.5mm audio output socket and a 3.5mm headphone monitoring socket on the top side; supports audio Gain adjustment for each channel, and Mono / Stereo switching.

Display Screen on Both Tx and Rx

The Transmitter screen displays channel (A or B), audio meter, mute status, low cut status, and battery status.

The Receiver screen displays audio meters and gain value for both 2 transmitter channels, stereo or mono modes, and battery status.

8 hours Battery, 3-in-1 Charging

Both the WAVE500 Tx and Rx have internal battery, could ensure 8 hours continued working. The package provides a 3-in-1 USB-C charging cable to charge 2x Tx and 1x Rx simultaneously. It takes 1 hours to charge to 80%, and 1.5 hours to fully charged.

TX Transmitter:

Wireless Transmission Digital 2.4GHz

RF Frequency Band 2400-2483.5MHz

Frequency Response 20Hz-20KHz

Working Distance 500ft/150m (LOS)

Mounting Pocket clip and Cold shoe

Audio Input 1/8" / 3.5mm TRS Mic input

Audio Input Level 1V (0dBV)

Power Consumption 3.3V-4.7V

Inner Battery 400mAh, 8 hours run time

Charging Port USB Type C

Charging Time 1.5 hours

Dimensions 52x42x17mm

Weight 39g

RX Receiver:

Wireless Transmission Digital 2.4GHz

RF Frequency Band 2400-2483.5MHz

RF Sensitivity -81dBm

Working Distance 500ft/150m (LOS)

Mounting Pocket clip and Cold shoe

Audio Channels 2 channels

Audio Output 1/8" / 3.5mm TRS Mic output

1/8" / 3.5mm TRS Headphone output

Gain 0-5 level

Audio Output Level Line out: 1V; Headphone out: 25-30mW

Power Consumption 3.3V-4.7V

Inner Battery 400mAh, 8 hours run time

Charging Port USB Type C

Charging Time 1.5 hours

Dimensions 52x42x17mm

Weight 39g

Microphone:

Form Factor Built-in / External Mic

Sound Field Mono

Polar Pattern Omnidirectional

Frequency Range 50Hz-20KHz

Sensitivity -40dB (±3dB, re 1V/Pa at 1KHz)

Maximum SPL 135dB SPL (at 1KHz)

In the Box

1x RX Reciever Kit

2x TX Transmitter

1x Carrying Bag

2x Mic Windshield

1x Eject Pin

1x 3-in-1 USB-C Charging Cable

2x External Lac Mic (with Wind Muff)

1x 3.5 TRRS Phone Cable

1x 3.5mm TRS Camera Cable
