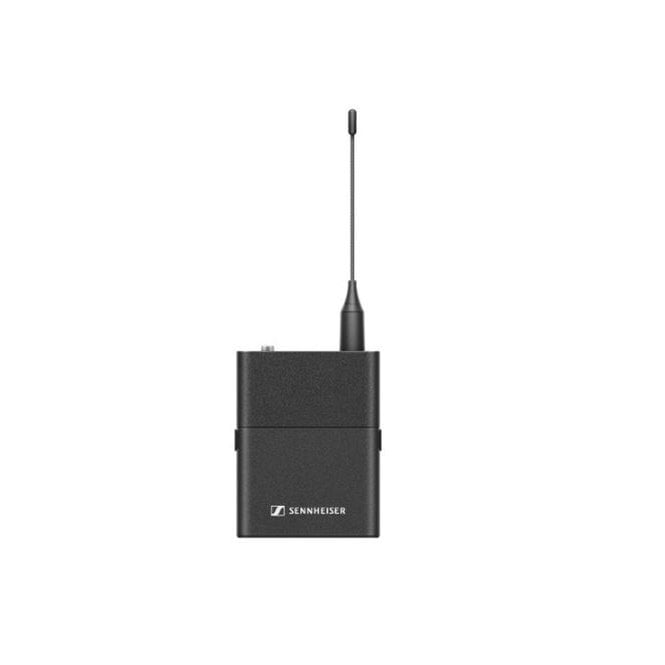

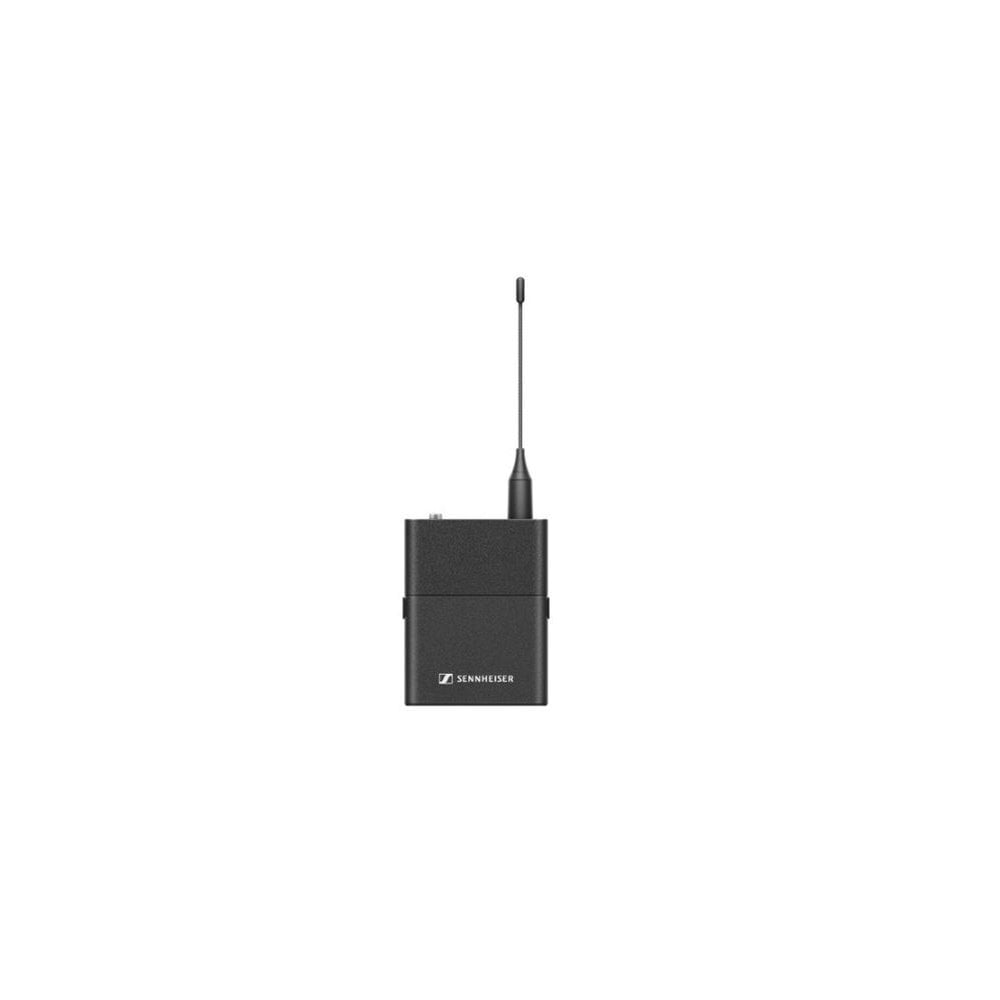

Sennheiser EW-D SK (S1-7) 606.2 - 662 MHz

Sennheiser EW-D SK (S1-7) 606.2 - 662 MHz

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

Features

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

Auto scan creates reliable connections with minimal time and effort

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

2,240 selectable frequencies allow for fine tuning

Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Top Specs

Read More

Dimensions

63 x 80 x 20 mm (without antenna)

Weight (g)

approx. 120 g

Latency (ms)

1.9 ms

Technical Specifications

Dimensions 63 x 80 x 20 mm (without antenna)

THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level

Weight approx. 120 g

Operating temperature -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity 5 - 95 % (non-condensing)

Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Input voltage range 2.0 - 4.35 V

Current consumption < 300 mA

Power supply 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Transmission power Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Features

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

Auto scan creates reliable connections with minimal time and effort

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

2,240 selectable frequencies allow for fine tuning

Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

In the box:

1 x Sennheiser EW-D SK (S1-7)
