Sony UWP-D27 Wireless Audio Kit (TV-channel 33-41, 566,025-630,000 MHz)

Sony UWP-D27 Wireless Audio Kit (TV-channel 33-41, 566,025-630,000 MHz)

UWP D27 K33 UWPD27K33 UWP-D27-K33 UWP/D27/K33

Wireless Bodypack Microphone Package

This package includes a bodypack transmitter, 2-channel portable receiver, lavalier microphone, and accessories. It is easy to use, delivers high-quality sound, and integrates seamlessly with Sony cameras.

The UWP-D27 is a complete wireless audio solution, perfect for on-camera interviews, live presentations, and other scenarios where capturing crisp, clear sound with minimal hassle is essential.

The ECM-V1BMP omni-directional lavalier microphone connects to the lightweight and compact UTX-B40 bodypack transmitter, which is worn by the interviewee.

Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, ensuring quick and easy pairing between the transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

UTX-B40 bodypack transmitter

Carrier Frequencies

• 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
• 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
• 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
• 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
• 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
• 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
• 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
• E : 794.125 MHz to 805.875 MHz
• BJ : 806.125 MHz to 809.750 MHz
• KR : 925.125 MHz to 937.500 MHz

Capsule Type

• Elect retcondenser

Directivity

• Omni-directional

Input Connector

• 3.5 mm diameter 3-pole locking mini jack

Reference Audio Input Level

• –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
• +4 dBu (LINE input)

Audio Attenuator Adjustment Range

• 0 dB to 27 dB (3 dB steps)

Frequency Response

• 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
• 40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio

• 60 dB (–60 dBV, 1 kHz input)
• 102 dB (GAIN MODE set to AUTO GAIN, max.)
• 96 dB (GAIN MODE set to NORMAL, max.)

Distortion

• 0.9% or less (–60 dBV, 1 kHz input)

Tone Signal Frequency

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

URX-P41D Dual Channel Portable Receiver

Oscillator Type

• Crystal-controlled PLL Synthesizer

Antenna Type

• 1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies

• 14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
• 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
• 42LA: 638.125 MHz to 697.875 MHz(UHF-TV channels 42-51)
• 90U: 941.625 MHz to 951.875 MHz, 953.000MHz to 956.125 MHz, and 956.625MHz to 959.625 MHz
• 21CE: 470.025 MHz to 542.000 MHz(UHF-TV channels 21-29)
• 33CE: 566.025 MHz to 630.000 MHz(UHF-TV channels 33-40)
• 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48)
• 29CN: 638.025 MHz to 694.000 MHz(UHF-TV channels 29-35)
• E: 794.125 MHz to 805.875 MHz
• BJ: 806.125 MHz to 809.750 MHz
• KR: 925.125 MHz to 937.375 MHz

Frequency Response

• 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models)
• 40 Hz to 15 kHz (typical) (J model)

Distortion (T.H.D)

• 0.9% or less (1 kHz sine wave, 5kHz modulation)

Signal-to-Noise Ratio

• 60 dB (1 kHz sine wave, 5 kHz modulation)
• 96 dB (max deviation, A-weighted)

Audio Delay

• Approx. 0.35 ms (analog output)
• Approx. 0.24 ms (digital output)

Analog Input

• 3.5-mm diameter 3-pole locking mini jack (unbalanced)

Analog Input Level

• -50dBV (±12dB Adjustable, 3-dB step)

Audio Output level

• –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output)
• –20 dBFS (external connection, digital output)
• –50 dBV (external connection, analog output)

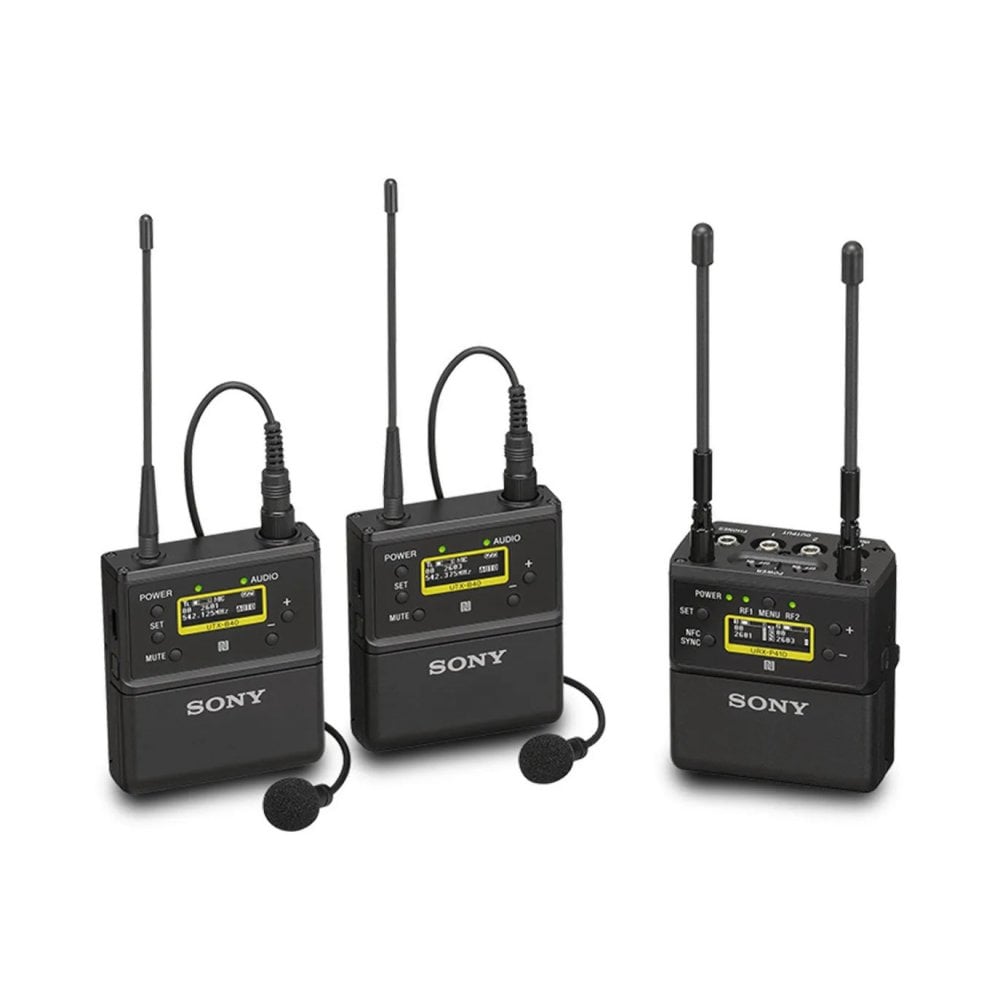

In The Box

• 2x UTX-B40 Body-pack Transmitter
• 1x URX-P41D
• 1x Shoe mount adaptor
• 3x Belt clip
• 2x Holder Clip
• 2x ECM-V1BMP Omni-Directional Lav Mic
• 2x Windscreen
• 2x XLR-BMP conversion output cable for the URX-P40/URX-P41D
• 1x Stereo mini plug-BMP conversion cable for the URX-P41D
