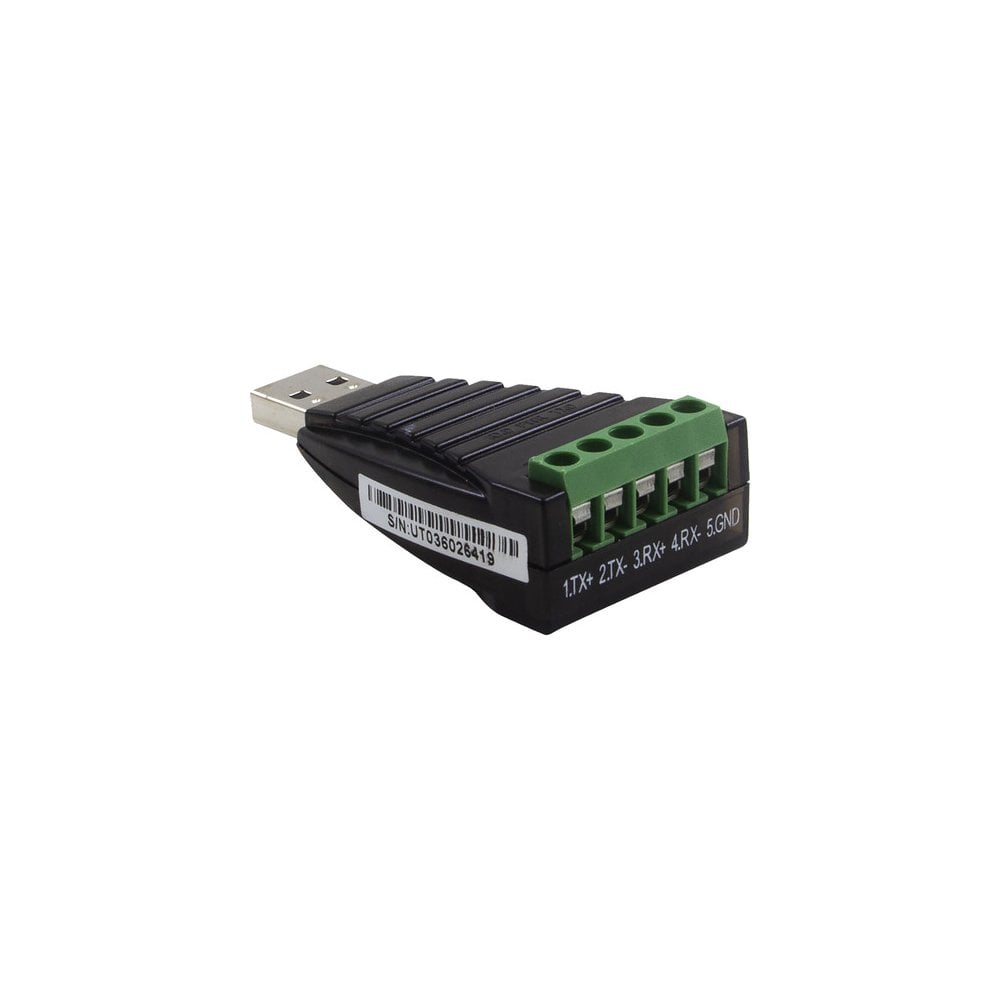

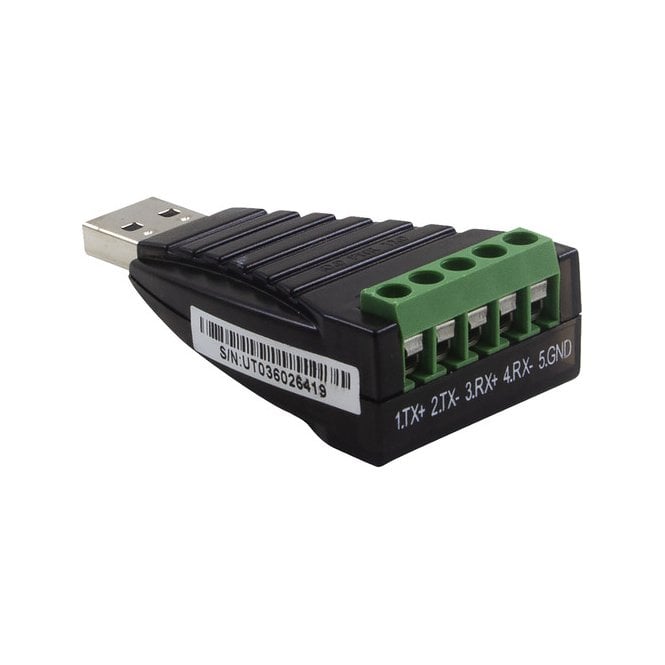

Marshall CV-USB-RS485 USB to RS485 Adaptor Converter

Marshall CV-USB-RS485 (CV/USB/RS485, CV_USB_RS485, CVUSBRS485, CV USB RS485, cv-usb-RS485) USB to RS485 Adaptor Converter

Marshall USB to RS485 Adaptor Converter with Marshall Camera Control Software (Windows).

USB Type

• USB Type-A for data output and terminal pin assignment

Connectors

• 5 x DB9 male

Output Signal

• DB9 Connector 1: T/R+
• DB9 Connector 2: T/R-
• DB9 Connector 3: RXD+
• DB9 Connector 4: RXD-
• DB9 Connector 5: Ground

RS-422

• RS-422 full-duplex
• DB9 Connector 1: Send(A+)
• DB9 Connector 2: Send(B-)
• DB9 Connector 3: Receive(A+)
• DB9 Connector 4: Receive(B-)
• DB9 Connector 5: Ground Wire

RS-485

• RS-485 half-duplex
• DB9 Connector 1: RS-485(A+)
• DB9 Connector 2: RS-485(B-)
• DB9 Connector 3: Empty
• DB9 Connector 4: Empty
• DB9 Connector 5: Ground Wire

In the box

• Marshall USB to RS485 Adaptor Converter
