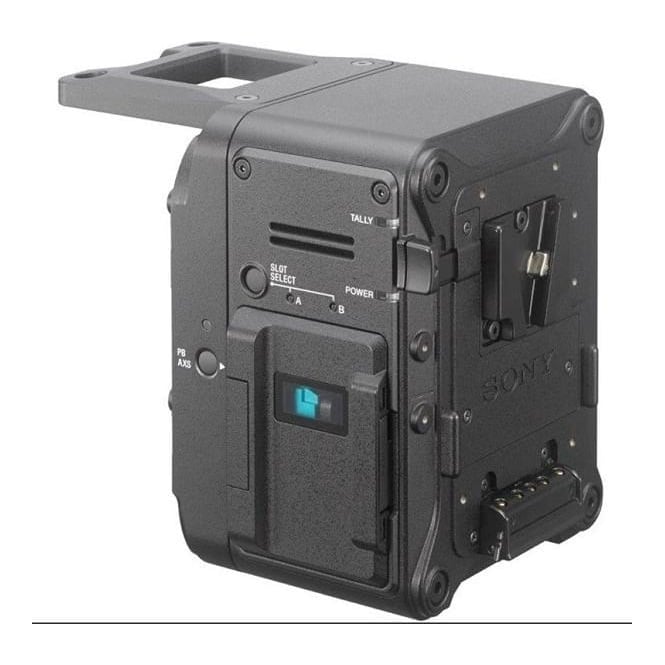

Sony 2K and 4K RAW External Recorder for use with PMW-F5, PMW-F55 cameras

Sony AXS-R7 (AXS/R7, AXS_R7, AXS R7) 2K and 4K RAW External Recorder for use with PMW-F5, PMW-F55 cameras

4K RAW / X-OCN recording at 120 fps* and cache recording speeds up 4K production workflow

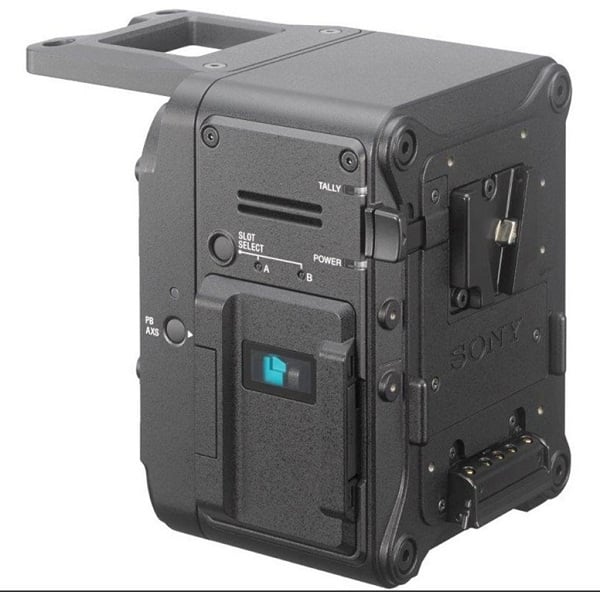

The durable, dust and splash-proof AXS-R7 Portable Memory Recorder attaches seamlessly to the high end F55 and F5 CineAlta cameras, speeding up the 4K production workflow without compromising quality. The AXS-R7 doubles 4K RAW recording from 60 fps up to 120 fps for the F55 camera compared to previous Sony recorders. For shooting at higher frame rates, the recorder captures 2K RAW at up to 240 fps for the F55 and F5, for playback with 10x super slow motion. Working with high-speed AXSM™ A Series memory cards, the recorder features dual memory card slots for extra security and to extend recording times. The recorder also offers 4K RAW cache recordings up to 30 seconds while in standby mode. The tough, all-metal casing makes the AXS-R7 the ideal companion to the F55 and F5 for all kinds of high-end drama, documentary and wildlife productions.

In addition to AXS-R7 has new recording format, X-OCN. This new format support the high quality workflows at moderate bitrate. The system retains everything the sensor sees, delivering tonal gradation with 16-bit precision, ideal for High Dynamic Range (HDR) image grading and other cutting-edge workflows that require higher than 10-bit or 12-bit precision.

* 4K RAW / X-OCN 120 fps recording only available for F55.

• Camera Attachment: Quick-release mounting bracket
• Memory Slots: Two
• Video Formats: RAW, X-OCN (ST and LT)
• Audio: Linear PCM (48 kHz / 24-bit), 4-channel
• Connectors: 1 x Interface (144-pin, supplies power), 1 x DC in (XLR 4-pin, male)
• 1 x DC out (Hirose 4-pin, female for Tally and Rec trigger), 1 x Battery (5-pin)
• Buttons: Playback selection (SXS or AXS), Slot selection (slot A or B)
• Power: 11 to 17 VDC
• Power Consumption: Approximately 28 W (with 4K 120 fps recording on F55)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Humidity: 20 to 90%
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Dimensions: 4.2 x 5.3 x 3.7" (106 x 135 x 93 mm)
• Weight: Approximately 2.4 lb (1.2 kg)

In the box

• Sony AXS-R7 External 4K RAW Recorder for PMW-F55 & F5 CineAlta Digital Cinema Cameras
• Top Cover
• 4 x UNC 1/4"-20 x 3/8" Top Cover Retaining Screw
