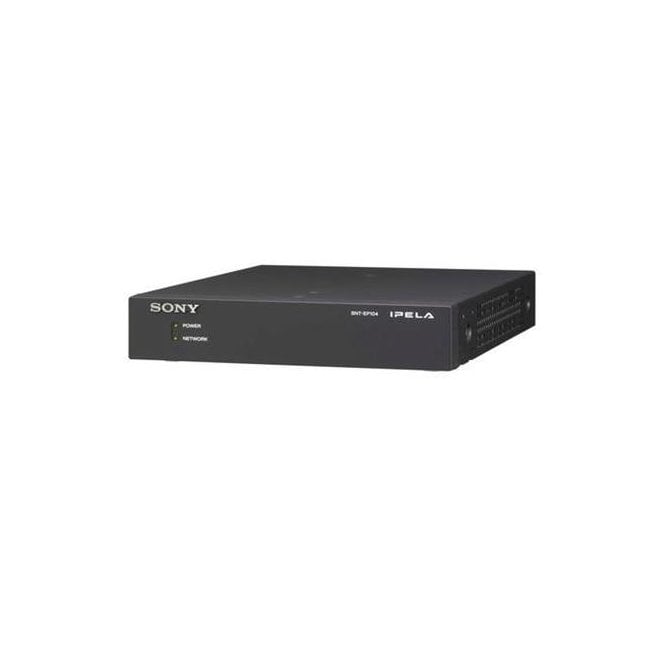

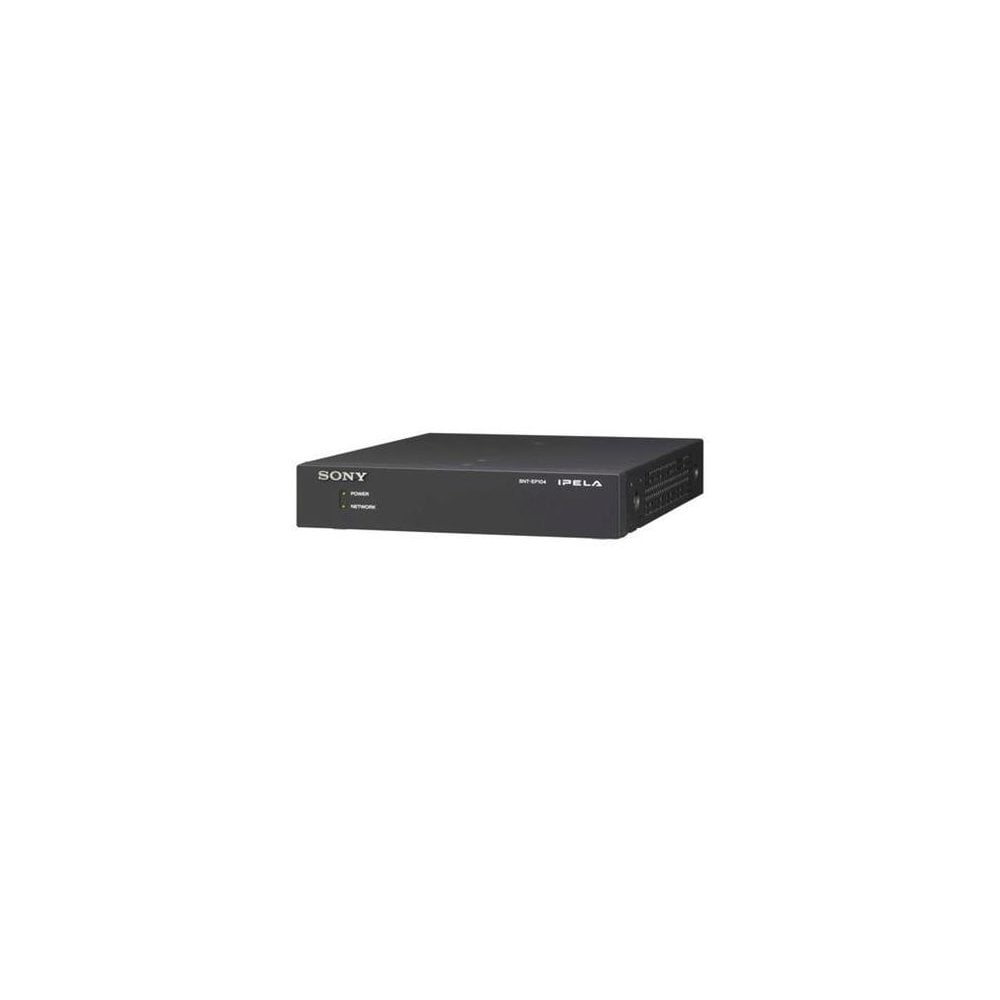

Sony SNT-EP104 4 Channel Stand Alone Basic function Encoder

Sony SNT-EP104 (SNT/EP104, SNT_EP104, SNTEP104, snt-ep104) 4 Channel Stand Alone Basic function Encoder

Designed for use in applications requiring up to four analogue channels, the SNT-EP104 is a powerful, fully featured video encoder delivering a range of unique capabilities.

The SNT-EP104 delivers a unique four channel stand-alone camera encoding concept, which adds significant value and performance to existing small to medium-sized analogue systems.

Converting up to four traditional analogue video signals into multiple digital video streams for transmission via IP-based networks, the SNT-EP104 encoder offers unrivalled network flexibility. Sony's unique XDNR (Excellent Dynamic Noise Reduction) is also included within this encoder, together with VE (Visibility Enhancer) technology.

The combination of these powerful features and enhancements make the Sony SNT-EP series the obvious choice when migrating from an existing analogue camera system, to an IP based monitoring solution.

What's more, the SNT-EP104 comes with ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.

Enhanced performance and image quality in all conditions combined with D1 resolution support for up to four analogue cameras

Sony's unique XDNR (Excellent Dynamic Noise Reduction), VE (Visibility Enhancer) and DFI (Dynamic Frame Integration) Technology come as standard features within the SNT-EP series of encoders. This unique image enhancing technology delivers superior noise free images in the most challenging conditions. By utilising Sony's SNT-EP series with XDNR, VE and DFI technology high quality D1 resolution support, analogue cameras can now deliver superior imaging performance.

Triple codec operation

The SNT-EP series supports three compression formats: JPEG, the best choice of high-quality still images.

Clear low-light images

XDNR (Excellent Dynamic Noise Reduction) technology virtually eliminates image blur in low-light conditions, enabling users to clearly capture images that have not been easy to portray in the past. It also overcomes the problems associated with many competitor camera models. What's more, when both XDNR and Visibility Enhancer are turned on, the cameras can achieve four times the sensitivity compared to when they are off. This technology is ideal for any outdoor surveillance monitoring, such as in a car park at night.

Improved performance in challenging lighting conditions

VE (Visibility Enhancer) technology improves performance in challenging lighting conditions, for example high-contrast environments such as casinos and highways that had previously been difficult to monitor. The Visibility Enhancer's advanced system suppresses extreme whites and boosts dark areas in a scene simultaneously and dynamically, to produce clearer images on the screen.

Improved performance from dynamic scenes

DFI (Dynamic Frame Integration) technology produces superior images from scenes containing both still and moving objects. DFI technology detects moving objects and reduces motion blur, simultaneously detecting stationary objects and reducing jagged edges. DFI delivers an optimised image with superior clarity and can be added to any analogue system by utilising Sony's SNT-EP series.

Flexible streaming support

Video can be stored on optional USB memory media and then streamed using RTP/RTCP or RTSP protocols. This function is available with s/w version 1.1 or later.

Flexible recording and storage solutions

External storage is also possible using USB flash memory. Continuous, pre and post event video may be stored in a compressed format for later retrieval.

Support for IPv6

The SNT-EP series supports Internet Protocol Version 6 (IPv6).

ONVIF Compliant

The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery, video streaming and intelligence metadata. Allows interoperability between network video devices. By utilising Sony SNT-EP encoders, analogue systems can fully benefit from full ONVIF interoperability.

Camera Features

• Tone Correction: VE (VE)
• Noise Reduction: XDNR
• Video Server Features
• Coaxitron Control: No

Video

• Resolution: 720 x 576, 720 x 470, 640 x 480, 384 x 288, 320 x 240
• Compression Format: H.264, MPEG-4, JPEG
• Maximum Frame Rate: 30 fps
• Multi Streaming Capability: Dual streaming
• Number of Clients: 10

Intelligent Video/Audio Analytics

• Intelligent Motion Detection: Yes
• Advanced Audio Detection: No

Audio

• Compression Format: No

Network

• Protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
• Number of IP Address/Mac ADDRESS: 4
• Wireless Network: No
• Authentication: IEEE 802.1x

Interface

• Analog Video Input: x4
• Composite Buffered Through Out: No
• Microphone Input: No
• Audio Interface (IN/OUT): No
• Line Output: No
• Network Port: 10BASE-T/100BASE-TX (RJ-45)
• Alarm Input (Sensor Input): No
• Alarm Output: No
• Serial Interface: No
• USB Slots: No

General

• Power Requirements: DC 12 V
• Power Consumption: 12 W max.

Operating Temperature:

• 0℃ to +45℃
• +32°F to 113°F

Storage Temperature:

• -20℃ to +60℃
• -4°F to +140°F

Dimensions (W x H x D)*1:

• 210 x 44 x 250 mm
• 8 3/8 x 1 3/4 x 9 7/8 inches

Mass:

• Approx. 1.3 kg
• Approx. 2 lb 14 oz

In the Box

• Sony 4 Channel Stand Alone Basic function Encoder
