Sony Multi-Port AV Storage System

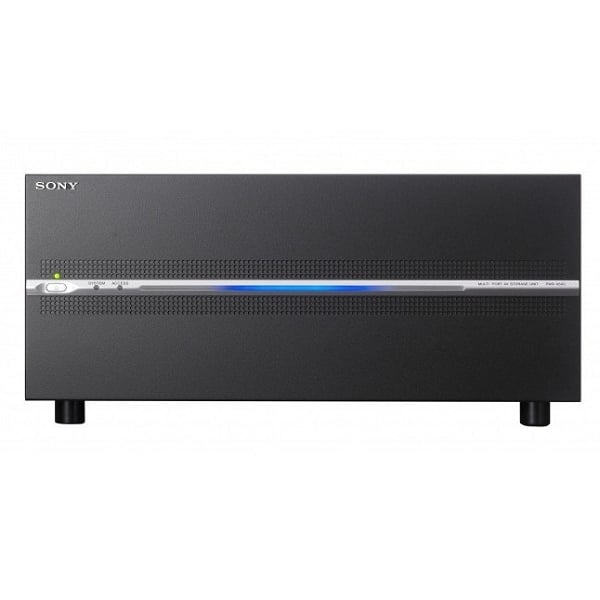

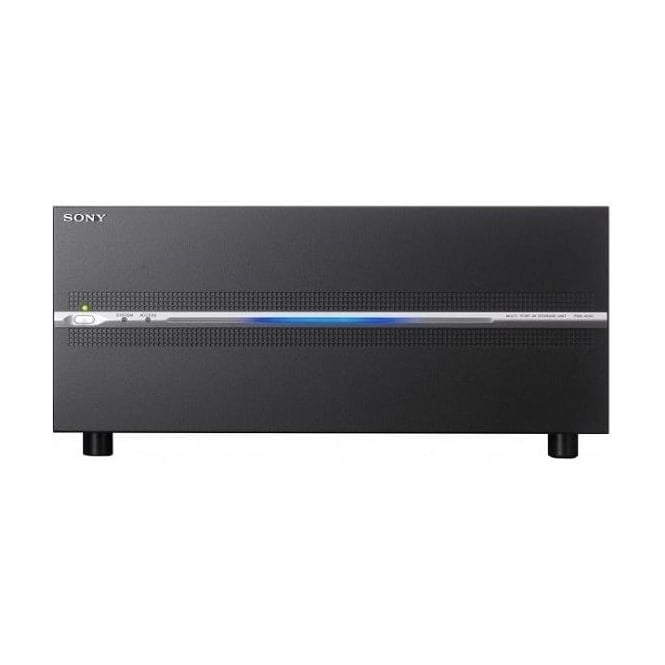

Sony PWS-4500 (PWS/4500, PWS_4500, PWS 4500) Multi-Port AV Storage System

Capable of recording images in the XAVC recording format, the PWS-4500 Multi-Port AV Storage System from Sony offers flexible I/O configurations, high-frame-rate (HFR) recording, and an intuitive user interface designed for professional operators. It creates a multi-port slow-replay server system for live sports production in both 4K and HD infrastructures.

The connectivity with Sony’s IP-based infrastructure is assured by a Networked Media Interface, while enhanced system efficiency and flexibility are provided by a Share Play file sharing feature. To establish the PWS-4500 System as the replay server in a live server system, you need three additional units including the PWSK-4403 Control Panel, the PWS-100PR1 Production Control Station, and the PWS-100MG1 Media Gateway Station.

XAVC Format

• Capable of recording up to four 4K video signals/six HD video signals and 16 audio channels (uncompressed, 24-bit, 48 KHz) using the XAVC recording format
• In a 4K workflow, a single XAVC file is created and recorded to the PWS-4500 System, which is easily handled by non-linear editing systems in the post production stage
• The system records 4K/HD XAVC intra frames between 600 Mb/s (4K 50p/59.94p) and 100 Mb/s (1080, 50i/50.94i) in HD
• XAVC fits into the growing 4K live production environment and you can explore creative possibilities in both 4K and HD live production
• With the optional PWSL-DH45 codec, the PWS-4500 System can also record files as Avid DNxHD 220x/145/45, which is an ideal fit for the Avid DNxHD post production environment

Flexible configuration for 4K and HD

• PWS-4500 System can be configured flexibly using various option boards and software
• From a 4-channel HD production recorder with a basic configuration, you can expand to a 4-channel 4K recorder/HD 8-channel recorder solution with a Networked Media Interface

4K/HD HFR Recording and Replay

• System records camera feeds captured at a high frame rate with Sony’s live camera systems, and can instantaneously replay them in very smooth slow motion at HD 2x and 3x as standard
• You can also achieve HD 4x, 6x, and 8x, and 4K 2x slow-motion replay by using either of the optional software: HD 4x, 6x, and 8x: PWSL-HF45 HFR / 4K 2x: PWSL-HR45 4K/HD Cut Out Software and PWSL-HF45 HFR (High-frame rate) software
• The intuitive operability of the PWS-4403 Control Panel helps you to control slow-motion replay and making full use of its jog dial, fader lever, and industry standard button layout

Large-Capacity Memory Storage

• Large 2TB memory enables 6 hours of recording in 4K and 24-hour recording in HD
• Memory expandable up to 8TB

HD Cut Out from 4K

• By installing the PWSL-HR45 4K/HD Cut Out software, a full HD picture can be cut out from up to 3 recorded 4K sources
• Each cut out sequence uses key frames referenced to timecode, position & zoom level for fast, intuitive, and creative operation
• You can also select Live Zoom mode

4K/HD Simultaneous Recording

• PWS-4500 System can simultaneously create and record HD files from a 4K camera feed, and you can use those HD files as proxy material

Redundant Power Supply

• To assure high reliability, the PWS-4500 System comes with a redundant power supply unit as standard

Connectivity with Next-Generation IP-Based Infrastructure

• Networked Media Interface lets you connect with any IP live production environment simply by adding the optional PWSK-4506F Networked Media Interface Board, allowing video and audio signals to be received and transmitted over an IP network.

Efficient file sharing via 10 GbE IP Networking

• Once clips have been recorded by a PWS-4500 Server connected to a dedicated 10 GbE IP network, the new Share Play feature enables these clips to be shared among all connected PWS-4500 Servers to deliver a more efficient workflow
• Eliminates the need to push or pull clips between different servers

Multi Port AV Storage Unit

• PWS-4500 System can be used as a multi-channel recorder using the XAVC recording format
• Supports 4K to HD resolutions
• The unit features high-speed & high-capacity memory storage and supports transfers over IP, so it fits well into the network infrastructure

Video

• Sampling Frequency: Y: 74.25 MHz, Pb/Pr: 37.125 MHz
• Conversion Modes: 8/10 bits
• Compression: XAVC, Avid DNxHD

Audio

• Sampling Frequency: 48 kHz (video sync)
• Conversion Modes: 24 bits
• Headroom:20 dB / 18 dB / 16 dB / 15 dB / 12 dB / 9 dB (selectable)

Encoder Module

• Connectors: SDI Input (1 to 4): 4 x BNC HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant, 3G SDI (2.97 GHz) SMPTE ST 424 Level A, B, SDI Output (INPUT MONITOR 5 to 8), 4 x BNC, HD SDI (1.485 Gb/s), 3G SDI (2.97 GHz)
• (Does not satisfy the SDI signal standard, and should be used for input signal monitor applications only), 2 x Monitor BNC: HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant, Time Code Input: 1 x BNC, 0.5 to 5 Vpp, 10 kOhms, Time Code Output: 1 x BNC, 1.5 Vpp, low impedance, Digital Audio (AES/EBU) Input: 4 x BNC Channel 1/2 to 7/8, AES/EBU format, unbalanced, When connecting devices for AES/EBU signal input/output, it is recommended to use a cable whose length is less than 984' (300 m)

Decoder

• Connectors: SDI Input (1 to 8): 8 x BNC, HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant, 3G SDI (2.97 GHz) SMPTE ST 424 Level A, B, SDI Output (Monitor)
• 2 x BNC, HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant,  Time Code Output: 1 x BNC, 1.5 Vpp, low impedance, Digital Audio (AES/EBU) Output: 4 x BNC, Channel 1/2 to 7/8, AES/EBU format, unbalanced, File Sharing: Share Play 1 to 2: RJ-45 x 2,Network Interface 10G Copper, Monitoring: NMI Monitor 1 to 2: RJ-45 x 2, Network interface 1G Copper, Monitor: HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant, Reference Input: 2 x BNC including 1 loop through, 75 Ohms with terminal switch, HD (tri-level sync), SD (black burst), NTSC: 0.286 Vpp, 75 Ohms, PAL: 0.3 Vpp, 75 Ohms, Remote: Remote 1/2 to Remote 7/8: 4 x RJ-45, GPIO (25P): 25-pin D-Sub, 1 x female, Network 1 to 2: RJ-45 (x2), 1000BASE-T, Maintenance: 1 x USB
• Network: 1 x SFP+, 10GBASE-SR/LR (add-in card)

General

• Recording Format: XAVC, Avid DNxHD
• Power Requirements: 100 to 127 VAC / 200 to 240 VAC
• Power Consumption: Maximum 480 W
• Operating Temperature: 41 to 104°F (5 to 40°C)
• Storage Temperature: −4 to 140°F (−20 to 60°C)
• Humidity: 25 to 90% (non-condensing)
• Dimensions: 16.8 x 6.9 x 21.3" (42.7 x 17.4 x 54.1 cm)
• Weight: 48 lb (22 kg)

In the box

• Sony PWS-4500 Multi-Port AV Storage System
