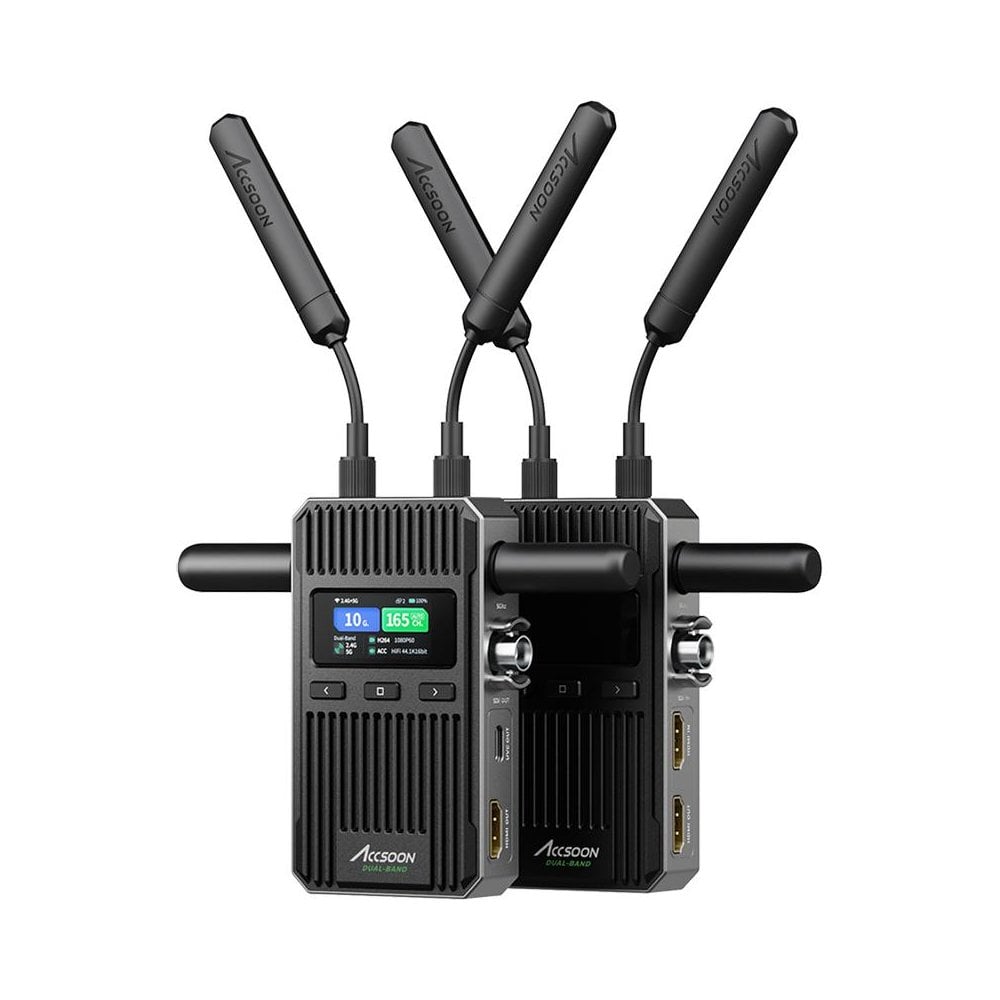

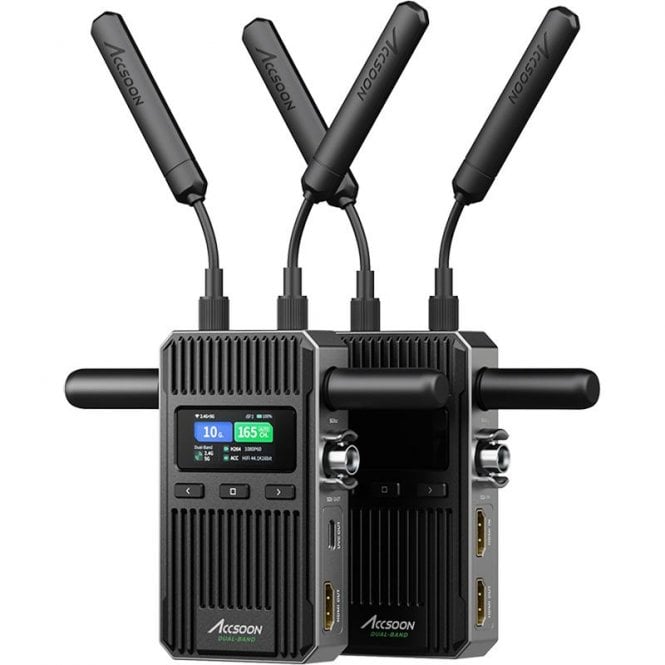

Accsoon CineView 2 SDI 1500ft Wireless Video Transmission System - TX/RX

Accsoon ACSWIT08S (ACS-WIT08S, ACS/WIT08S, ACS WIT08S, ACS_WIT08S) CineView 2 SDI 1500ft Wireless Video Transmission System - TX/RX

Unmatched Stability with Extended Range

The CineView 2 is the latest innovation in Accsoon’s renowned CineView series, building on patented U.S. Dual-Band 2.4GHz + 5GHz technology. Featuring a brand-new antenna design, it delivers seamless 1080P 60fps video and audio transmission over an impressive 1500ft (450m) line-of-sight range, all while maintaining ultra-low latency under 50ms.

Reliable Dual-Band Transmission with Enhanced Range

Proven in the field, Accsoon’s Dual-Band transmission technology—now paired with a redesigned antenna—ensures unmatched stability, even across longer distances.

Next-Gen Antenna Design for Superior Signal Strength

Continuing to redefine wireless performance, the CineView 2’s upgraded antenna system outperforms the CineView SE and HE, pushing the range further to a remarkable 1500 feet with rock-solid reliability.

Ultra-Compact and Lightweight

With a sleek, compact form factor and weighing just 210g, the CineView 2 is easier to carry and quicker to rig—ideal for fast-paced production environments.

Stream to Four Devices Simultaneously

Each CineView 2 transmitter supports wireless video streaming to up to four devices—whether CineView receivers or smart devices (iOS and Android)—giving your crew full monitoring flexibility on set.

Silent Operation for Quiet Shoots

Designed without a fan, the CineView 2 offers silent operation while maintaining efficient heat dissipation—perfect for professional sets where quiet is critical.

Seamless Compatibility with Existing CineView Models

CineView 2 is fully backward compatible with CineView SE, HE, and Quad models, enabling users to mix and match systems as needed.

TRANSMITTER

• Video Input: HDMI, 3G SDI
• Video Output: HDMI Loop-Out
• SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i, 720p: 50/59.94/60p
• HDMI Input Format: 4096*2160: 23.98/24/25/29.97/30/50/59.94/60p 3840*2160:, 23.98/24/25/29.97/30/50/59.94/60p, 1080p: 23.98/24/25/29.97/30/50/59.94/60p, 1080i: 50/59.94/60i
• 720p: 50/59.94/60p
• HDMI Loop-Out Format: Identical to the HDMI/SDI video input
• DC Port: 5.5mm x 2.1mm, center positive
• DC Voltage: 7.4~16.8V
• Battery: Compatible with NP-F550, NP-F750, NP-F970
• USB-C Power Input: USB-C 5V/3A
• Audio: 44.1KHz/48KHz 16/20/24bit
• Latency: <50ms (Camera latency not included)
• Display: 1.47 inch Full-Color LCD Screen
• Transmission Power: 2.4GHz: 20dBm, 5GHz: 20dBm
• Transmission Range: 1500ft/450m (No obstacles, no interference)
• Power Consumption: <6W
• Operating Environment Temperature: -10~40℃
• Dimensions: 60mm x 27.5 mm x 106.5mm
• Weight: 210g

RECEIVER

• Video Output: HDMI, 3G SDI, UVC
• SDI Output Format: 1080p: 24/25/30/50/60p Level A, 1080i: 50/60i, 720p: 50/60p
• HDMI Output Format: 1080p: 24/25/30/50/60p, 1080i: 50/60i, 720p: 50/60p
• DC Port: 5.5mm x 2.1mm, center positive
• DC Voltage: 7.4~16.8V
• Battery: Compatible with NP-F550, NP-F750, NP-F970
• USB-C Power Input: USB-C 5V/3A
• Audio: 44.1KHz/48KHz 16/20/24bit
• Latency: <50ms (Camera latency not included)
• Display: 1.47 inch Full-Color LCD Screen
• Transmission Power: 2.4GHz: 20dBm, 5GHz: 20dBm
• Transmission Range: 1500ft/450m (No obstacles, no interference)
• Power Consumption: <5W
• Operating Environment Temperature: -10~40℃
• Dimensions: 60mm x 27.5 mm x 106.5mm
• Weight: 210g

In The Box

• 1x Transmitter
• 1x Receiver
• 2x Cold shoe mount adapter
• 4x High gain Dual-Band antenna (short)
• 4x High gain Dual-Band antenna (long)
• 1x User manual / warranty card
