CAME-TV CRYSTAL-V SDI HDMI Wireless Video Transmission System

CAME-TV CRYSTAL-V (CRYSTAL/V, CRYSTAL_V, CRYSTALV, CRYSTAL V, cystal-v) SDI HDMI Wireless Video Transmission System

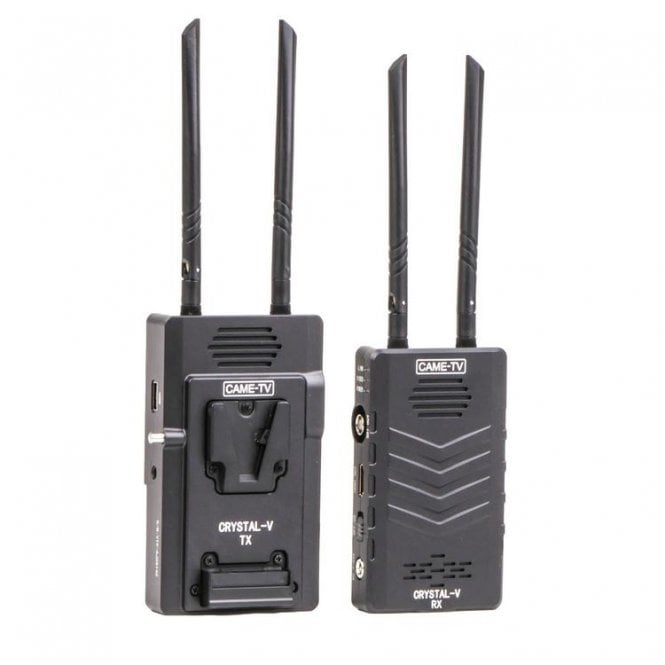

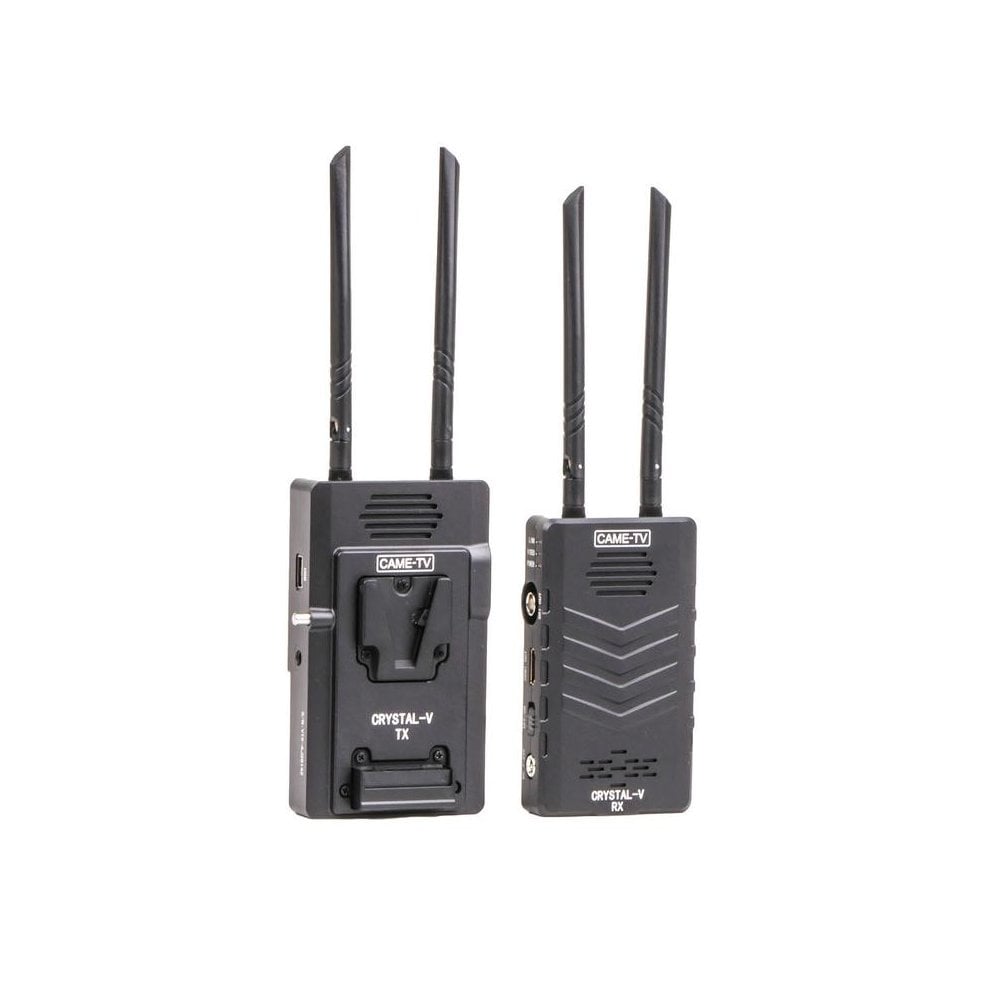

The Crystal V Wireless Full HD Video Transmission System from CAME-TV allows you to wirelessly connect your camera to a monitoring device with a 5 GHz signal. The system supports video input via HDMI up to UHD 4K, input via SDI up to 1080p60, and offers an effective line-of-sight transmission of up to 1080p60 video at up to 1640'.

The transmitter is powered via its V-mount battery plate, and an L-series battery plate is included if you'd prefer to swap out the V-mount plate. The transmitter also has a V-mount plate on the other side that can be used to mount it onto a V-mount camera so a V-mount battery can power both the camera and the transmitter.

The receiver is powered via an L-series battery plate, and both can alternately be powered with a separately available 2.1mm DC barrel power source. Each unit comes with two removable antennas to extend their transmission range, a shoe mount, and a 1/4"-20 double-threaded screw adapter.

Wireless

• Wireless Range: 1640.42' / 500 m
• Frequency Range: US: 5.18 to 5.8 GHz
• RF Power: 4 dBm
• Wi-Fi: Yes

Interfaces

• Transmitter Antenna Ports: 2 x RP-SMA
• Receiver Antenna Ports: 2 x RP-SMA

Transmitter Video Connectors:

• 1 x BNC (3G-SDI) Input
• 1 x HDMI Input
• 1 x BNC Loop Output

Receiver Video Connectors:

• 1 x BNC (3G-SDI) Output
• 1 x HDMI Output

• Transmitter Other I/O: 1 x USB Type-A Output
• HDCP Support: None

Format Support

Video Format

SDI/BNC:

• 1080p at 25, 30, 50, 60 fps
• 1080i at 50, 60 fps
• 720p at 50, 60 fps
• 576p at 50 fps
• 480p at 60 fps

HDMI:

• UHD 4K at 30 fps
• 1080p at 25, 30, 50, 60 fps
• 1080i at 50, 60 fps
• 720p at 50, 60 fps
• 576p at 50 fps
• 480p at 30 fps

• LUT Support: None

Power

• Transmitter Built-In Battery: None
• Receiver Built-In Battery: None
• Transmitter Battery Support: 1 x V-Mount
• Receiver Battery Support: 1 x Sony L-Series / NP-F Type
• Transmitter Power Connector: 1 x Barrel (7 to 24 VDC) Input
• Receiver Power Connector: 1 x Barrel (7 to 24 VDC) Input
• Transmitter Power Consumption: 12 VDC at 510 mA (6.12 W)
• Receiver Power Consumption: 12 VDC at 550 mA (6.6 W)

Environmental

• Operating Temperature: 14 to 149°F / -10 to 65°C

General

• Transmitter Mounting: 1 x 1/4"-20 Female
• Receiver Mounting: 1 x 1/4"-20 Female
• Transmitter Dimensions: 4.92 x 2.76 x 0.79" / 12.5 x 7 x 2 cm
• Receiver Dimensions: 5.51 x 3.15 x 0.98" / 14 x 8 x 2.5 cm
• Transmitter Weight: 8.8 oz / 250 g
• Receiver Weight: 12.3 oz / 350 g

In the Box

• CAME-TV Crystal V Wireless Full HD Video Transmission System
• 4 x Antenna
• Transmitter L-Series Battery Plate
• Shoe Mount
• 1/4"-20 Double Screw Adapter
