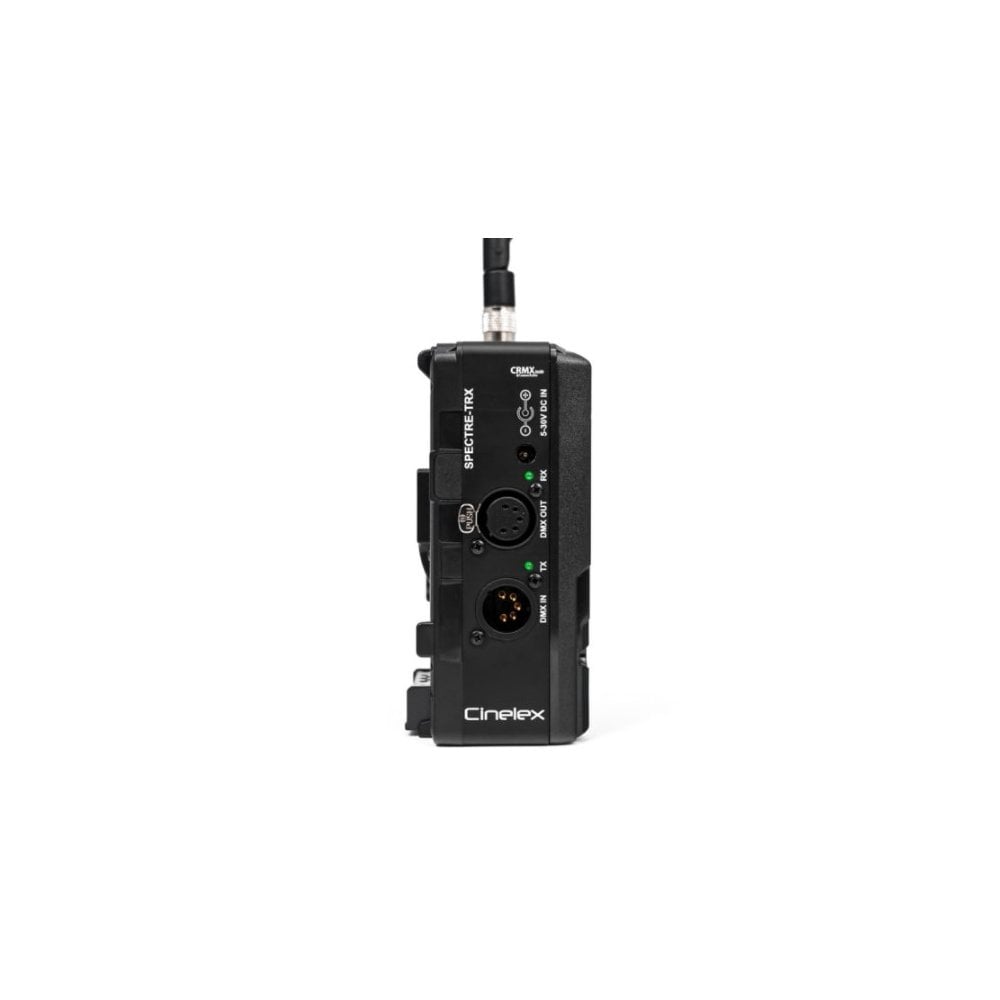

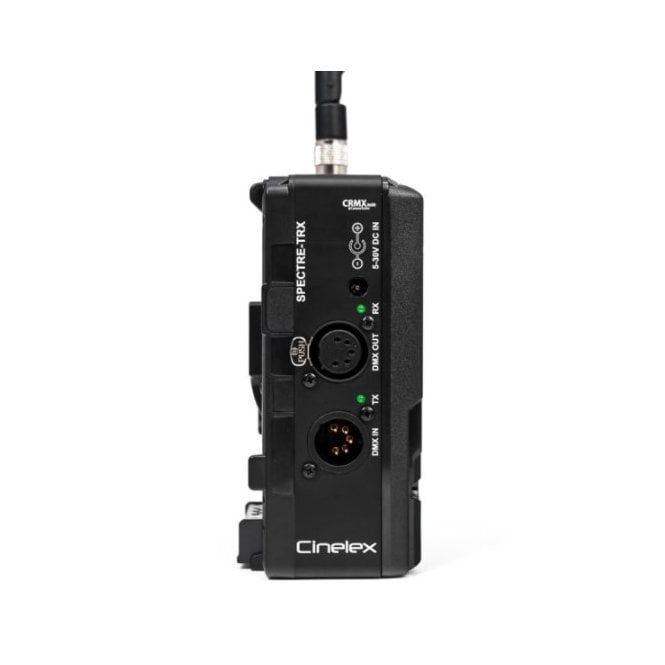

Cinelex Switchable Wireless DMX Transmitter & Receiver (V-Mount & DC-in Powered)

TRX-V TRXV TRX V TRX/V Switchable Wireless DMX Transmitter & Receiver (V-Mount & DC-in Powered)

TRX-V by Cinelex is an all-in-one transmitter & receiver enabling wireless control of any DMX-capable light.

Switching between ‘receive’ or ’transmit’ modes is completed immediately at the touch of a button.

As a receiver, TRX-V mounts directly to a light fixture using its V-Mount* battery plate. In turn, a battery docked to TRX-V simultaneously supplies power to the light and TRX-V itself.

Once mounted, powered & synchronised – TRX-V receives & relays all signals to the light through the fixture’s DMX input.

In ‘transmit’ mode, TRX-V becomes a wireless DMX transmitter. When tethered to a lighting control desk, the unit wirelessly beams all signals to it synced receivers.

A 5-30V DC input allows continuous power using the including multi-country AC adaptor – ideal when tethered to a control desk.

Manufactured for professionals, TRX-V is constructed from extruded aluminium and is built to withstand tough rental & on-set environments.

LED lights display the status of several functions, including active mode & signal strength.

Full-size 5-pin XLR in & out connectors means integration with existing equipment is seamless and pain-free.

Operating on the LumenRadio protocol, TRX-V is cross-compatible with all Cinelex products.

Specifications

Wireless Protocol

Protocol: LumenRadio

Operational Frequency: 2.4GHz (2402-2480MHz)

Range: Up to 100m (environment dependent)

DMX Standards: DMX512, DMX512 (1990) & DMX512-A

RDM: ANSI E1.20 (in Receive mode only)

Power

DC-in: 5-30V

Power Consumption: 1W

Controls

1x TX/RX Toggle Select: Switch Between ‘Transmit’ & ‘Receive’ Modes

1x “SYNC” Button: Synchronise TRX with Transmitter or Receiver

Connectors

1x DMX XLR 5-Pin Male

1x DMX XLR 5-Pin Female

1x Battery Plate Male & Female V-Mount

1x 2.1mm DC-In Power Socket

LED Indicators

1x “TX” LED: ‘Transmit’ Mode Active

1x “RX” LED: ‘Receive’ Mode Active

1x “PWR” LED: Power Input Confirmation

1x “DMX” LED: DMX Input Confirmation

1x “LNK” LED: Synchronisation Status

1x “STA” LED: Connection Status

4x “SIGNAL STRENGTH” LEDs: Signal Strength Indicator (“RX” Mode)

Size (without Antennae)

Weight: 370g

Dimensions: 155mm x 90m x 65mm (L x W x D)

In The Box

• 1x TRX-V (V-Mount)
• 1x Antenna
• 1x AC Adaptor with UK, EU & USA Plugs
