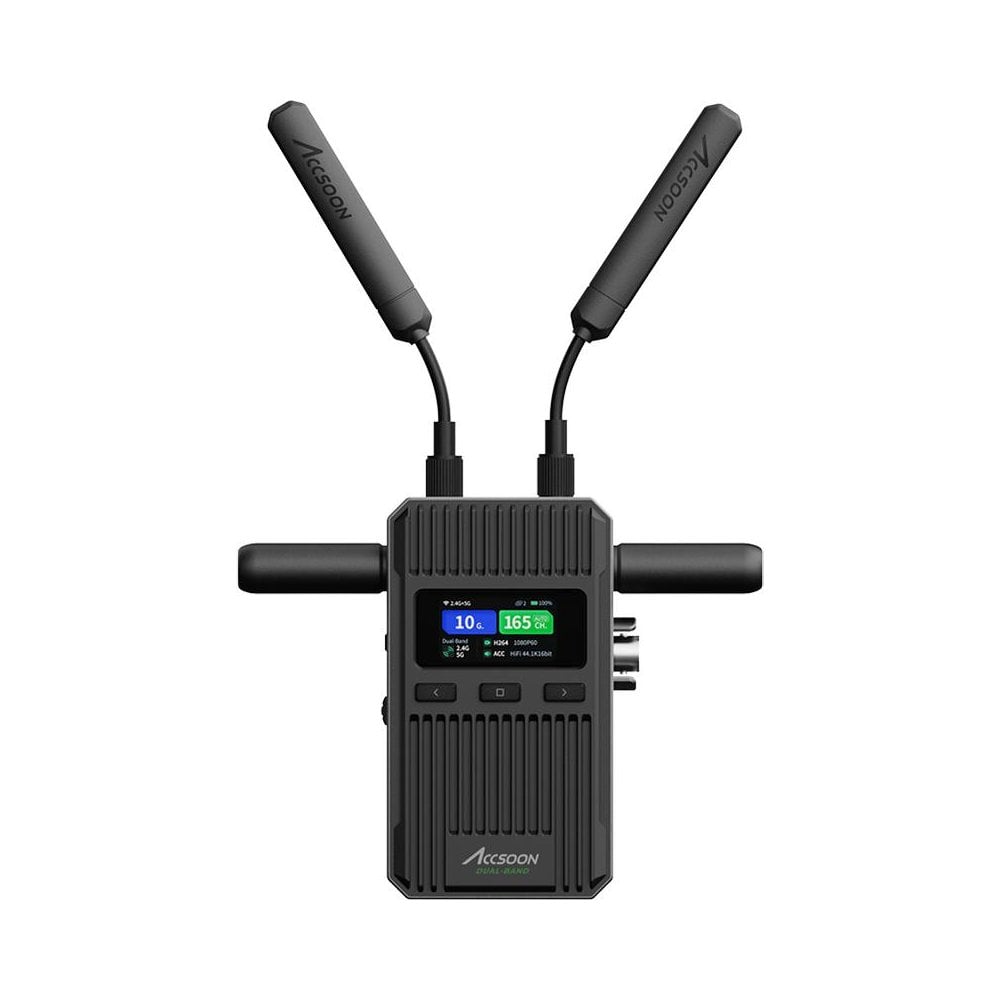

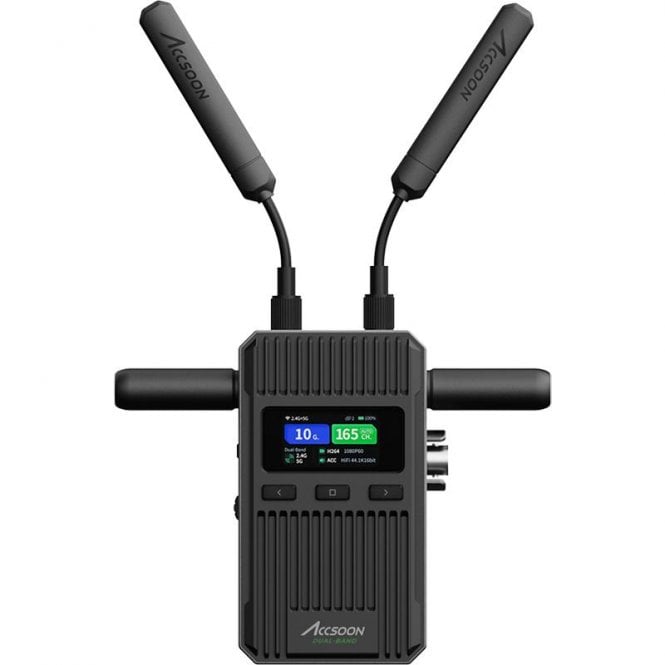

CineView 2 SDI TX Wireless Video Transmission System

Accsoon ACSWIT08STX (ACS-WIT08STX, ACS/WIT08STX, ACS WIT08STX, ACS_WIT08STX) CineView 2 SDI TX Wireless Video Transmission System

Stability with a Longer Range

The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.

Dual-Band Stable Connection With A Longer Range

Market Proved Wireless Stability

Leveraging our Dual-Band transmission technology and the all-new antenna design, CineView 2 ensures a stable connection even over longer distances.

New Antenna Design, Stronger Signal

Accsoon continues to push the limits of stable wireless transmission. With the benefits from the newly designed antennas, the CineView 2 surpasses the performance of the CineView SE/HE by extending the transmission range even further, now reaching an impressive 1500 feet.

Monitor On Up To Four Devices

Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices ( both iOS and Android ) totaling up to four.

No Fan Noise, Quiet Shooting

Classic CineView design, ensuring efficient heat dissipation, quiet shooting with no fan noise.

Cross-Compatibility with Other CineView Models

CineView 2 are backwards compatible with the current CineView SE, HE and Quad models, allowing users to mix and match these as required.

• Video Input: HDMI, 3G SDI
• Video Output: HDMI Loop-Out
• SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i, 720p: 50/59.94/60p
• HDMI Input Format: 4096*2160: 23.98/24/25/29.97/30/50/59.94/60p 3840*2160:, 23.98/24/25/29.97/30/50/59.94/60p, 1080p: 23.98/24/25/29.97/30/50/59.94/60p, 1080i: 50/59.94/60i, 720p: 50/59.94/60p
• HDMI Loop-out Format: Identical to the HDMI/SDI video input
• DC Port: 5.5mmx2.1mm, center positive
• DC Voltage: 7.4~16.8V
• Battery: Compatible with NP-F550, NP-F750, NP-F970
• USB-C Power Input: USB-C 5V/2A
• Audio: 44.1KHz/48KHz 16/20/24bit
• Latency: ＜50ms (Camera latency not included)
• Display: 1.47 inch Full-Color LCD Screen
• Transmission Power: 2.4GHz: 20dBm, 5GHz: 20dBm
• Transmission Range: 1500ft/450m (No obstacles, no interference)
• Power Consumption: <6W
• Operating Environment Temperature: -10~40℃
• Dimensions (Antennas Not Included): 60mm x 27.5 mm x 106.5mm
• Weight (Antennas Not Included): 210g

In The Box

• 1x Transmitter
• 1x Cold shoe mount adapter
• 2x High gain Dual-Band antenna (short)
• 2x High gain Dual-Band antenna (long)
• 1x User manual / warranty card
