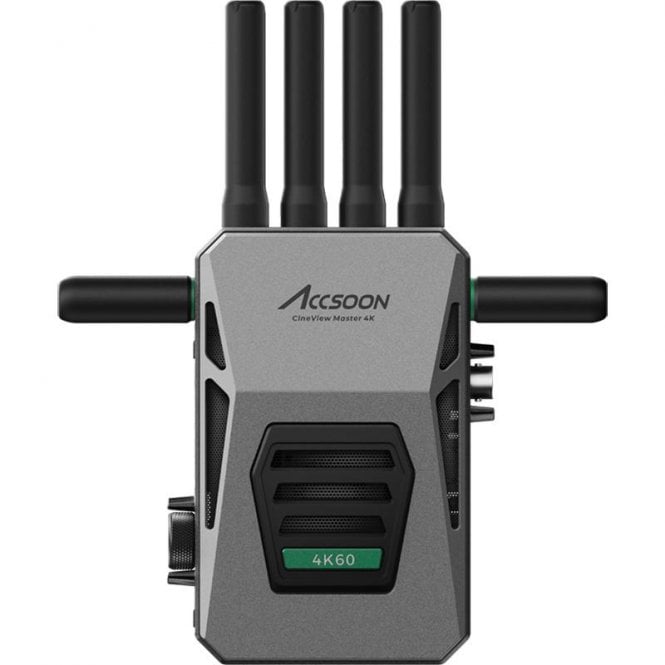

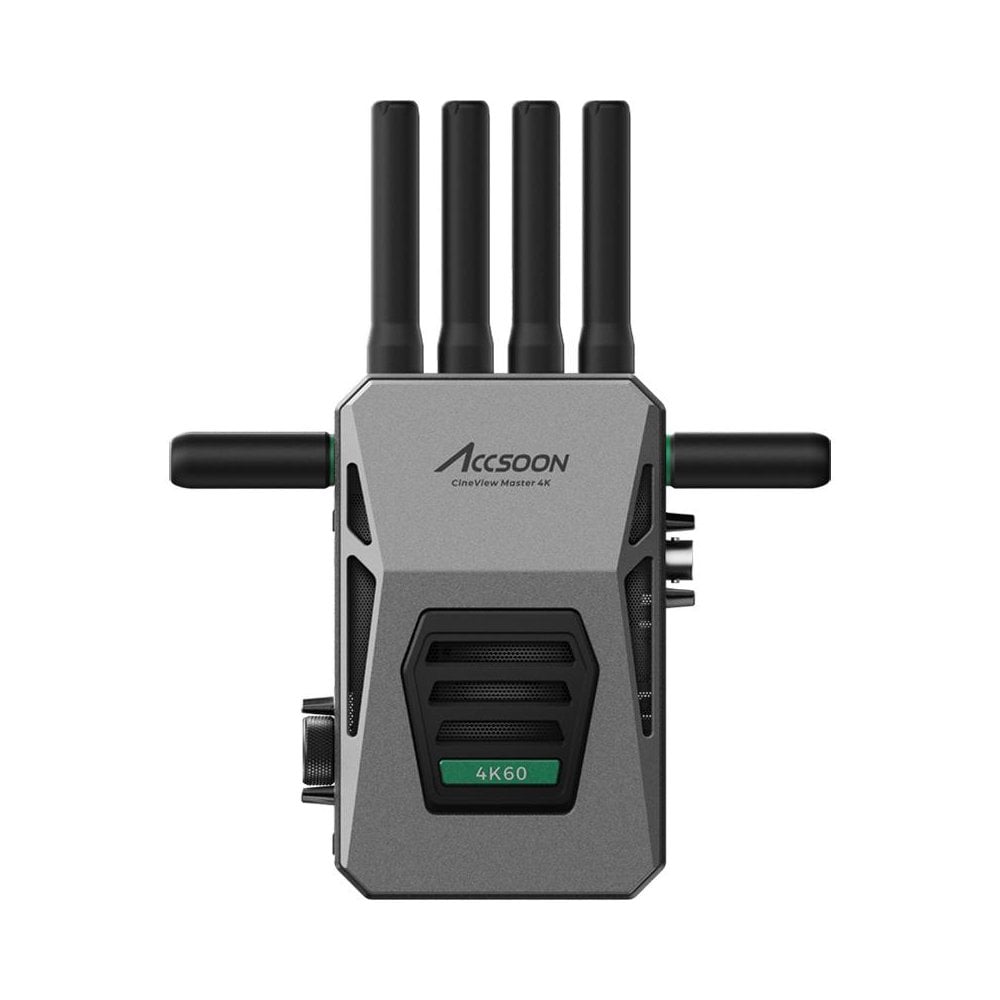

Accsoon CineView Master 4K TX 4K60 Wireless Video Transmission System

Accsoon ACSWIT07TX (ACS-WIT07TX, ACS/WIT07TX, ACS WIT07TX, ACS_WIT07TX) CineView Master 4K TX 4K60 Wireless Video Transmission System (Transmitter only)

Experience high quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming and any other video productions.

Cutting-Edge Wireless Technology Pioneering Multi-Frequency Transmission

Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.

Accsoon Tri-Band Transmission vs. SDR

Greater interference resistance

Wider bandwidth

Better transmission efficiency

25 ms Best in Class Latency Follow the Moment, Focus the Frame

Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing overall productivity in professional filmmaking.

Maximized Creative Range Within Reach

Accsoon CineView Master 4K with its original revolutionary Tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.

Direct On-camera Video Output to Your iPhone/iPad

Superb Image Quality

Resolution Up to 4K60

Apple Standard Display

iPhone and iPad displays have been designed, tested, and manufactured for Apple quality and performance standards.

Charge Your iOS Device

Charge the connected iPhone or iPad at the same time over Lightning or USB-C.

Wired Connection Without Latency

Create smoothly and seamlessly, with every detail in real time.

Camera to Cloud

Easily share your creations to Frame.io through the C2C integration, enabling real-time automatic uploads from almost any camera to the cloud.

Compatible with: iPhone/iPad equipped with Apple A14 proccesor and above [3]

Versatile Wireless Connections for Any Production Crew

CineView Master 4K Receiver

Delivers stable, high-quality video transmission for sharp and smooth on-site monitoring.

Wireless Monitoring Made Easy with Accsoon SEE App

Adapts to versatile shooting needs, stays flexible and efficient even during fast movements.

Empowered 8K Processor Wireless Optimized to Perfection

Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination the protocol and the processor represent a remarkable 400% increase in processing capabilities. Driving even greater performance for synchronized multi-video streams, the processor can effortlessly manage Tri-Band multi-stream video transmission even under the most demanding conditions.

Measured when shooting 1080p/60fps video under low bitrate.

Measured when shooting 1080p/60fps video under low bitrate with FCC compliance in an unobstructed, interference-free environment.

iPhone 12 above and later; iPad Pro 12.9-inch Gen 3 above and later; iPad Pro 11-inch Gen 3 above and later; iPad Gen 9 above and later; iPad Air Gen 4 above and later; iPad mini 6.

Requires separate purchase.

• A/V Processor: 8K High Performance A/V Processor
• Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
• Video Input: HDMI, 3G SDI HDMI
• Video Output: HDMI Loop-Out, USB Video Out (to iOS)
• SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B, 1080i: 50/59.94/60i
• HDMI Input Format: 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p, 1080p: 23.98/24/25/29.97/30/50/59.94/60p, 1080i: 50/59.94/60i
• HDMI Loop-out Format: Identical to the HDMI video input
• DC Port: 5.5mmx2.1mm, center positive
• DC Voltage: 7.4-16.8V
• Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
• Power Consumption: 6.5W average (*Without powering other devices)
• Audio: HDMI embedded, SDI embedded
• Latency: 1080p < 25ms, 4K < 35ms (Camera latency not included)
• Transmission Range: ≥ 2.5 km (No obstacles, no interference)
• Operating Environment Temperature: -10~40°C
• Dimensions (Antennas Not Included): 130mm x 95mm x 32mm
• Weight (Antennas Not Included): 322g

In The Box

• 1x CineView Master 4K Transmitter
• 1x Cold Shoe Mount Adapter
• 4x 2.4GHz/5Ghz Antenna
• 2x 6GHz Antenna
• 1x USB-C to USB-C Cable
• 1x USB-C to Lightning Cable
• 1x Allen Key
• 1x User Manual
