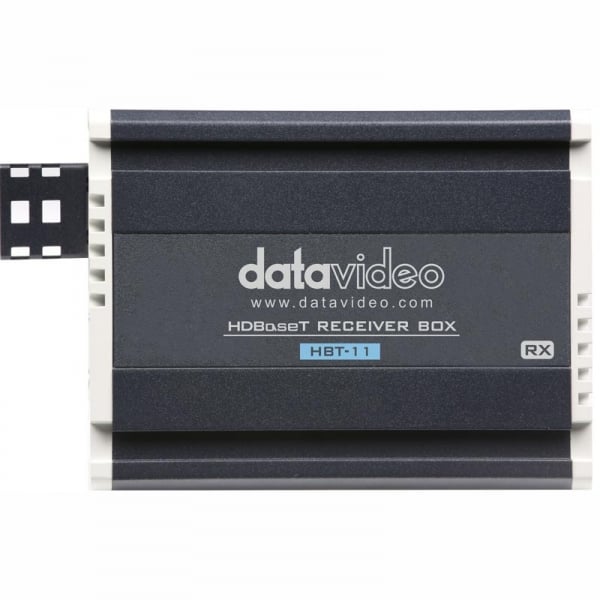

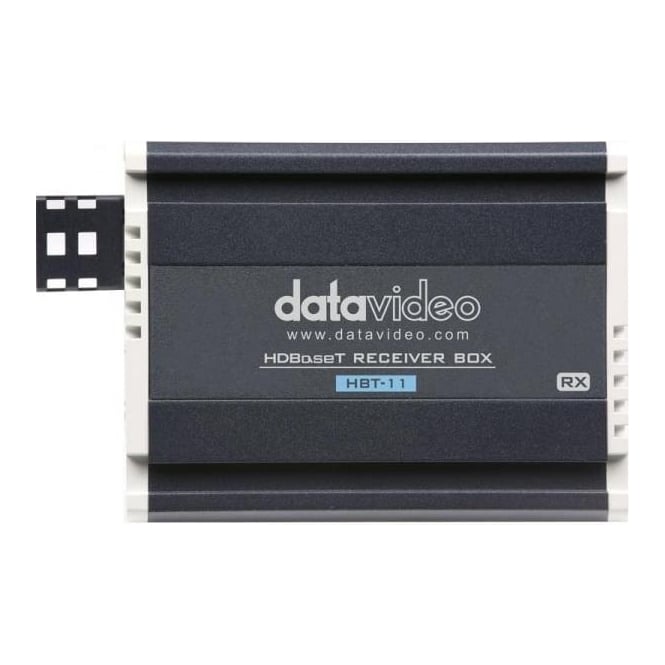

Datavideo DATA-HBT11 HDBaseT Receiver

Datavideo (DATA-HBT11, DATAHBT11, DATA HBT11)

The HBT-10 HDBaseT transmitter and HBT-11 receiver provide a maximum transmission distance of 100 meters. The pair supports video transmission up to 4K resolutions over Ethernet. With a 48V power source connected to the HBT-11 HDBaseT receiver, the HBT-11 can also remotely power the transmitter using Power over Ethernet (PoE).

The HBT-10 transmitter can power external devices from the 12V/30W DC output. DVIP control can be achieved over the same Ethernet cable. In other words, HDMI video, DVIP control signals and Power over Ethernet (PoE) can be transmitted between the transmitter and the receiver using a single Ethernet cable.

Inputs 1 x RJ45 (HDBaseT) Female

Outputs 1 x HDMI Female

Embedded Audio Output HDMI

Other I/O 1 x RJ45 Input/Output

Standards

HDCP Support None

EDID Support None

Transmission

Max Transmission Distance 1080p:

328.1' / 100 m (via Cat 5e/6/6a/7)

Video Format HDMI Output

UHD 4K

1080p

RJ45

UHD 4K

1080p

Supported Cable Types Cat 5e/6/6a/6e/7

Power

Power Connector 1 x Mini-DIN 4-Pin (48 VDC) Input

PoE Support PoH 802.3at

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

General

Certifications CE, FCC

*as per Manufacturer

Dimensions 5.2 x 3.3 x 1.8" / 132 x 85 x 45 mm

Weight 14.1 oz / 400 g

Packaging Info

Package Weight 2.095 lb

Box Dimensions (LxWxH) 8.3 x 5.9 x 3.2"

In the Box

Datavideo HDBaseT to HDMI Receiver

Power Adapter

Power Cable

Terminal Block to RJ45 Connector
