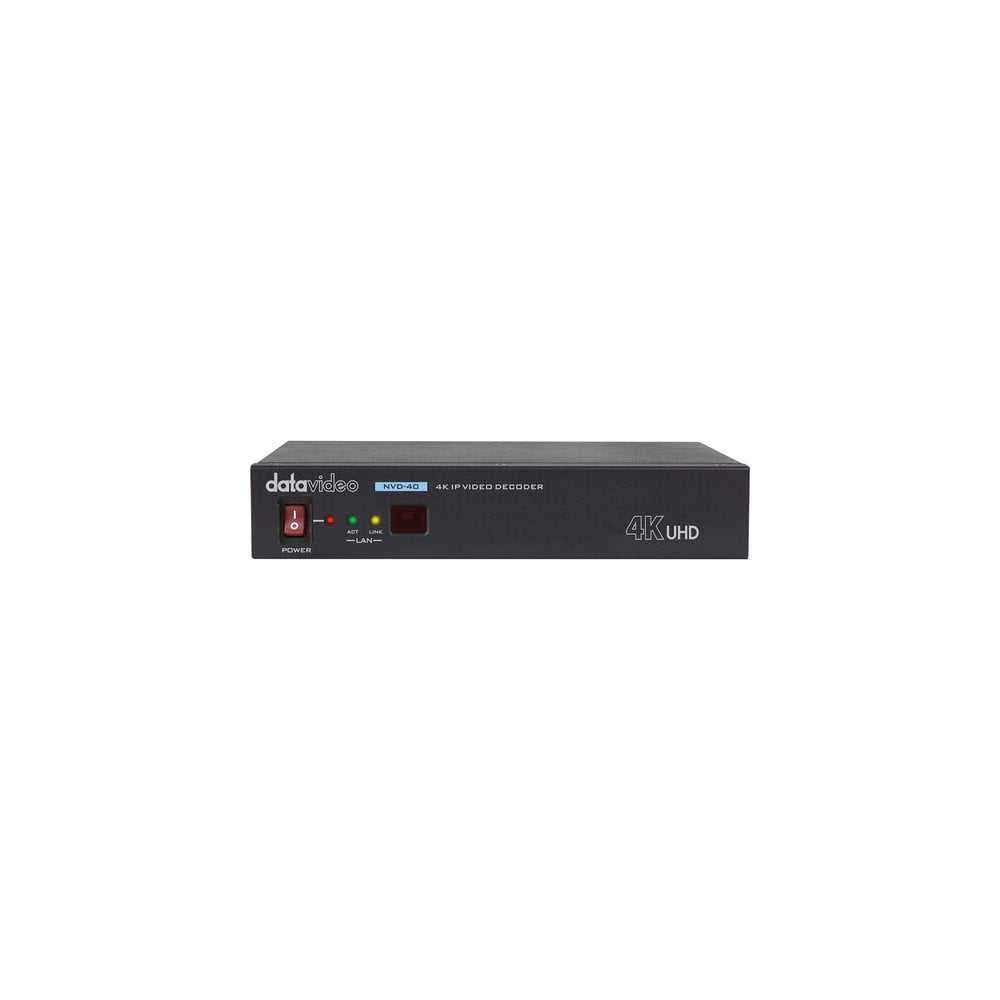

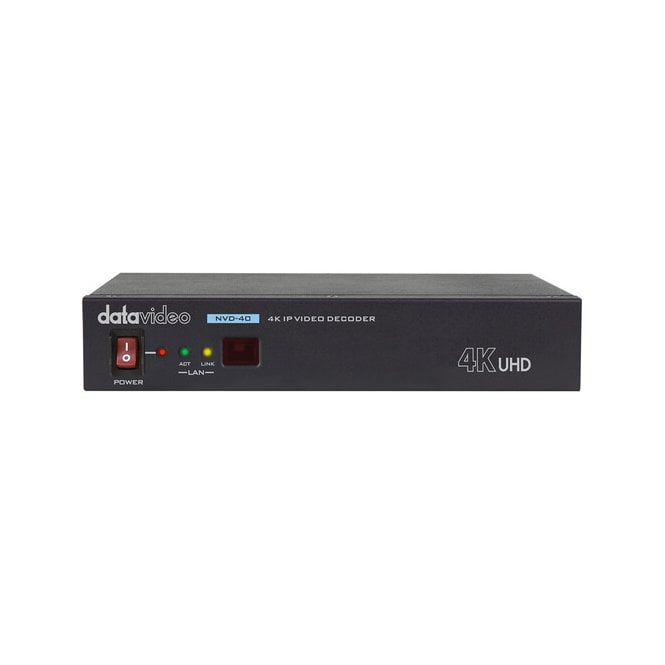

Datavideo Nvd-40 Hdmi IP Video Decoder

Datavideo Nvd-40 Hdmi IP Video Decoder(DATA-NVD40)

Supporting up to DCI 4K for high-resolution production, the Datavideo NVD-40 4K IP Video Decoder is a versatile tool for working with IP video. Use this device for corporate video, house of worship, and education. Not only does the decoder handle both flavors of 4K video, but it does so with all of its outputs active at the same time so that you can simultaneously output over HDMI, composite video, and RCA analog audio outputs.

Decoding all common streaming protocols, the NVD-40 supports SRT, RTSP, RTMP, and HLS as well as MPEG-TS, so you can happily use it without worrying about being unable to decode from a streaming source. Additionally, it can directly decode video streams from many live platforms such as YouTube Live, Dailymotion, and Livestream.

Decoding

The NVD-40 can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS, and MPEG-TS

The NVD-40 can also directly decode video streams from many live platforms such as YouTube Live, Dailymotion, and Livestream.

Simultaneous Outputs

Connect your NVD-40 to multiple devices in your workflow.

A highly flexible device, all the outputs are active at the same time.

The RCA stereo supports line level analog audio.

SRT Protocol

SRT is a video streaming protocol designed to deliver low-latency video streams across lossy networks such as the public internet.

In a nutshell, SRT brings the best quality live video over the worst networks. It accounts and corrects for packet loss, jitter, and fluctuating bandwidth all while maintaining the integrity and quality of video.

SRT’s stream error correction is configurable to accommodate a user’s deployment conditions. Leveraging real-time IP communications development to extend traditional network error recovery practices

SRT delivers media with significantly lower latency than TCP/IP, while offering the speed of unreliable UDP transmission without the disadvantage.

4K Video Output

The NVD-40 IP Video Decoder supports HDMI and composite video output with resolutions up 3840x2160p 50/60 FPS and 4096x2160p 30 FPS. RCA audio output is also supported.

Flip and Rotate Video

The NVD-40 adds real-time video flipping and rotating functions for more flexible video output options.

Includes Remote Control

RMC-12 remote control is included for more convenient operation.

IP Video H.264/H.265:

4096 x 2160 at 30 fps Decoding

Protocols DHCP, HTTP, RTMP, RTSP, TCP, UDP

PTZ Control

Supported Control Protocols IR

Interfaces

Video I/O 1 x HDMI (HDMI 2.0) Output

1 x BNC (Composite) Output

Audio I/O 1 x 2RCA

Other I/O 1 x RJ45

1 x USB-A

HDCP Support Yes

Embedded Audio HDMI

Wi-Fi None

Internal Recording

Recording Modes 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (H.265/HEVC)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080i at 50/59.94/60 fps

1280 x 720p at 50/59.94/60 fps

768 x 576i at 50 fps

640 x 480i at 60 fps

Power

Built-In Battery Yes

Power I/O 1 x Barrel (12 VDC) Input

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 140°F / -20 to 60°C

General

Dimensions 8.7 x 5.6 x 1.7" / 220 x 143 x 42 mm

Weight 2.2 lb / 1 kg

Packaging Info

Package Weight 2.825 lb

Box Dimensions (LxWxH) 11.9 x 10.4 x 4"

In the Box

Datavideo NVD-40 4K IP Video Decoder

12 VDC Power Supply

2 x Remote control
