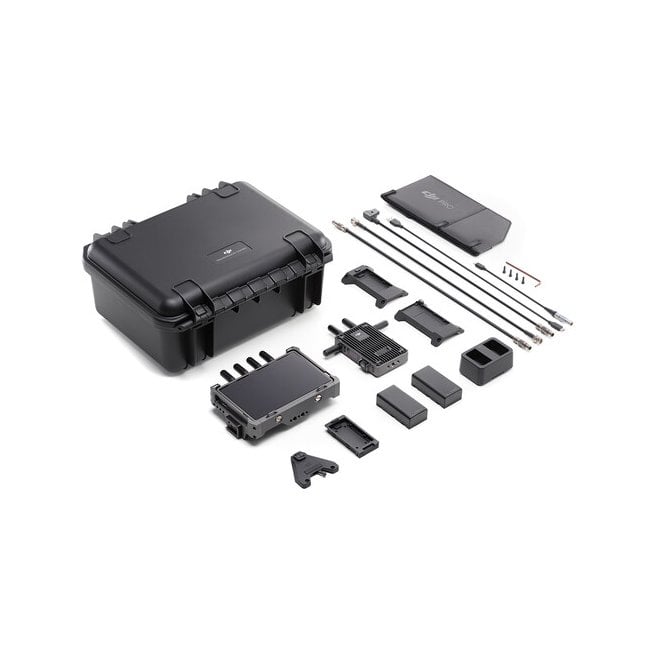

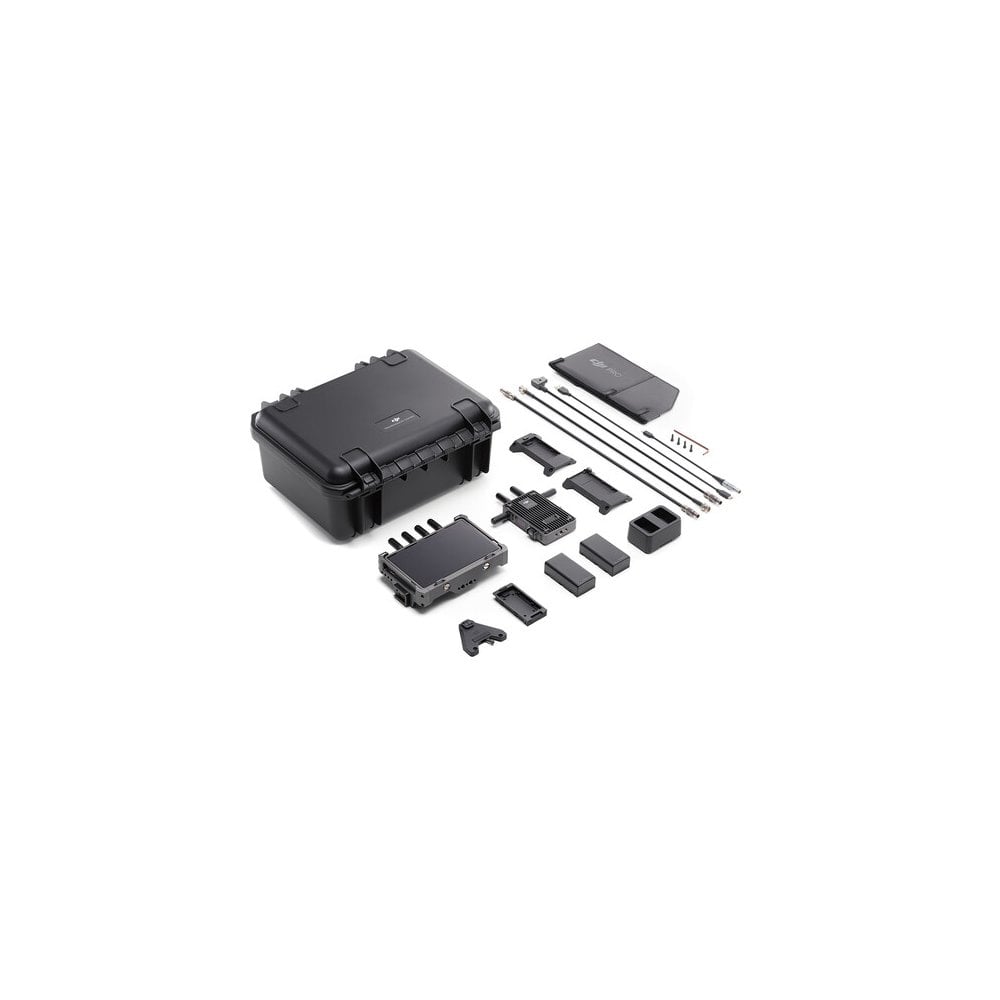

DJI Transmission (High-Bright Monitor Combo)

DJI Transmission (High-Bright Monitor Combo)(CP.RN.00000209.01)

DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder.

It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance.

It also supports transmission at 1080p/60fps with a max bitrate of 50Mbps as well as live audio monitoring at 6-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.

In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

One Transmitter with Multiple Receivers

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance.

Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.

For crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can be enabled on top of Control mode to allow an unlimited number of receivers (transmission performance differs from Control mode).

This brings shooting efficiency and awareness to an entirely new level. In dynamic, multi-team environments such as reality television sets, DJI’s unique transmission protocol can make better use of wireless channels.

With DFS bands and seamless automatic frequency hopping technology, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more monitors simultaneously. This results in a smooth, coordinated experience that's difficult to achieve with traditional transmission setups.

Panel Type

Receiver: LCD

Display Size

7.0" / 17.8 cm

Display Size

Receiver: 7.0" / 17.8 cm

Resolution

Receiver: 1920 x 1200

Aspect Ratio

Receiver: 16:10

Touchscreen

Yes

Image Controls

False Color, Focus Peaking, Screen Markers, Waveform, Zebra

Inputs / Outputs

Video I/O

Transmitter: 1x HDMI 1.4 Input

Transmitter: 1x BNC (3G-SDI) Input

Transmitter: 1x BNC (3G-SDI) Loop Output

Embedded Audio

HDMI/SDI

Audio I/O

Receiver: 1x 1/8" / 3.5 mm Headphone Output

Power I/O

Transmitter/Receiver: 1x Barrel Input

Other I/O

Receiver: 1x USB-C 2.0 Input

Media/Memory Card Slot

Single Slot: microSD/microSDHC

Encryption

256-Bit AES

Wireless

Wireless Range

3.7 Miles / 6 km (Line-of-Sight)

# of Channels

23

Channel Bandwidth

40 MHz

Frequency Range

Non-DFS Frequencies

2.4 to 2.48 GHz

5.15 to 5.25 GHz

5.72 to 5.85 GHz

DFS Frequencies

5.25 to 5.35 GHz

5.47 to 5.6 GHz

5.65 to 5.72 GHz

Latency

68 ms

RF Power

< 33 dBm

Wi-Fi

Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Bluetooth

No

Mobile App Compatible

No

Cellular Support

No

Format Support

Video Format

HDMI/SDI (10-Bit 4:2:2 YCC)

1080p: 60/59.94/50/30/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

Audio Format

16-Bit 48 kHz PCM Audio

Wireless Video Compression

Compressed

Timecode Support

Yes

Power

DC Input Power

6 to 18 VDC

Battery Type

Transmitter/Receiver: 1x L-Series (Interchangeable Mount)

Power Consumption

Transmitter/Receiver: 11 W

Mounting

Mounting

Cold Shoe

Environmental

Environmental Protection

No

Certifications

CE, FCC

Operating Temperature

22 to 77°F / -10 to 45°C

General

Dimensions

Transmitter: 5 x 3.4 x 1" / 127 x 87 x 26 mm

Receiver: 8.4 x 5.3 x 2" / 213 x 135 x 51 mm

Weight

Transmitter: 12.3 oz / 350 g, Excluding Antenna

Receiver: 1.6 lb / 727 g, Excluding Antenna

Packaging Info

Package Weight

13.245 lb

Box Dimensions (LxWxH)

18 x 15.2 x 9.7"

In the Box

DJI Transmission (High-Bright Monitor Combo)
